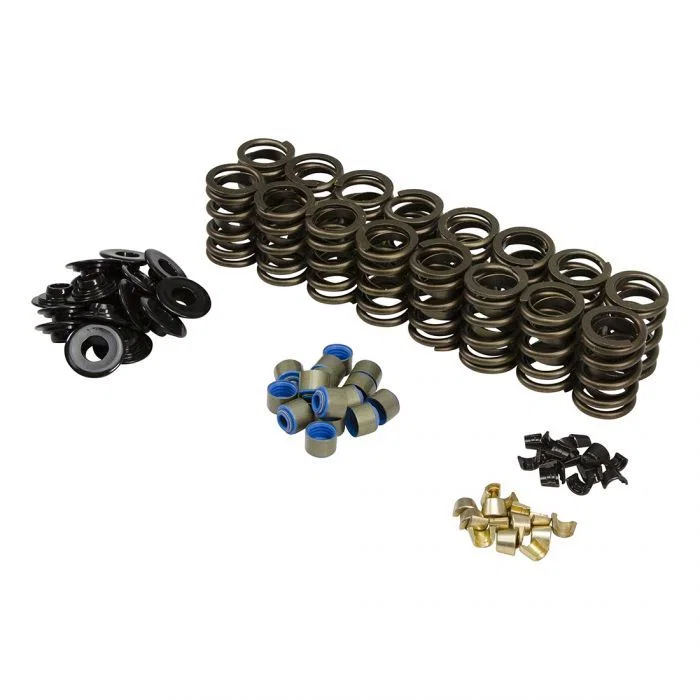

COMP Cams Valve Spring Kit for Ford GT40 / GT40P Cylinder Head
Part # GT40CS-KITSKU COMGT40CS-KIT
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring Kit |
| Damper Spring Included | Yes |
| Inside Diameter | 1.052 in |
| Inside Diameter of Outer Spring (in) | 1.052 |
| Installed Height | 1.8 in |
| Installed Height (in) | 1.8 |
| Installed Pressure | 110 PSI |
| Integrated Spring Seat | No |
| Load at Installed Height (lbs) | 110 |
| Load at Open Height (lbs) | 318 |
| Lock Style | 10 Degree |
| Machine Work Required | No |
| Maximum Coil Bind Height (in) | 1.17 |
| Number of Springs Per Valve | 1 |
| Open Height (in) | 1.3 |
| Open Pressure | 318 PSI |
| Outside Diameter | 1.486 in |
| Outside Diameter of Outer Spring (in) | 1.486 |
| Recommended Max Lift (in) | 0.57 |
| Retainer Material | Chromoly |
| Spring Rate (lbs/in) | 416 |
| Spring Type | Single Spring |
| Valve Spring Finish | Raw |
| Valve Spring Style | Single |
| Valve Stem Diameter (in) | 11/32 |
| Valve Stem Seal Material | Viton |
| Valve Stem Seal Type | Positive Stop |
| UPC / GTIN | 00036584419884 |
- Drop-in valve spring kit for Ford GT40 & GT40P Cylinder Heads
- No machining required
- Includes 8 standard and 8 +.050 locks to achieve correct installed height with factory staggered valve tip lengths
- Includes metal body
- Viton valve stem seals
- -.570" max lift
Description
COMP Cams GT40 Valve Spring Kit is designed to maximize the potential of GT40 and GT40P Cylinder Heads when using a flat tappet camshaft. This kit allows up to .570" lift and provides spring rates that can handle significantly more aggressive lobe profiles. This kit has been developed to make your valve train upgrade as easy as possible by combining quality components in a package that does not require any machining! These components will drop right onto stock GT40& GT40P cylinder heads.
