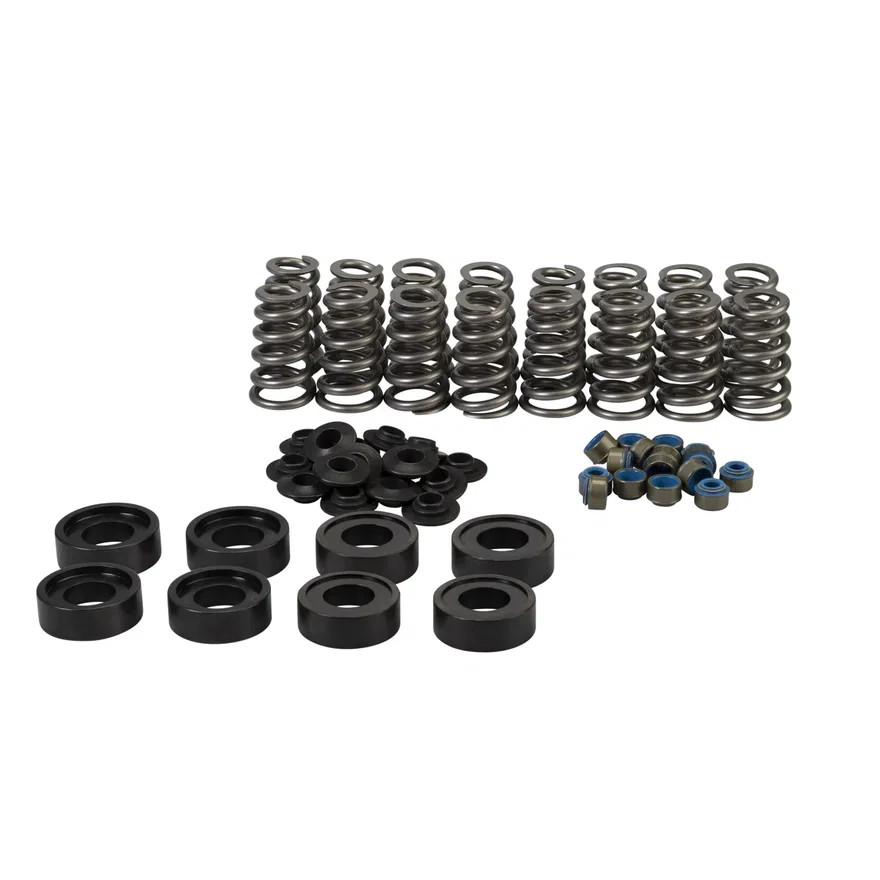

COMP Cams Conical Valve Spring Kit for Ford 7.3L Godzilla Engine
Part # 7230GCS-KITSKU COM7230GCS-KIT
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring Kit |
| Bottom Inside Diameter of Outer Spring | .932 in |
| Bottom Outside Diameter of Outer Spring | 1.332 in |
| Installed Height | 1.900 in |
| Load at Installed Height | 145 lb |
| Load at Open Height | 496 lb |
| Lock Style | 7 deg |
| Machine Work Required | No |
| Maximum Coil Bind | 1.185 in |
| Number of Springs Per Valve | 1 |
| Open Height | 1.225 in |
| Quantity | 16 |
| Recommended Max Lift | .675 in |
| Retainer Material | Chromoly Steel |
| Spring Rate | 520 lbs/in |
| Spring Seat OD | 1.650 in |
| Top Inside Diameter of Outer Spring | .660 in |
| Top Outside Diameter of Outer Spring | 1.060 in |
| Valve Spring Finish | Superfinish |
| Valve Spring Style | Conical |
| Valve Stem Diameter | .315 in |
| UPC / GTIN | 00036584426875 |
- .675" Valve Lift
- Conical Valve Springs
Description
This new Valve Spring Kit for Ford’s 7.3L Godzilla engine utilizes COMP Cams® Conical Valve Springs to provide .675” of valve lift. The conical springs use round wire featuring a diameter and progressive pitch-driven natural frequency. This design increases the valve train RPM while reducing resonance concerns and decreasing dy namic spring oscillations. The result is longer spring life and the ability to run a more aggressive camshaft. It utilizes chromemoly steel retainers and stock valve seals.
