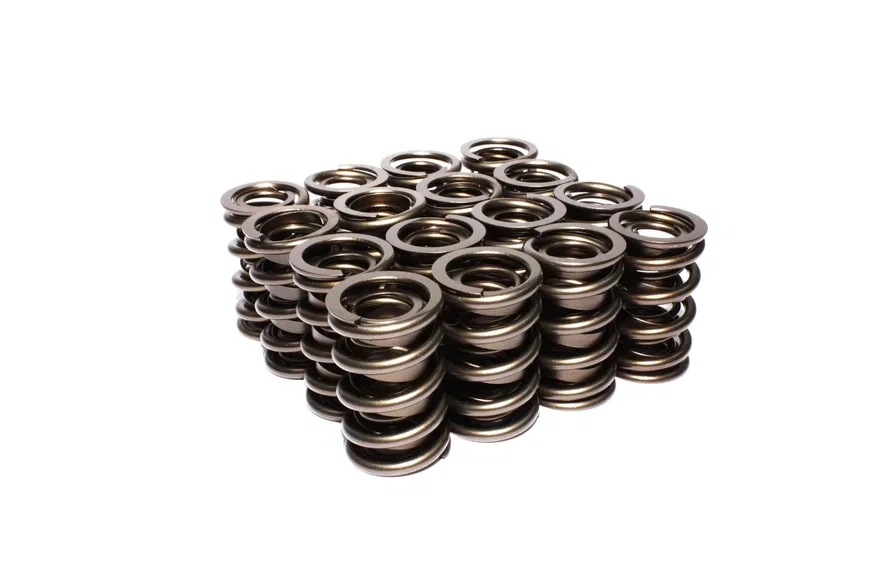

COMP Cams Dual Valve Springs with Damper, 1.555 OD, 1.950 IH, .760 Lift, 501 LBS/IN, HR

Part # 26094-16SKU COM26094-16

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Compatible .570" Guide Diameter Spring Seats4772-16
Compatible .630" Guide Diameter Spring Seats4773-16
Compatible Retainer780 Steel Retainers for 7° Locks and 3/8 Valves
Compatible Shims4757
Compatible Spring Cup (O.D. Locator)4700-16
DamperYes
ID of Inner Spring (in).812
Inner Spring Inside Diameter0.812 in
Load at Installed Height150 PSI
Load at Open Height (lbs)526 lbs/ft
Maximum Coil Bind Height (in)1.130
Number of Springs Per Valve2
Open Height1.200 in
Outer Spring Inside Diameter1.136 in
Outer Spring Outside Diameter1.555 in
Quantity16
Recommended Max Lift (in).760
Spring Rate454
Spring Rate (lbs/in)500 lbs/in
Valve Spring FinishRaw
Valve Spring StyleDual
UPC / GTIN00036584061816

Description

COMP Cams' new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is geared towards aggressive solid roller cams with up to .760" lift and race-oriented solid flat tappet setups, with an installed height of 1.950”. They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds, these valve springs are designed for many aggressive street and race applications with exceptional performance and durability.Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs.
