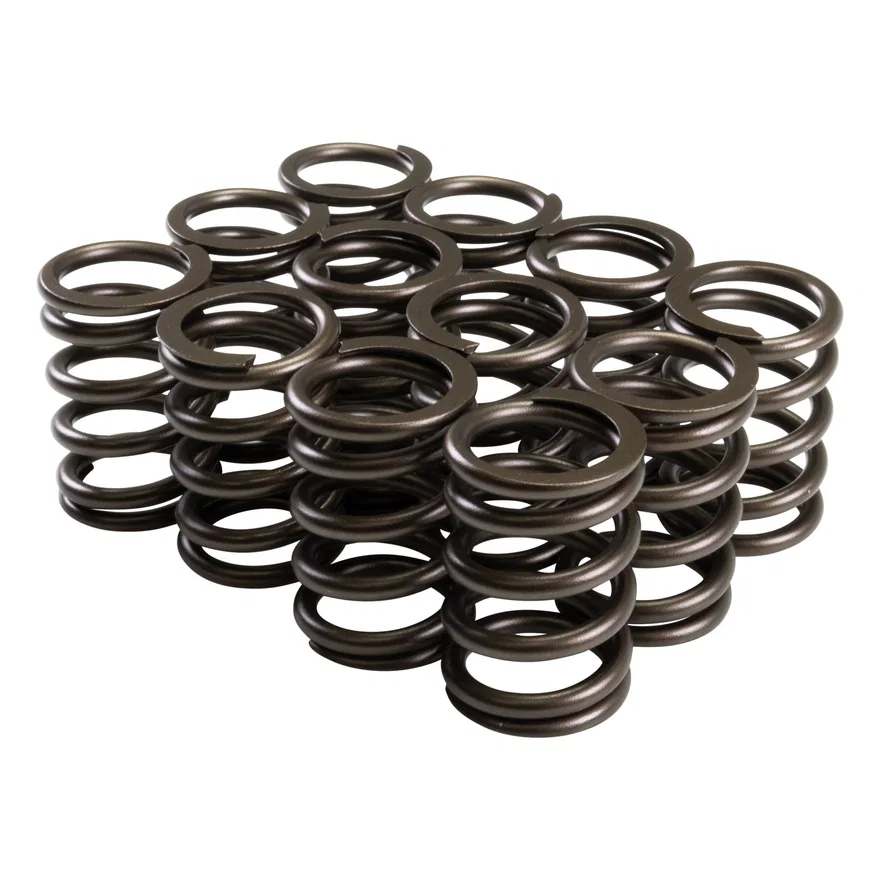

COMP Cams Single Valve Spring, 1.404 OD, 1.650 IH, .550 Lift, 300 LBS/IN

Part # 26903-12SKU COM26903-12

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Coil Bind Height1.033 in
Compatible Retainer709-12 Steel Retainers for 10° Locks and All Valves
Compatible Shims4754
Compatible spring seats4667-12 Spring Seats for .530 Guide
DamperNo
Number of Springs12
Outer Spring Inside Diameter1.020 in
Outer Spring Outside Diameter1.404 in
Recommended Max Lift (in).500
Seat Height1.650 in
Seat Pressure95 PSI
Spring Rate300
Spring TypeDual Spring
UPC / GTIN00036584000525

Description

COMP Cams' new 26903 single valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques using premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26903 valve springs are an excellent choice for many flat tappet cams in applications with limited installed height, anywhere from 1.500” to 1.700”, depending on the lift. They easily fit numerous spring pockets with a 1.404" outer diameter, offering versatility across many applications. Designed to run approximately 0.065” from bind with an open load of 260 pounds, these valve springs allow safe operation in many street hydra ulic flat tappet applications, ensuring exceptional performance and durability. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with C OMP Cams valve springs
