COMP CamsMore from COMP Cams

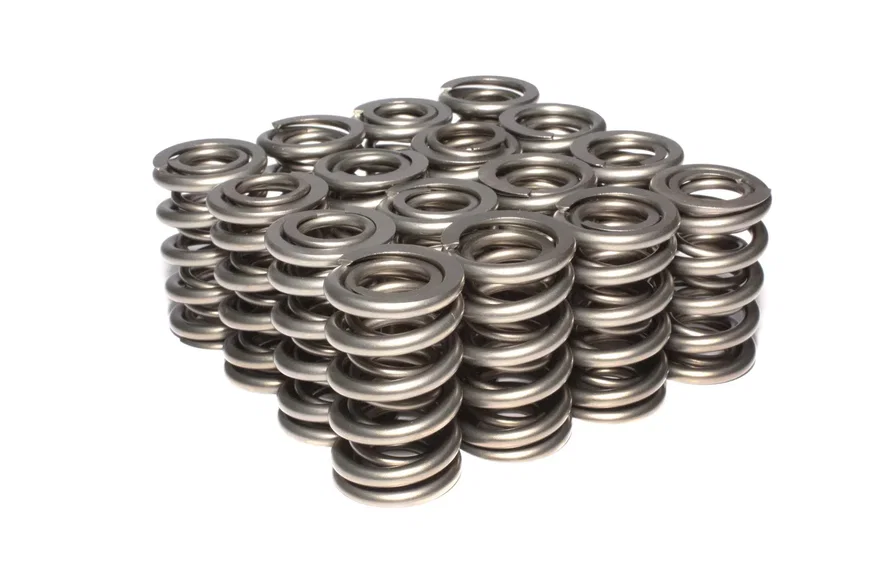

COMP Cams Race Street 1.320" OD Dual Springs; 1.835" Installed Height; 16 Springs

Part # 26926-16SKU COM26926-16

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
Amazon ASINB003HGQURG
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Coil Bind Height1.1 in
Compatible .570" Guide Diameter Spring Seats4731-16
Compatible Retainer779-16
Compatible Shims4753
Compatible Spring Cup (O.D. Locator)4709-16
DamperNo
Inner Spring Inside Diameter0.654 in
Number of Springs2
Outer Spring Inside Diameter0.92 in
Outer Spring Outside Diameter1.32 in
Seat Height1.835 in
Seat Pressure129 PSI
Spring Rate505
Valve Spring SeriesRace/Street
UPC / GTIN00036584200918

Description

COMP Cams Dual Valve Springs for street/strip Applications are manufactured from Super Clean® wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme str ess applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.
