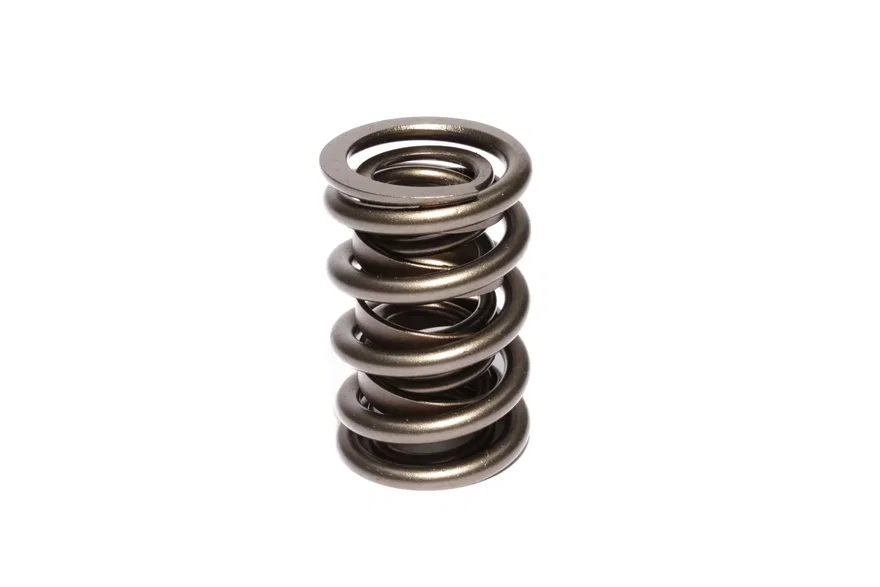

COMP Cams Race Endurance 1.564" OD Dual Spring; 1.900" Installed Height; 1 Spring
Part # 26094-1SKU COM26094-1
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring |
| Amazon ASIN | B001GBVQGY |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| Coil Bind Height | 1.2 in |
| Compatible .570" Guide Diameter Spring Seat | 4772-1 |
| Compatible .630" Guide Diameter Spring Seat | 4773-1 |
| Compatible Retainer | 749-1 |
| Compatible Shims | 4757 |
| Compatible Spring Cup (O.D. Locator) | 4700-1 |
| Damper | Yes |
| Inner Spring Inside Diameter | 0.742 in |
| Number of Springs | 2 |
| Outer Spring Inside Diameter | 1.127 in |
| Outer Spring Outside Diameter | 1.564 in |
| Seat Height | 1.9 in |
| Seat Pressure | 178 PSI |
| Spring Rate | 454 |
| Valve Spring Series | Race Endurance |
| UPC / GTIN | 00036584061809 |
Description
COMP Cams new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art Techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is Geared towards aggressive Solid Roller cams with up to .760" lift and race-oriented Solid flat tappet setups, with an installed height of 1.950". They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds, these valve springs are designed for many aggressive street and Race Applications with exceptional performance and durability. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs.
