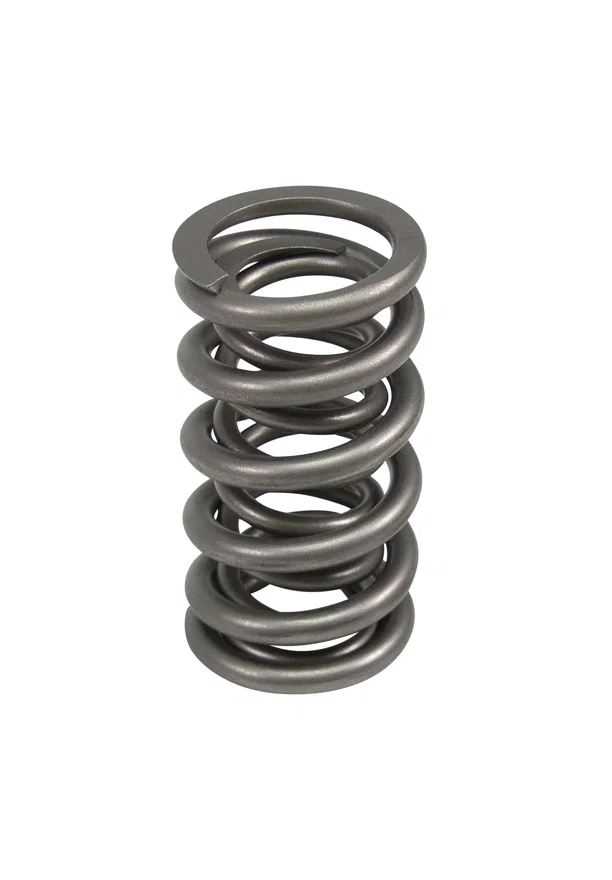

COMP Cams .700" Max Lift Dual Valve Spring for GM LS7, LT1 & LT4 Engines
Part # 26527-1SKU COM26527-1
Set your vehicle above for a fit verdict. 13 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring |
| Amazon ASIN | B07MK8RZF9 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| Coil Bind Height | 1.15 in |
| Compatible .520" Guide Diameter Spring Seat | 4695-1 |
| Compatible .570" Guide Diameter Spring Seat | 4682-1 |
| Compatible Retainer | 779-1 |
| Compatible Shims | 4753 |
| Compatible Spring Cup (O.D. Locator) | 4709-1 |
| Damper | No |
| Inner Spring Inside Diameter | 0.646 in |
| Installed Height | 1.9 in |
| Number of Springs | 2 |
| Open Load | 458 |
| Outer Spring Inside Diameter | 0.924 in |
| Outer Spring Outside Diameter | 1.301 in |
| Seat Pressure | 159 |
| Spring Rate | 427 |
| Spring Style | Dual |
| Valve Spring Series | Dual |
| UPC / GTIN | 00036584384755 |
Description
1.301" OD Dual Spring
More from COMP Cams
| 26547-1 | $142.99 |
| 26124-1 | $35.99 |
| H604-1 | $55.99 |
| 26906-1 | $16.99 |
| 26001-1 | $51.99 |
| 26987-100 | $1,136.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2016 - 2019 | Cadillac | CTS | V | 6.2L 376 V8 |
| 2014 - 2015 | Chevrolet | Camaro | Z/28 | 7.0L 427 V8 |
| 2016 | Chevrolet | Camaro | SS | 6.2L 376 V8 |
| 2017 - 2019 | Chevrolet | Camaro | SS, ZL1 | 6.2L 376 V8 |
| 2006 - 2007 | Chevrolet | Corvette | Z06 | 7.0L 427 V8 |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06, Z06 | 7.0L 427 V8 |
| 2009 - 2010 | Chevrolet | Corvette | Z06 | 7.0L 427 V8 |
| 2011 | Chevrolet | Corvette | Z06, Z06 Carbon | 7.0L 427 V8 |
| 2012 | Chevrolet | Corvette | Z06 | 7.0L 427 V8 |
| 2013 | Chevrolet | Corvette | 427, Z06 | 7.0L 427 V8 |
| 2014 | Chevrolet | Corvette | Stingray | 6.2L 376 V8 |
| 2015 - 2016 | Chevrolet | Corvette | Stingray, Z06 | 6.2L 376 V8 |
| 2017 - 2019 | Chevrolet | Corvette | Grand Sport, Stingray, Z06 | 6.2L 376 V8 |
