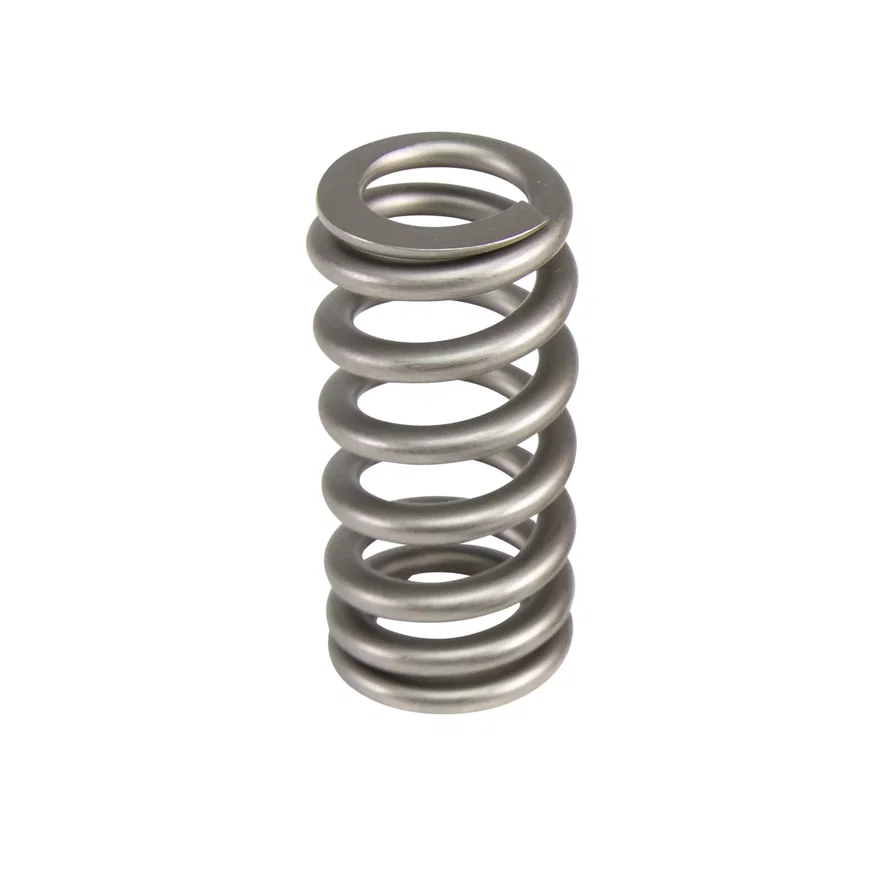

COMP Cams Beehive Valve Spring for '18+ Ford 5.0 Coyote

Part # 26001-1SKU COM26001-1

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring
Bottom Inside Diameter0.720 in
Bottom Outside Diameter1.0830 in
Coil Bind Height1.090 in
Compatible Chromemoly Steel Retainers710
Compatible LocksStock
Compatible Seals523
Compatible Spring Seat4688
Compatible Titanium Retainers702
DamperNo
Installed Height1.765 in
Max Lift0.600 in
Open Load280
Seat Pressure105
Spring Rate291
Spring StyleBeehive
Top Inside Diameter0.636 in
Valve Spring SeriesPerformance Street
UPC / GTIN00036584399452

Description

.999/1.083 OD Beehive Spring
