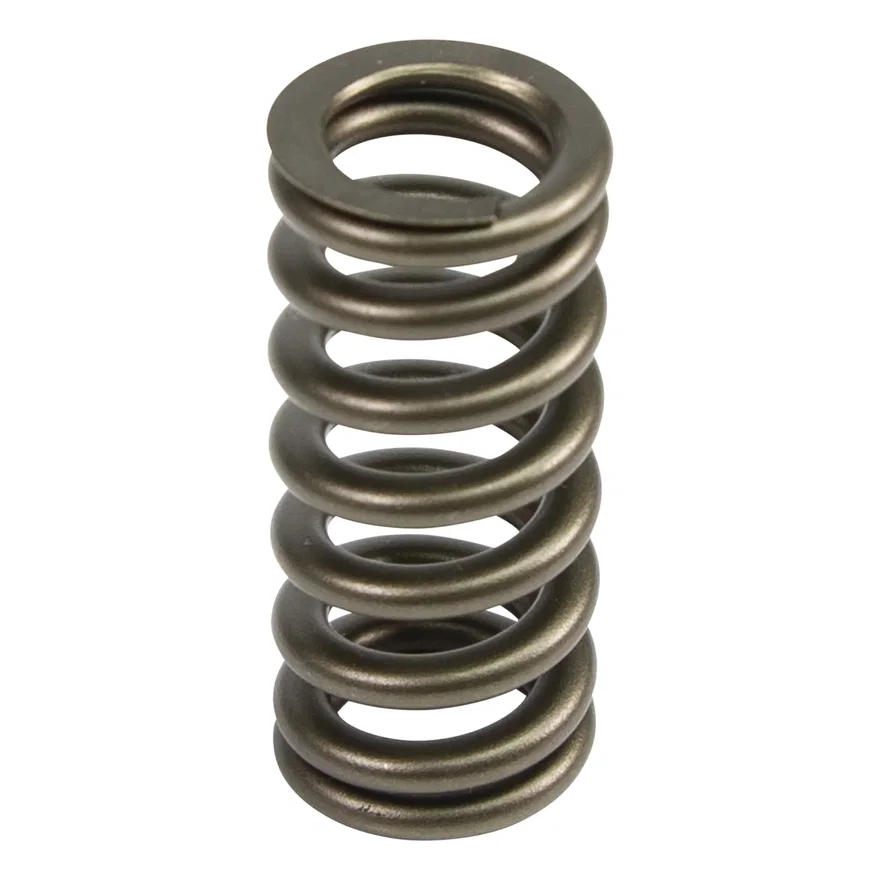

COMP Cams .515" Lift Valve Spring for Ford 6.0L/6.4L Power Stroke - Single
Part # 26124-1SKU COM26124-1
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring |
| Bottom Inside Diameter | 0.647 |
| Bottom Outside Diameter | 1.01 |
| Coil Bind Height | 1.19 |
| Compatible Shims | 4809 |
| Compatible Spring Seat / Seals | P/N 535 |
| Installed Height | 1.77 |
| Number of Springs | Single |
| Open Load | [email protected] |
| Seat Pressure | 140 |
| Spring Rate | 320 |
| Spring Style | Straight |
| Top Inside Diameter | 0.647 |
| Top Outside Diameter | 1.01 |
| UPC / GTIN | 00036584413448 |
Description
COMP Cams engineered the #26124 valve spring to have increased spring rate, as well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stresses, create additional dynamic control and help valve train reliability at elevated RPM and boost pressures. Springs are also available in sets of 32 (Part #26124-32) or as a kit with the valve Seals and shims (Part #26124-Kit)
