COMP CamsMore from COMP Cams

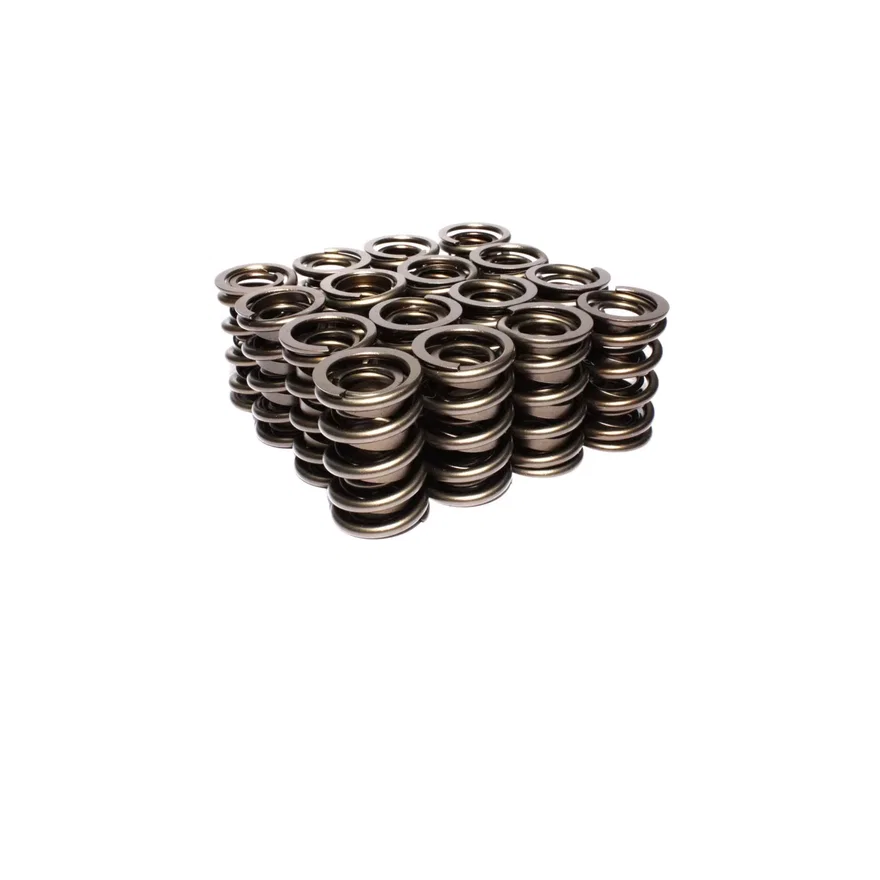

COMP Cams Race Endurance 1.551" OD Dual Springs; 1.950" Installed Height; 16 Springs

Part # 927-16SKU COM927-16

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
Amazon ASINB00062YGZ2
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Coil Bind Height1.175 in
Compatible .570" Guide Diameter Spring Seats4780-16
Compatible .630" Guide Diameter Spring Seats4780-16
Compatible Retainer732-16
Compatible Shims4757
Compatible Spring Cup (O.D. Locator)4700-16
DamperYes
Inner Spring Inside Diameter0.721 in
Number of Springs2
Outer Spring Inside Diameter1.117 in
Outer Spring Outside Diameter1.551 in
Seat Height1.95 in
Seat Pressure201 PSI
Spring Rate499
Valve Spring SeriesRace Endurance
UPC / GTIN00036584280804

Description

Dual Valve Springs from COMP Cams are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter what the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.
