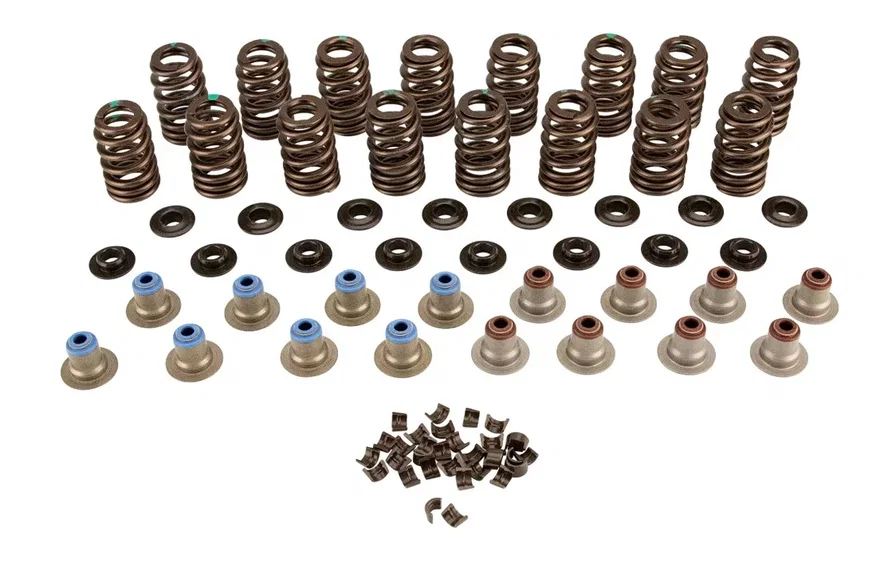

COMP Cams LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers; 0.580" Max Lift

Part # 26906CS-KITSKU COM26906CS-KIT

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Coil Bind Height1.181 in
Compatible Shims4753
Engine FitmentGM LS Cathedral and Rectangle Port Applications
Includes LocksYes
Includes RetainersYes
Includes Spring SeatsYes
Includes Valve SealsYes
Locator Inner Diameter0.510 in
Locator Outer Diameter1.300 in
Locator Thickness0.0600 in
Max Lift0.580 in
Retainer MaterialChromemoly Steel
Seat Height1.800 in
Seat Pressure92 lb
Spring Bottom Inside Diameter0.860 in
Spring Bottom Outside Diameter1.282 in
Spring Top Inside Diameter0.655 in
Spring Top Outside Diameter1.077 in
Valve Seal Outer Diameter0.600 in
Valve Seal TypeSteel Jacketed Viton
Valve Spring TypeBeehive
UPC / GTIN00036584394211

Description

The COMP Cams 0.575" " Lift Beehive LS6+ Valve Spring Kit Features:

< ul>< li>4% higher load and .030" higher lift capacity than Blue GM LS6 Springs</li>< li> Includes springs, Chromemoly retainers, valve locks, Seals, and spring seats</li></ul>
