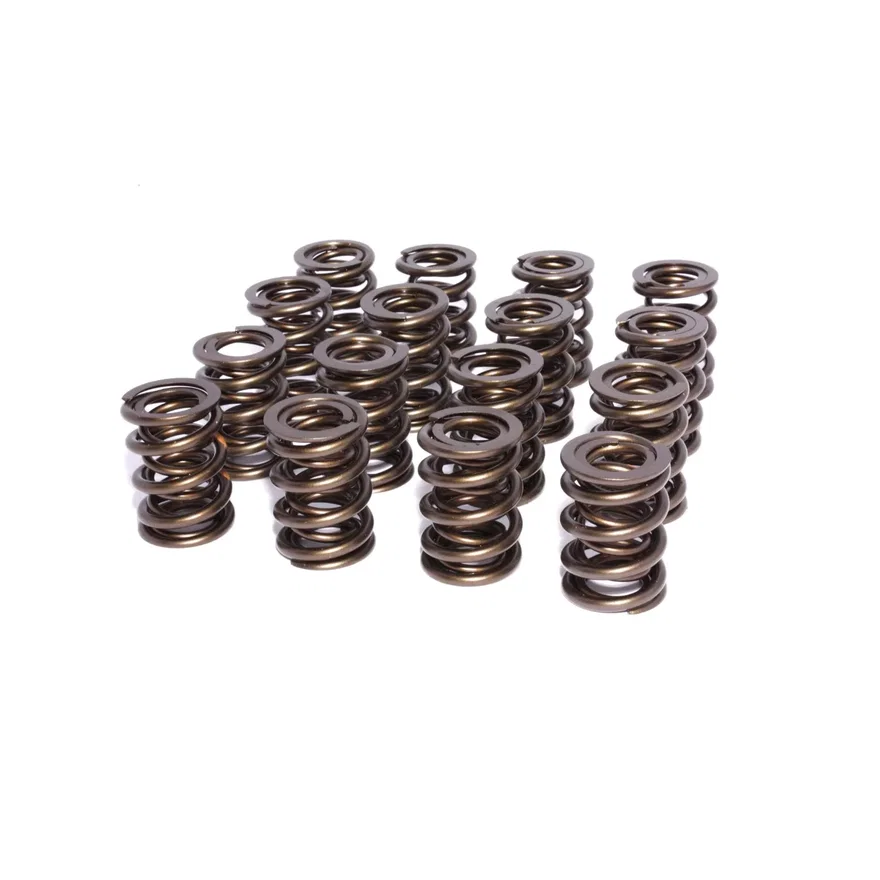

COMP Cams Engine Valve Spring Kit

Part # 916-16SKU COM916-16

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
Amazon ASINB000GBAS3C
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonNo impact on pollution output of vehicle.
Coil Bind Height0.9 in
Compatible Retainer741-16
Compatible Shims4757
Compatible Spring Cup (O.D. Locator)4700-16
DamperNo
Inner Spring Inside Diameter0.896 in
Number of Springs2
Outer Spring Inside Diameter1.166 in
Outer Spring Outside Diameter1.567 in
Seat Height1.7 in
Seat Pressure200 PSI
Spring Rate392
UPC / GTIN00036584270270

Description

COMP Cams' part number 916-16, valve springs, 1.567" 2-Spring Assembly
