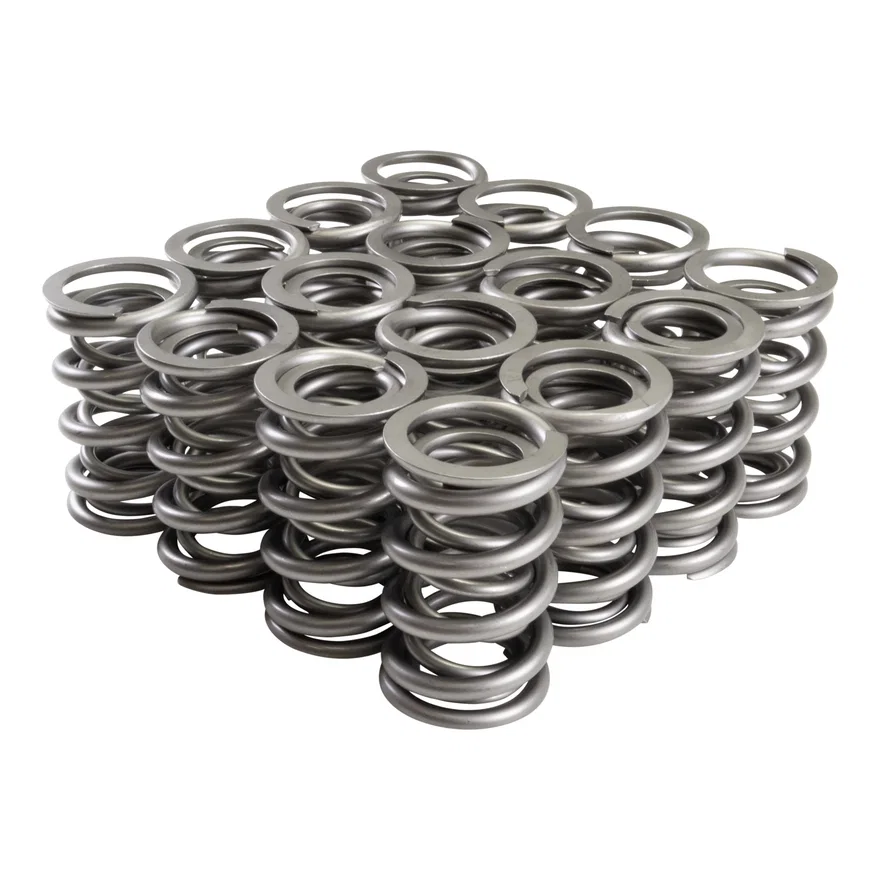

COMP Cams Dual Valve Spring 1.560 OD, 1.900 IH, .740 Lift, 550 LBS/IN, Superfinsh

Part # 26943-16SKU COM26943-16

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Valve Spring Kit
Compatible Retainers748 Steel Retainers for 10° Locks and All Valves
Compatible Seats4642 Spring Seats for .570 Guide
Compatible Shims4757 Spring Shims
Damper Spring IncludedNo
ID of Inner Spring1.137 in
Installed Height1.900 in
Load at Installed Height240 lb
Load at Open Height590 lb
Maximum Coil Bind Height1.100 in
Number of Springs Per Valve2
OD of Outer Spring1.550 in
Open Height1.200 in
Quantity16
Recommended Max Lift.740 in
Spring Rate550 lbs/in
Spring TypeDual Spring
Valve Spring FinishSuperfinish
UPC / GTIN00036584428428

Description

COMP Cams' new 26943 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, including superfinishing, they redefine reliability and consistency in the performance automotive aftermarket. The 26943 is geared towards race-oriented solid roller applications, with up to .740” lift at an installed height of 1.900”. They fit cylinder heads with at least a 1.560" spring pocket. Boasting an open load of over 600 pounds, these valve springs are designed for race applications with exceptional performance and durability. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs.
