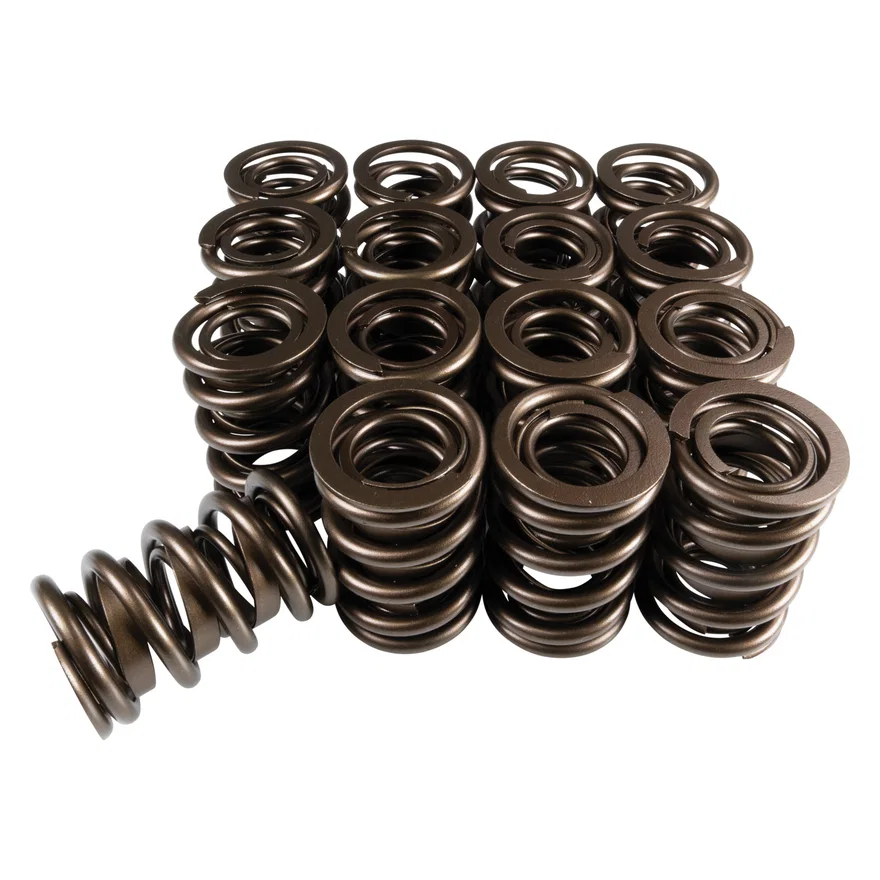

COMP Cams DUAL SPRING W/ DAMPER, 1.519 OD, 1.900 IH, .800 LIFT, 376 LBS/IN
Part # 26924-16SKU COM26924-16
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring Kit |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| Coil Bind Height | 1.040 in |
| Compatible Retainer | 780 Steel Retainers for 7° Locks and 3/8 Valves |
| Compatible Seats | 4784 Spring Seats for .570 Guide |
| Compatible Shims | 4757 |
| Compatible Spring Cup (O.D. Locator) | 4700-16 |
| Damper | Yes |
| Inner Spring Inside Diameter | 0.779 in |
| Number of Springs | 16 |
| Outer Spring Inside Diameter | 1.150 in |
| Outer Spring Outside Diameter | 1.519 in |
| Seat Height | 1.9 in |
| Seat Pressure | 120 PSI |
| Spring Rate | 376 |
| UPC / GTIN | 00036584000952 |
Description
COMP Cams' new 26924 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26924 is an excellent choice for flat tappet cams up to .600" lift or hydraulic roller cams up to .750” lift, with an installed height of 1.850”. They fit cylinder heads with at least a 1.520" spring pocket. Boasting an open load of over 420 pounds, these valve springs are geared toward hydraulic roller applications with heavy valve trains, ensuring exceptional performance and durability. The 26924 springs will service a wide variety of packages and applications. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams v alve springs.
