COMP Cams Drop-In Valve Spring Kit for Magnum 5.2L /5.9L Heads with .500" Max Lift
Part # 26986MCS-KITSKU COM26986MCS-KIT
Set your vehicle above for a fit verdict. 27 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring Kit |
| Bottom Inside Diameter of Valve Spring (in) | 1.00 |
| Bottom Outside Diameter of Valve Spring (in) | 1.415 |
| Damper Spring Included | No |
| Installed Height | 1.6 in |
| Installed Pressure | 165 PSI |
| Load at Installed Height | 165 |
| Load at Open Height (lbs) | 305 |
| Material | Steel |
| Maximum Coil Bind Height (in) | 1.060 |
| Number of Springs Per Valve | 1 |
| Open Height (in) | 1.100 |
| Open Pressure | 305 PSI |
| Quantity | 16 |
| Recommended Max Lift (in) | 0.500 |
| Spring Open Height | 1.100 in |
| Spring Rate | 280 lbs/in |
| Spring Shape | Beehive |
| Top Inside Diameter of Valve Spring (in) | 0.650 |
| Top Outside Diameter of Valve Spring (in) | 1.065 |
| Valve Spring Finish | Raw |
| Valve Spring Quantity | 16 |
| Valve Spring Style | Beehive |
| UPC / GTIN | 00036584426998 |
- No Machining Required!

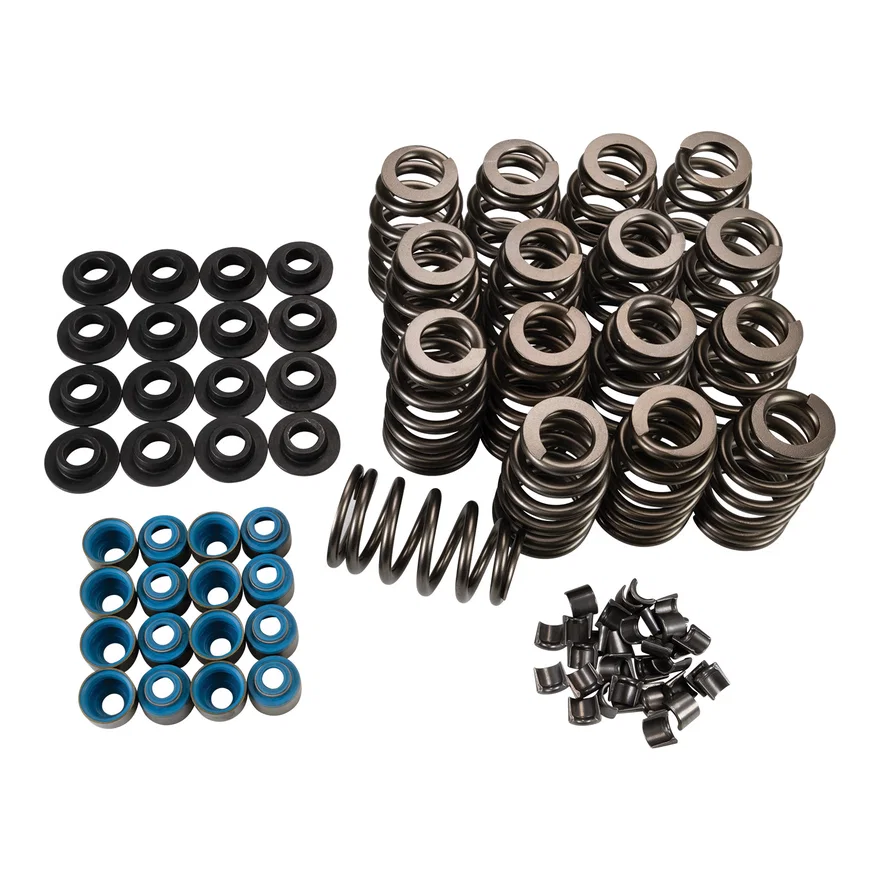

- Includes beehive springs, retainers, and metal body Viton valve seals
Description
COMP Cams Magnum 5.2L/5.9L Drop-in Valve Spring Kit is designed to maximize the potential of Magnum Cylinder Heads. Allowing up to .500" of lift, this kit provides spring rates that can handle significantly more aggressive lobe profiles. Designed to drop right onto stock Magnum 5.2L/5.9L cylinder heads, it includes beehive valve springs, retainers, and Metal-body Viton valve Seals while using stock valve locks. By combining quality components in a package that does not require any machining, the kit is developed to make your valve train upgrade as easy as possible!
More from COMP Cams
| 26906VCS-KIT | $368.99 |
| 7230GCS-KIT | $940.99 |
| 26094-16 | $497.99 |
| 26918-16 | $473.99 |
| GT40CS-KIT | $362.99 |
| 981-16 | $149.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1992 - 1997 | Dodge | Dakota | - | 5.2L 318 V8 |
| 1998 - 1999 | Dodge | Dakota | - | 5.2L 318 V8, 5.9L 360 V8 |
| 2000 - 2003 | Dodge | Dakota | - | 5.9L 360 V8 |
| 1998 - 2000 | Dodge | Durango | - | 5.2L 318 V8, 5.9L 360 V8 |
| 2001 - 2003 | Dodge | Durango | - | 5.9L 360 V8 |
| 1994 - 2001 | Dodge | Ram 1500 | - | 5.2L 318 V8, 5.9L 360 V8 |
| 2002 | Dodge | Ram 1500 | - | 5.9L 360 V8 |
| 1995 - 1996 | Dodge | Ram 1500 Van | - | 5.2L 318 V8 |
| 1998 | Dodge | Ram 1500 Van | - | 5.2L 318 V8 |
| 1999 - 2002 | Dodge | Ram 1500 Van | - | 5.2L 318 V8, 5.9L 360 V8 |
| 2003 | Dodge | Ram 1500 Van | - | 5.9L 360 V8 |
| 1994 - 2001 | Dodge | Ram 2500 | - | 5.2L 318 V8, 5.9L 359 I6, 5.9L 360 V8 |
| 2002 | Dodge | Ram 2500 | - | 5.9L 359 I6, 5.9L 360 V8 |
| 1996 - 1998 | Dodge | Ram 2500 Van | - | 5.2L 318 V8 |
| 1999 - 2002 | Dodge | Ram 2500 Van | - | 5.2L 318 V8, 5.9L 360 V8 |
| 2003 | Dodge | Ram 2500 Van | - | 5.9L 360 V8 |
| 1994 - 2002 | Dodge | Ram 3500 | - | 5.9L 359 I6, 5.9L 360 V8 |
| 1996 | Dodge | Ram 3500 Van | - | 5.2L 318 V8 |
| 1997 - 1998 | Dodge | Ram 3500 Van | - | 5.9L 360 V8 |
| 1999 - 2002 | Dodge | Ram 3500 Van | - | 5.2L 318 V8, 5.9L 360 V8 |
| 2003 | Dodge | Ram 3500 Van | - | 5.9L 360 V8 |
| 1995 - 2002 | Dodge | Ram 4000 | - | 5.9L 360 V8 |
| 1992 - 1993 | Dodge | Ramcharger | - | 5.2L 318 V8, 5.9L 360 V8 |
| 1994 - 1996 | Dodge | Ramcharger | - | 5.9L 360 V8 |
| 1999 - 2001 | Dodge | Ramcharger | - | 5.9L 360 V8 |
| 1993 - 1997 | Jeep | Grand Cherokee | - | 5.2L 318 V8 |
| 1998 | Jeep | Grand Cherokee | 5.9 Limited | 5.2L 318 V8, 5.9L 360 V8 |
