COMP Cams .515" Lift Valve Spring Kit for Ford 6.0L/6.4L Power Stroke
Part # 26124-KITSKU COM26124-KIT
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring Kit |
| Coil Bind Height | 1.19 |
| Includes Retainers? | No |
| Includes Seats? | Yes |
| Includes Shims? | Yes |
| Inside Diameter | .647 in |
| Installed Height | 1.77 |
| Max Lift | .515 |
| Number of Springs | Single |
| Open Load | [email protected] |
| Outside Diameter | 1.010 in |
| Seat Pressure | 140 |
| Spring Rate | 320 |
| Spring Seat Type | I.D. Locator |
| Spring Style | Straight |
| UPC / GTIN | 00036584412632 |
- Increased spring rate
- Higher seat load for much better dynamic stability. Unique ovate spring wire to better manage operation stresses & create additional dynamic control to help valve train reliability at elevated RPM and boost pressures.
Description

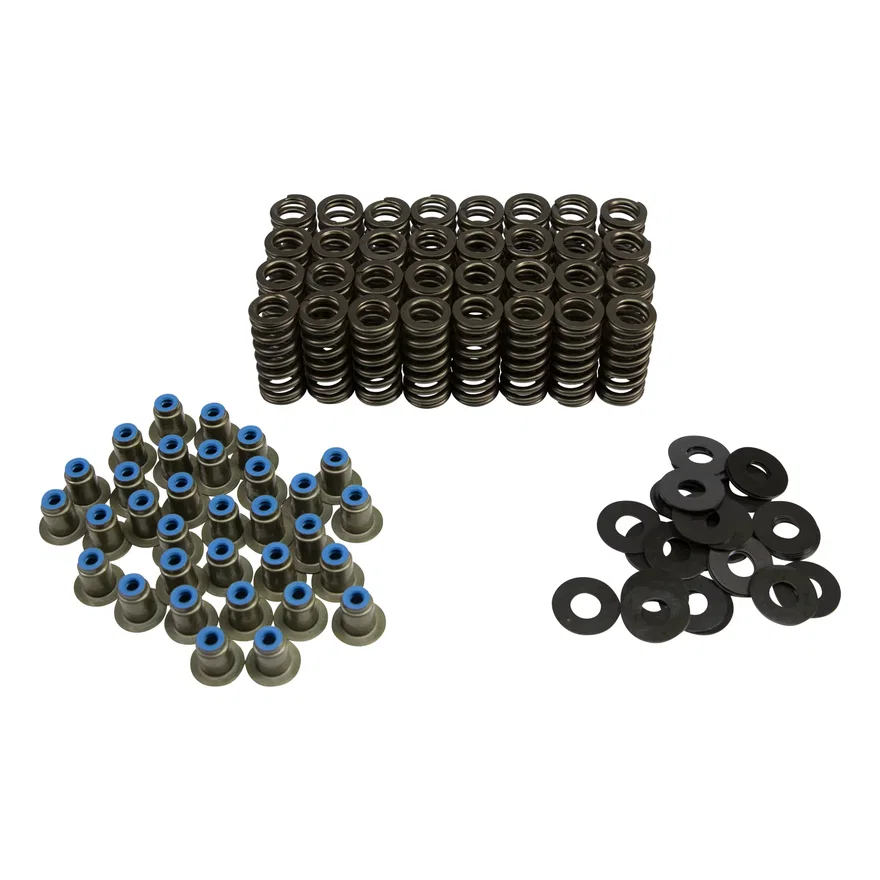

COMP Cams engineered the #26124 valve springs to have increased spring rate, as well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stresses, create additional dynamic control and help valve train reliability at elevated RPM and boost pressures. The spring kit includes the COMP Cams Part #26124 Ovate Wire Valve Springs, #535 valve Seals and #4809 shims while making use of your stock retainers. Springs are also available as a set of 32 pieces or in single units without the valve Seals and shims.
