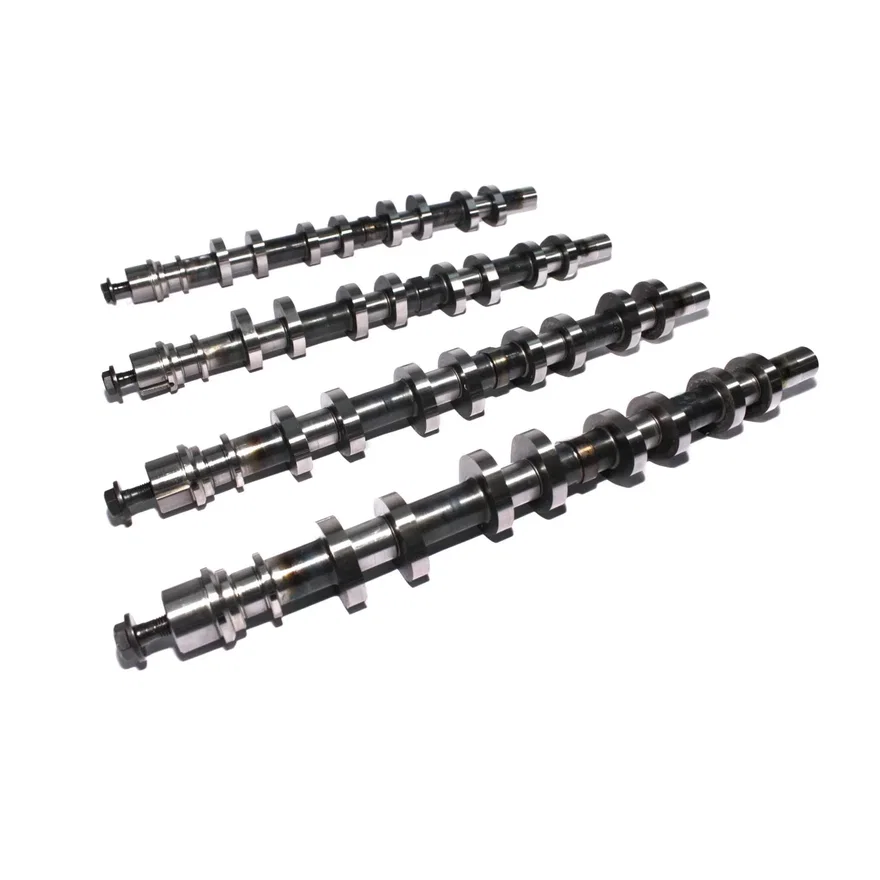

COMP Cams Xtreme RPM 226/222 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve
Part # 106100SKU COM106100
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 257 deg |
| Advertised Intake Duration | 261 deg |
| Amazon ASIN | B001G771J4 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,200-5,400 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme RPM |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 222 deg |
| Exhaust Valve Lift | 0.425 in |
| Grind Number | XE262AH-114 |
| Intake Duration at .050 Inch Lift | 226 deg |
| Intake Valve Lift | 0.425 in |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 114 deg |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584096399 |
Description
Xtreme RPM 226/222 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8L Modular 4 Valve Xtreme RPM 226/222 Hydraulic Roller Finger Follower Finger Follower. Great street performance with excellent torque and horsepower gains with a noticeable idle. Requires custom tuning.
