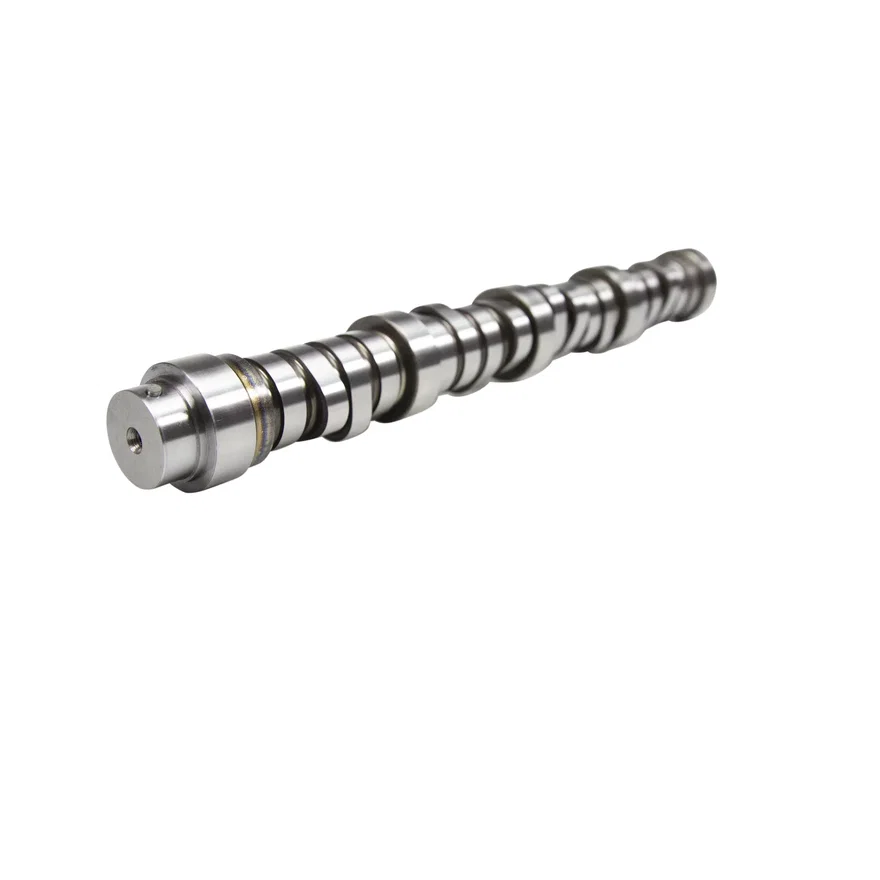

COMP Cams Stage 2 LST NSR 188/206 Hydraulic Roller Cam

Part # 435-301-13SKU COM435-301-13

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Camshaft
Advertised Exhaust Duration274 deg
Advertised Intake Duration251 deg
Assembly Lubricant IncludedNo
Basic Operating RPM Range1,200-4,500 RPM
Cam TypeHydraulic Roller
Camshaft MaterialBillet Steel
Camshaft SeriesLST NSR
Computer Tune Required?Yes
Engine Family2003-2010 Ford Powerstroke 6.0/6.4L Diesel
Exhaust Duration at .050 inch Lift206 deg
Exhaust Valve Lift0.384 in
Grind Number252NSR
Intake Duration at .050 Inch Lift188 deg
Intake Valve Lift0.39 in
Lifter StyleHydraulic Roller
Lifters IncludedNo
Lobe Separation107 deg
UsageStreet/Strip
UPC / GTIN00036584409052

Description

Stage 2 LST NSR Hydraulic Roller Cam
