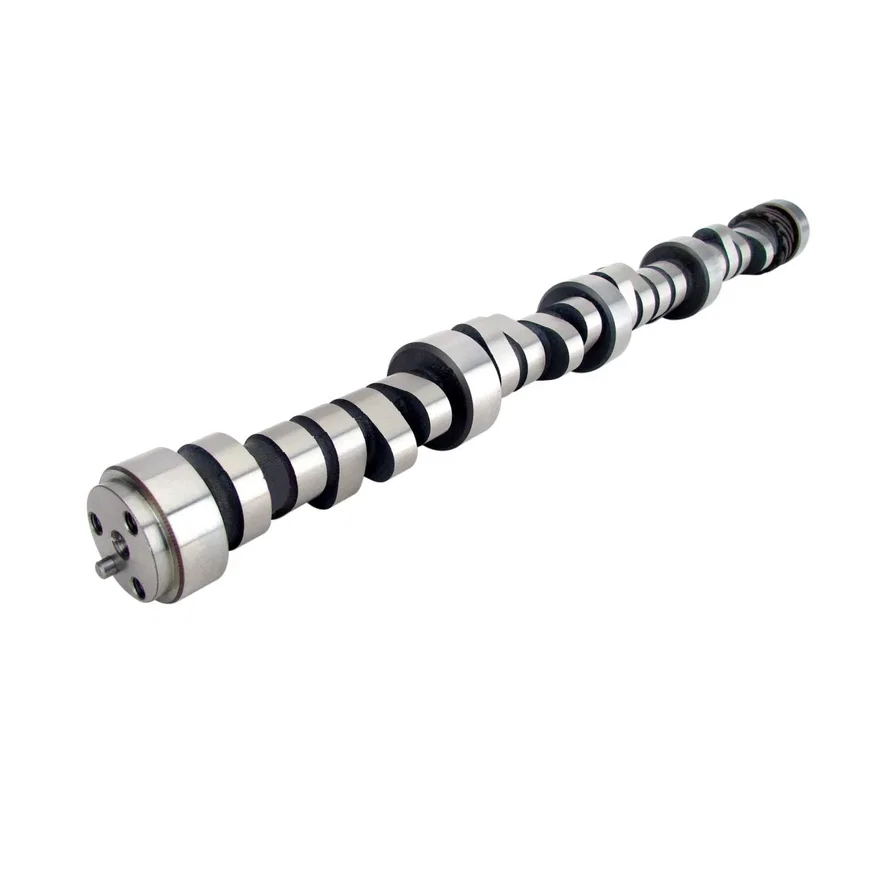

COMP Cams Xtreme Marine EFI 235/243 Hydraulic Roller Cam for Chevrolet Big Block GEN VI
Part # 01-446-11SKU COM01-446-11
Set your vehicle above for a fit verdict. 28 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 297 deg |
| Advertised Intake Duration | 289 deg |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,500-6,000 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme Marine EFI |
| Engine Family | Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999) |
| Exhaust Duration at .050 inch Lift | 243 deg |
| Exhaust Valve Lift | 0.627 in |
| Grind Number | XM289HR-14 |
| Intake Duration at .050 Inch Lift | 235 deg |
| Intake Valve Lift | 0.61 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 114 deg |
| Usage | Marine |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584262855 |
Description
Xtreme Marine EFI 235/243 Hydraulic Roller Cam
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 112-700-11 | $973.99 |
| 435-300-13 | $1,476.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1996 - 1997 | Chevrolet | C2500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | C2500 | Cheyenne, Silverado, WT | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | C2500 | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | C2500 Suburban | Base, LS, LT | 7.4L 454 V8 |
| 1998 - 1999 | Chevrolet | C2500 Suburban | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | C3500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | C3500 | Cheyenne, Silverado | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | C3500 | Base, LS | 7.4L 454 V8 |
| 1996 - 2000 | Chevrolet | Express 3500 | Base, LS | 7.4L 454 V8 |
| 1996 | Chevrolet | G30 | Beauville, Chevy Van, Hi-Cube, Sportvan | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | K2500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | K2500 | Cheyenne, Silverado, WT | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | K2500 | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | K2500 Suburban | Base, LS, LT | 7.4L 454 V8 |
| 1998 - 1999 | Chevrolet | K2500 Suburban | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | K3500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | K3500 | Cheyenne, Silverado | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | K3500 | Base, LS | 7.4L 454 V8 |
| 1996 - 1999 | Chevrolet | P30 | Base | 7.4L 454 V8 |
| 1996 - 2000 | GMC | C2500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 - 1999 | GMC | C2500 Suburban | Base, SLE, SLT | 7.4L 454 V8 |
| 1996 - 2000 | GMC | C3500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 | GMC | G3500 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 7.4L 454 V8 |
| 1996 - 2000 | GMC | K2500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 - 1999 | GMC | K2500 Suburban | Base, SLE, SLT | 7.4L 454 V8 |
| 1996 - 2000 | GMC | K3500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 - 1999 | GMC | P3500 | Base | 7.4L 454 V8 |
| 1996 - 2000 | GMC | Savana 3500 | Base, SLE | 7.4L 454 V8 |
