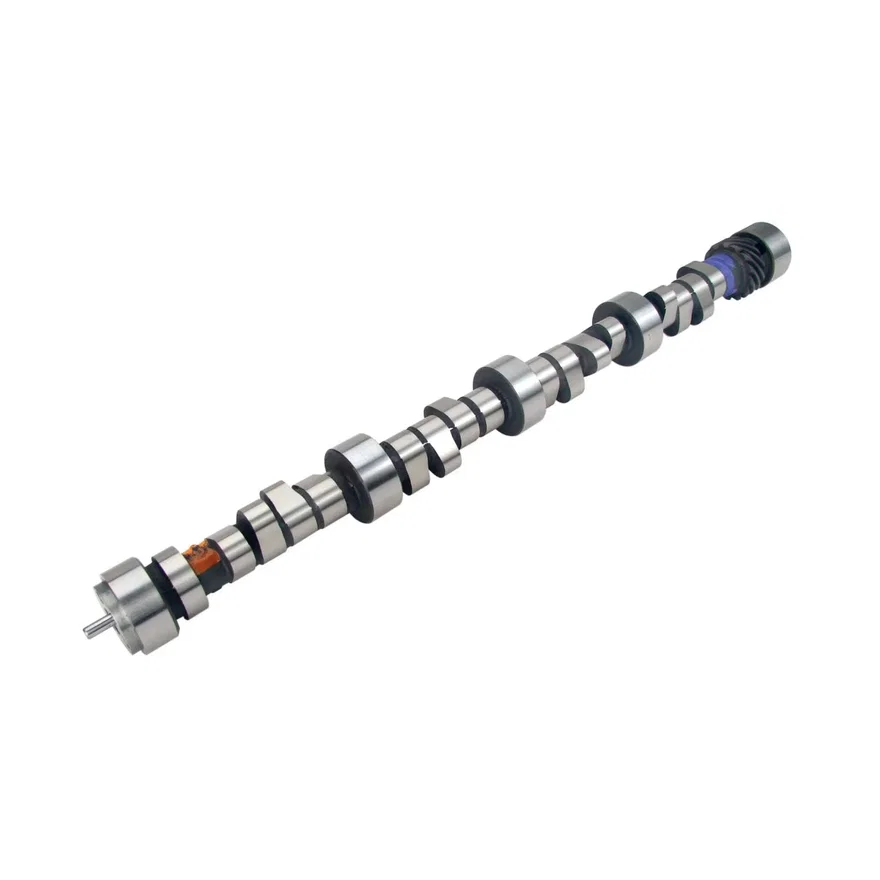

COMP Cams Xtreme Energy 218/224 Hydraulic Roller Cam for GM LT1/LT4
Part # 07-502-8SKU COM07-502-8
Set your vehicle above for a fit verdict. 22 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 276 deg |
| Advertised Intake Duration | 269 deg |
| Amazon ASIN | B000VTWY5Y |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,500-5,500 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy |
| Engine Family | GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| Exhaust Duration at .050 inch Lift | 224 deg |
| Exhaust Valve Lift | 0.503 in |
| Grind Number | 269HR-12 |
| Intake Duration at .050 Inch Lift | 218 deg |
| Intake Valve Lift | 0.495 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 112 deg |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584063230 |
Description
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1994 - 1996 | Buick | Commercial Chassis | Base | 5.7L 350 V8 |
| 1994 - 1995 | Buick | Roadmaster | Base, Estate Wagon, Limited | 5.7L 350 V8 |
| 1996 | Buick | Roadmaster | Collector's Edition, Estate Wagon Collector's Edition, Limited Collector's Edition | 5.7L 350 V8 |
| 1994 - 1996 | Cadillac | Commercial Chassis | Base, Brougham | 5.7L 350 V8 |
| 1994 - 1996 | Cadillac | Fleetwood | Base, Brougham | 5.7L 350 V8 |
| 1992 | Chevrolet | Camaro | Z28, Z28 Heritage Edition | 5.7L 350 V8 |
| 1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car, Z28 | 5.7L 350 V8 |
| 1994 - 1997 | Chevrolet | Camaro | Z28 | 5.7L 350 V8 |
| 1994 | Chevrolet | Caprice | Classic, Classic LS | 4.3L 265 V8, 5.7L 350 V8 |
| 1995 - 1996 | Chevrolet | Caprice | Classic | 4.3L 265 V8, 5.7L 350 V8 |
| 1994 | Chevrolet | Commercial Chassis | Base | 5.7L 350 V8 |
| 1992 | Chevrolet | Corvette | Base | 5.7L 350 V8 |
| 1993 | Chevrolet | Corvette | 40th Anniversary Edition, Base | 5.7L 350 V8 |
| 1994 | Chevrolet | Corvette | Base | 5.7L 350 V8 |
| 1995 | Chevrolet | Corvette | Base, Indianapolis 500 Pace Car | 5.7L 350 V8 |
| 1996 | Chevrolet | Corvette | Base, Collector's Edition, Grand Sport | 5.7L 350 V8 |
| 1994 - 1996 | Chevrolet | Impala | SS | 5.7L 350 V8 |
| 1993 | Excalibur | Limited | Base | 5.7L 350 V8 |
| 1992 | Pontiac | Firebird | Formula, Trans Am, Trans Am GTA | 5.7L 350 V8 |
| 1993 | Pontiac | Firebird | Formula, Trans Am | 5.7L 350 V8 |
| 1994 | Pontiac | Firebird | Formula, Trans Am, Trans Am GT | 5.7L 350 V8 |
| 1995 - 1997 | Pontiac | Firebird | Formula, Trans Am | 5.7L 350 V8 |
