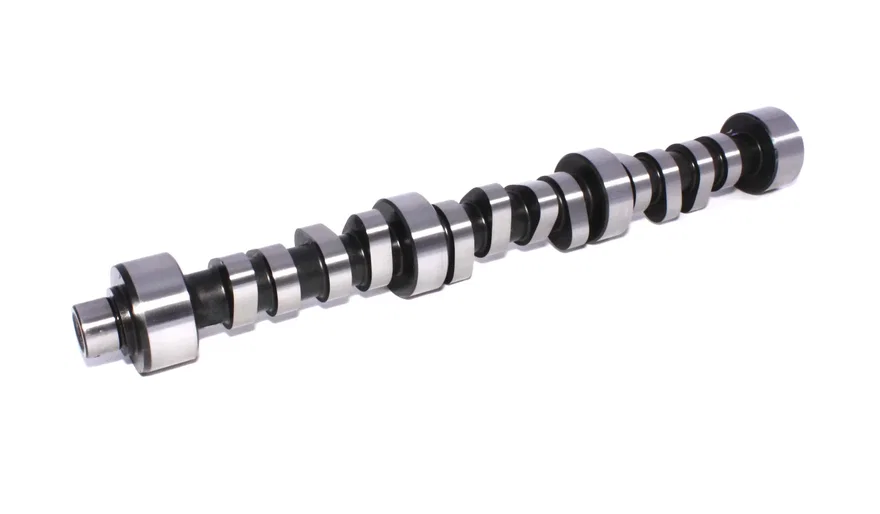

COMP Cams Xtreme Energy 201/205 Hydraulic Roller Cam for GM 3800/3.8L V6
Part # 76-801-9SKU COM76-801-9
Set your vehicle above for a fit verdict. 36 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 262 deg |
| Advertised Intake Duration | 255 deg |
| Amazon ASIN | B000P59C4A |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,000-5,500 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam and Lifter Kit Upgrade | CL76-801-9 |
| Cam Type | Hydraulic Roller |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme Energy |
| Engine Family | GM 3800/3.8L 6 Cylinder (1996+) |
| Exhaust Duration at .050 inch Lift | 205 deg |
| Exhaust Valve Lift | 0.48 in |
| Grind Number | 255 HR12 |
| Intake Duration at .050 Inch Lift | 201 deg |
| Intake Valve Lift | 0.496 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 112 deg |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584066545 |
Description
Naturally Aspirated Performance Cam - Best with Intake Improvements - Must Replace Springs.
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1996 - 2005 | Buick | LeSabre | Custom, Limited | 3.8L 231 V6 |
| 1996 - 2005 | Buick | Park Avenue | Base, Ultra | 3.8L 231 V6 |
| 1996 | Buick | Regal | Custom, Gran Sport, Limited, Olympic Gold Edition | 3.8L 231 V6 |
| 1997 | Buick | Regal | GS, LS | 3.8L 231 V6 |
| 1998 | Buick | Regal | 25th Anniversary Edition, GS, LS | 3.8L 231 V6 |
| 1999 | Buick | Regal | GS, LS | 3.8L 231 V6 |
| 2000 | Buick | Regal | GS, GSE, LS, LSE | 3.8L 231 V6 |
| 2001 - 2004 | Buick | Regal | GS, LS | 3.8L 231 V6 |
| 1996 - 1999 | Buick | Riviera | Base | 3.8L 231 V6 |
| 1996 - 1997 | Chevrolet | Camaro | Base, RS | 3.8L 231 V6 |
| 1998 - 2002 | Chevrolet | Camaro | Base | 3.8L 231 V6 |
| 2000 - 2002 | Chevrolet | Impala | Base, LS | 3.8L 231 V6 |
| 2003 | Chevrolet | Impala | Base, LS, LS Sport | 3.8L 231 V6 |
| 2004 - 2005 | Chevrolet | Impala | Base, LS, SS | 3.8L 231 V6 |
| 1998 | Chevrolet | Lumina | LS, LTZ | 3.8L 231 V6 |
| 1999 | Chevrolet | Lumina | Base, LS, LTZ | 3.8L 231 V6 |
| 1998 | Chevrolet | Monte Carlo | Z34 | 3.8L 231 V6 |
| 1999 | Chevrolet | Monte Carlo | Indianapolis 500 Pace Car, LS, Z34 | 3.8L 231 V6 |
| 2000 - 2001 | Chevrolet | Monte Carlo | SS | 3.8L 231 V6 |
| 2002 | Chevrolet | Monte Carlo | SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition | 3.8L 231 V6 |
| 2003 | Chevrolet | Monte Carlo | SS, SS High Sport, SS Pace Car | 3.8L 231 V6 |
| 2004 | Chevrolet | Monte Carlo | SS | 3.8L 231 V6 |
| 2005 | Chevrolet | Monte Carlo | LT, SS | 3.8L 231 V6 |
| 1996 - 1998 | Oldsmobile | 88 | Royale, Royale LS | 3.8L 231 V6 |
| 1999 | Oldsmobile | 88 | 50th Anniversary Edition, Royale, Royale LS | 3.8L 231 V6 |
| 1996 | Oldsmobile | 98 | Regency Elite | 3.8L 231 V6 |
| 1998 | Oldsmobile | Intrigue | Base, GL, GLS | 3.8L 231 V6 |
| 1999 | Oldsmobile | Intrigue | GL, GLS, GX | 3.8L 231 V6 |
| 1996 - 1999 | Oldsmobile | LSS | Base | 3.8L 231 V6 |
| 1997 - 1998 | Oldsmobile | Regency | Base | 3.8L 231 V6 |
| 1996 - 1999 | Pontiac | Bonneville | SE, SSE, SSEi | 3.8L 231 V6 |
| 2000 - 2003 | Pontiac | Bonneville | SE, SLE, SSEi | 3.8L 231 V6 |
| 2004 - 2005 | Pontiac | Bonneville | SE, SLE | 3.8L 231 V6 |
| 1996 - 2002 | Pontiac | Firebird | Base | 3.8L 231 V6 |
| 1997 - 2002 | Pontiac | Grand Prix | GT, GTP, SE | 3.8L 231 V6 |
| 2003 | Pontiac | Grand Prix | GT, GTP | 3.8L 231 V6 |
