COMP CamsMore from COMP Cams

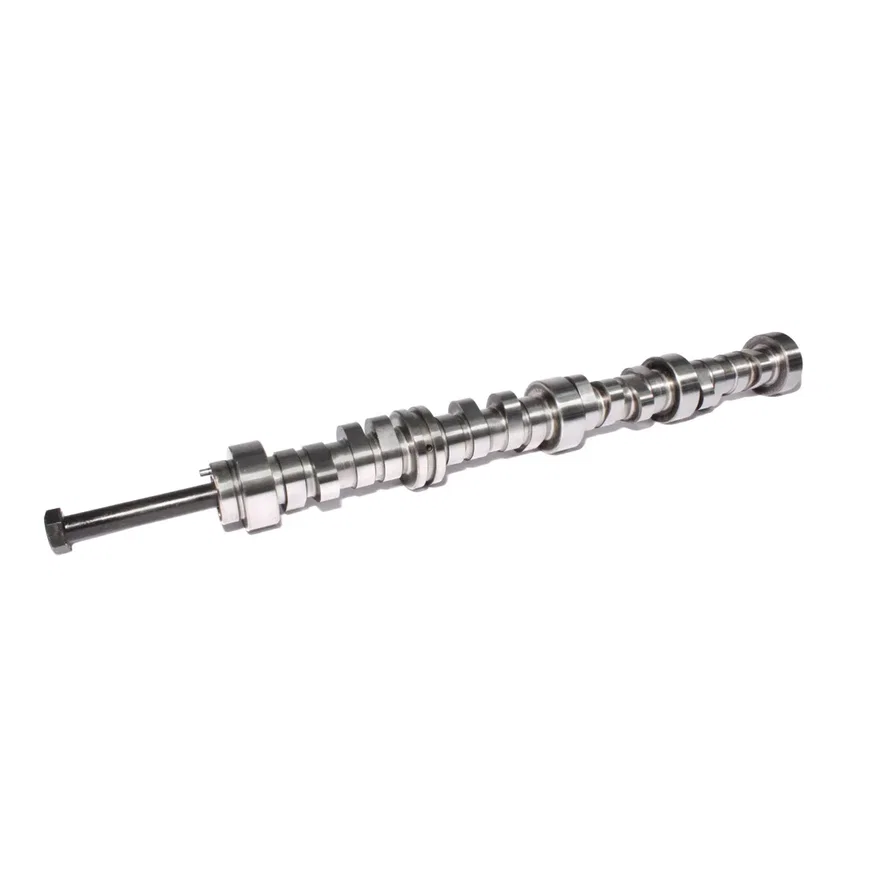

COMP Cams XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV w/ VVT

Part # 189-400-13SKU COM189-400-13

Set your vehicle above for a fit verdict. 76 vehicles listed below.

Specifications
BrandCOMP Cams
Part typeEngine Camshaft
Advertised Exhaust Duration277 deg
Advertised Intake Duration263 deg
Amazon ASINB0066T2CZK
Assembly Lubricant IncludedNo
Basic Operating RPM Range1,500-6,600 RPM
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
Cam TypeHydraulic Roller
Camshaft Gear Attachment1-Bolt
Camshaft MaterialBillet Steel
Camshaft SeriesXFI RPM Hi-Lift
Engine FamilyGM LS GEN IV Single Bolt w/ VVT (12606358) and w/o AFM 8 Cylinder (2008-2015)
Exhaust Duration at .050 inch Lift224 deg
Exhaust Valve Lift0.568 in
Grind Number263PIIHR14
Intake Duration at .050 Inch Lift210 deg
Intake Valve Lift0.556 in
Lifter TypeHydraulic Roller
Lifters IncludedNo
Lobe Separation114 deg
UsageStreet/Strip
Valve Springs RequiredYes
UPC / GTIN00036584238102

Description

XFI RPM HI-Lift 210/224 Hydraulic Roller Cam

405-205-17Stage 3 Hydraulic Roller Cam$1,062.99
405-201-17Godzilla Stage 1 NSR/NTR Hydraulic Roller$1,062.99
201-330-17HRT Turbo Stage 1 Hydraulic Roller Camshaft for '09+ Dodge 5.7/6.4L HEMI$1,017.99
435-300-13Stage 1 LST 180/198 Hydraulic Roller Cam$1,476.99
112-700-11Thumpr NSR Cam for Dodge Non-VVT 5.7/6.1L HEMI$973.99
435-301-13Stage 2 LST NSR 188/206 Hydraulic Roller Cam$1,476.99

Fits these vehicles 76

YearMakeModelSubmodelEngine
2008 - 2009CadillacEscaladeBase, Platinum6.2L 376 V8
2010CadillacEscaladeBase, Hybrid, Hybrid Platinum, Platinum6.0L 364 V8, 6.2L 376 V8
2011 - 2013CadillacEscaladeBase, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium6.0L 364 V8, 6.2L 376 V8
2014CadillacEscaladeBase, Luxury, Platinum, Premium6.2L 376 V8
2015CadillacEscaladePlatinum, Premium6.2L 376 V8
2016CadillacEscaladePlatinum6.2L 376 V8
2008 - 2010CadillacEscalade ESVBase, Platinum6.2L 376 V8
2011 - 2014CadillacEscalade ESVBase, Luxury, Platinum, Premium6.2L 376 V8
2015CadillacEscalade ESVPlatinum, Premium6.2L 376 V8
2008 - 2010CadillacEscalade EXTBase6.2L 376 V8
2011 - 2013CadillacEscalade EXTBase, Luxury, Premium6.2L 376 V8
2008 - 2009ChevroletAvalancheBase, LS, LT, LTZ5.3L 325 V8
2010ChevroletAvalancheBase5.3L 325 V8
2011 - 2012ChevroletAvalancheLS, LT, LTZ5.3L 325 V8
2013ChevroletAvalancheBlack Diamond LS, Black Diamond LT, Black Diamond LTZ5.3L 325 V8
2010 - 2015ChevroletCamaroSS6.2L 376 V8
2010 - 2012ChevroletColoradoLT5.3L 325 V8
2008 - 2014ChevroletExpress 1500Base, LS, LT5.3L 325 V8
2010 - 2017ChevroletExpress 2500Base, LS, LT4.8L 294 V8, 6.0L 364 V8
2018 - 2019ChevroletExpress 2500Base, LS, LT6.0L 364 V8
2010 - 2017ChevroletExpress 3500Base, LS, LT4.8L 294 V8, 6.0L 364 V8
2018 - 2019ChevroletExpress 3500Base, LS, LT6.0L 364 V8
2017ChevroletExpress CargoLS6.0L 364 V8
2017 - 2018ChevroletExpress PasajerosLS6.0L 364 V8
2016 - 2017ChevroletLCF 3500Base6.0L 364 V8
2008ChevroletSilverado 1500LT, LTZ, WT5.3L 325 V8
2009ChevroletSilverado 1500LT, LTZ, WT5.3L 325 V8, 6.2L 376 V8
2010 - 2013ChevroletSilverado 1500Hybrid, LS, LT, LTZ, WT, XFE4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8
2010 - 2014ChevroletSilverado 2500 HDLT, LTZ, WT6.0L 364 V8
2015 - 2019ChevroletSilverado 2500 HDHigh Country, LT, LTZ, WT6.0L 364 V8
2017 - 2018ChevroletSilverado 3500Base6.0L 364 V8
2010 - 2014ChevroletSilverado 3500 HDLT, LTZ, WT6.0L 364 V8
2015 - 2019ChevroletSilverado 3500 HDHigh Country, LT, LTZ, WT6.0L 364 V8
2017 - 2019ChevroletSuburbanHD6.0L 364 V8
2008 - 2014ChevroletSuburban 1500LS, LT, LTZ5.3L 325 V8
2010 - 2013ChevroletSuburban 2500LS, LT6.0L 364 V8
2016 - 2019ChevroletSuburban 3500 HDLS, LT6.0L 364 V8
2008ChevroletTahoeLTZ6.2L 376 V8
2009ChevroletTahoeLS, LT, LTZ5.3L 325 V8, 6.2L 376 V8
2010 - 2011ChevroletTahoeHybrid, LS, LT5.3L 325 V8, 6.0L 364 V8
2012 - 2013ChevroletTahoeHybrid6.0L 364 V8
2010 - 2012GMCCanyonSLE, SLT5.3L 325 V8
2008GMCSavana 1500Base, LS, LT5.3L 325 V8
2009 - 2010GMCSavana 1500Base, LS, LT, SL, SLE5.3L 325 V8
2011GMCSavana 1500Base, LS, LT5.3L 325 V8
2012 - 2013GMCSavana 1500Base, LS, LT, SL, SLE5.3L 325 V8
2014GMCSavana 1500Base, LS, LT5.3L 325 V8
2010GMCSavana 2500Base, LS, LT, SL, SLE4.8L 294 V8, 6.0L 364 V8
2011GMCSavana 2500Base, LS, LT4.8L 294 V8, 6.0L 364 V8
2012 - 2013GMCSavana 2500Base, LS, LT, SL, SLE4.8L 294 V8, 6.0L 364 V8
2014 - 2017GMCSavana 2500Base, LS, LT4.8L 294 V8, 6.0L 364 V8
2018 - 2019GMCSavana 2500Base, LS, LT6.0L 364 V8
2010GMCSavana 3500Base, LS, LT, SL, SLE4.8L 294 V8, 6.0L 364 V8
2011GMCSavana 3500Base, LS, LT4.8L 294 V8, 6.0L 364 V8
2012 - 2013GMCSavana 3500Base, LS, LT, SL, SLE4.8L 294 V8, 6.0L 364 V8
2014 - 2017GMCSavana 3500Base, LS, LT4.8L 294 V8, 6.0L 364 V8
2018 - 2019GMCSavana 3500Base, LS, LT6.0L 364 V8
2008GMCSierraDenali6.2L 376 V8
2008 - 2009GMCSierra 1500Denali, SLE, SLT, WT5.3L 325 V8, 6.2L 376 V8
2010 - 2013GMCSierra 1500Denali, Hybrid, SL, SLE, SLT, WT, XFE4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8
2010GMCSierra 2500 HDSLE, SLT, WT6.0L 364 V8
2011 - 2014GMCSierra 2500 HDDenali, SLE, SLT, WT6.0L 364 V8
2015 - 2019GMCSierra 2500 HDBase, Denali, SLE, SLT6.0L 364 V8
2010GMCSierra 3500 HDSLE, SLT, WT6.0L 364 V8
2011 - 2014GMCSierra 3500 HDDenali, SLE, SLT, WT6.0L 364 V8
2015 - 2019GMCSierra 3500 HDBase, Denali, SLE, SLT6.0L 364 V8
2008GMCYukonDenali6.2L 376 V8
2009GMCYukonDenali, SLE, SLT5.3L 325 V8, 6.2L 376 V8
2010GMCYukonDenali, Denali Hybrid, Hybrid, SLE, SLT5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8
2011 - 2013GMCYukonDenali, Denali Hybrid, Hybrid6.0L 364 V8, 6.2L 376 V8
2014GMCYukonDenali6.2L 376 V8
2008 - 2014GMCYukon XL 1500Denali, SLE, SLT5.3L 325 V8, 6.2L 376 V8
2010 - 2013GMCYukon XL 2500SLE, SLT6.0L 364 V8
2008 - 2009HummerH2Adventure, Base, Luxury6.2L 376 V8
2010HummerH3Alpha5.3L 325 V8
2010HummerH3TAlpha5.3L 325 V8
