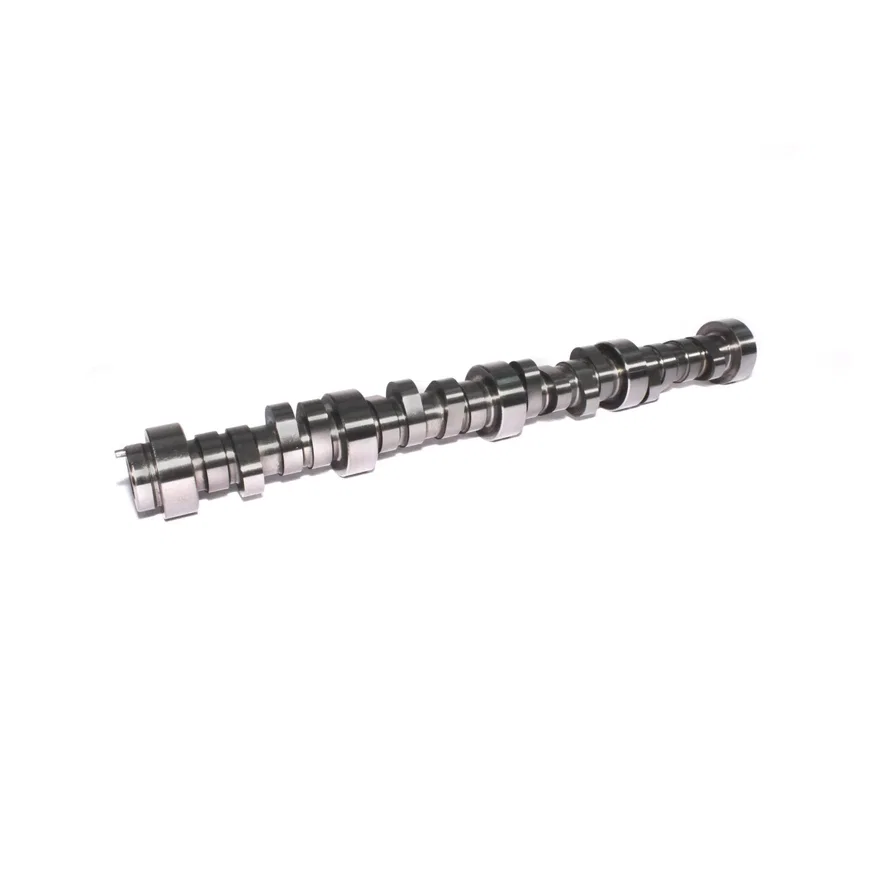

COMP Cams XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM GEN IV w/ AFM w/o VVT
Part # 646-431-13SKU COM646-431-13
Set your vehicle above for a fit verdict. 38 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration Deactivation Cylinders | 286 deg |
| Advertised Exhaust Duration Non-Deactivation Cylinders | 274 deg |
| Advertised Intake Duration Deactivation Cylinders | 275 deg |
| Advertised Intake Duration Non-Deactivation Cylinders | 262 deg |
| AFM Delete Camshaft Core Prefix | 146- |
| Amazon ASIN | B0066ST5MO |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,600-6,300 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XFI AFM |
| Engine Family | GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014) |
| Engine RPO Compatibility | LS4, L76, L77, LH6, LY5, LMG, LFA |
| Exhaust Duration at .050" Deactivation Cylinders | 224 deg |
| Exhaust Duration at .050" Non-Deactivation Cylinders | 222 deg |
| Exhaust Valve Lift Deactivation Cylinders | 0.5 in |
| Exhaust Valve Lift Non-Deactivation Cylinders | 0.5 in |
| Grind Number | 262AFM15 |
| Intake Duration at .050" Deactivation Cylinders | 212 deg |
| Intake Duration at .050" Non-Deactivation Cylinders | 210 deg |
| Intake Valve Lift Deactivation Cylinders | 0.5 in |
| Intake Valve Lift Non-Deactivation Cylinders | 0.5 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| UPC / GTIN | 00036584238003 |
Description
XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 | Buick | Rainier | CXL, CXL Plus | 5.3L 325 V8 |
| 2006 - 2007 | Buick | Rainier | CXL | 5.3L 325 V8 |
| 2009 | Cadillac | Escalade | Hybrid | 6.0L 364 V8 |
| 2007 - 2009 | Chevrolet | Avalanche | LS, LT, LTZ | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2012 | Chevrolet | Avalanche | LS, LT, LTZ | 5.3L 325 V8 |
| 2013 | Chevrolet | Avalanche | Black Diamond LS, Black Diamond LT, Black Diamond LTZ | 5.3L 325 V8 |
| 2011 - 2017 | Chevrolet | Caprice | PPV | 6.0L 364 V8 |
| 2007 - 2009 | Chevrolet | Cheyenne | Base | 5.3L 325 V8 |
| 2016 | Chevrolet | Cheyenne | Cheyenne | 5.3L 325 V8 |
| 2007 - 2008 | Chevrolet | Silverado 1500 | LT, LTZ, WT | 5.3L 325 V8, 6.0L 364 V8 |
| 2009 | Chevrolet | Silverado 1500 | Hybrid, LT, LTZ, WT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2013 | Chevrolet | Silverado 1500 | LS, LT, LTZ, WT | 5.3L 325 V8 |
| 2007 - 2009 | Chevrolet | Suburban 1500 | LS, LT, LTZ | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2014 | Chevrolet | Suburban 1500 | LS, LT, LTZ | 5.3L 325 V8 |
| 2007 | Chevrolet | Tahoe | LS, LT, LTZ | 5.3L 325 V8 |
| 2008 - 2009 | Chevrolet | Tahoe | Hybrid, LS, LT, LTZ | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2011 | Chevrolet | Tahoe | LS, LT, LTZ | 5.3L 325 V8 |
| 2012 - 2014 | Chevrolet | Tahoe | LS, LT, LTZ, PPV, SSV | 5.3L 325 V8 |
| 2006 - 2007 | Chevrolet | Trailblazer | LS, LT | 5.3L 325 V8 |
| 2008 | Chevrolet | Trailblazer | Base, LT | 5.3L 325 V8 |
| 2005 - 2006 | Chevrolet | Trailblazer EXT | LS, LT | 5.3L 325 V8 |
| 2005 - 2009 | GMC | Envoy | Denali | 5.3L 325 V8 |
| 2005 | GMC | Envoy XL | Denali, SLE, SLT | 5.3L 325 V8 |
| 2006 | GMC | Envoy XL | Denali | 5.3L 325 V8 |
| 2005 | GMC | Envoy XUV | SLE, SLT | 5.3L 325 V8 |
| 2007 - 2008 | GMC | Sierra 1500 | SLE, SLT, WT | 5.3L 325 V8, 6.0L 364 V8 |
| 2009 | GMC | Sierra 1500 | Hybrid, SLE, SLT, WT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2013 | GMC | Sierra 1500 | SL, SLE, SLT, WT | 5.3L 325 V8 |
| 2007 | GMC | Yukon | Base, SLE, SLT | 5.3L 325 V8 |
| 2008 - 2009 | GMC | Yukon | Base, Hybrid, SLE, SLT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2014 | GMC | Yukon | SLE, SLT | 5.3L 325 V8 |
| 2007 - 2009 | GMC | Yukon XL 1500 | SLE, SLT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2014 | GMC | Yukon XL 1500 | SLE, SLT | 5.3L 325 V8 |
| 2005 | Isuzu | Ascender | LS, Limited, S | 5.3L 325 V8 |
| 2006 | Isuzu | Ascender | LS | 5.3L 325 V8 |
| 2008 - 2009 | Pontiac | G8 | GT | 6.0L 364 V8 |
| 2005 | Saab | 9-7x | Arc | 5.3L 325 V8 |
| 2006 - 2009 | Saab | 9-7x | 5.3i | 5.3L 325 V8 |
