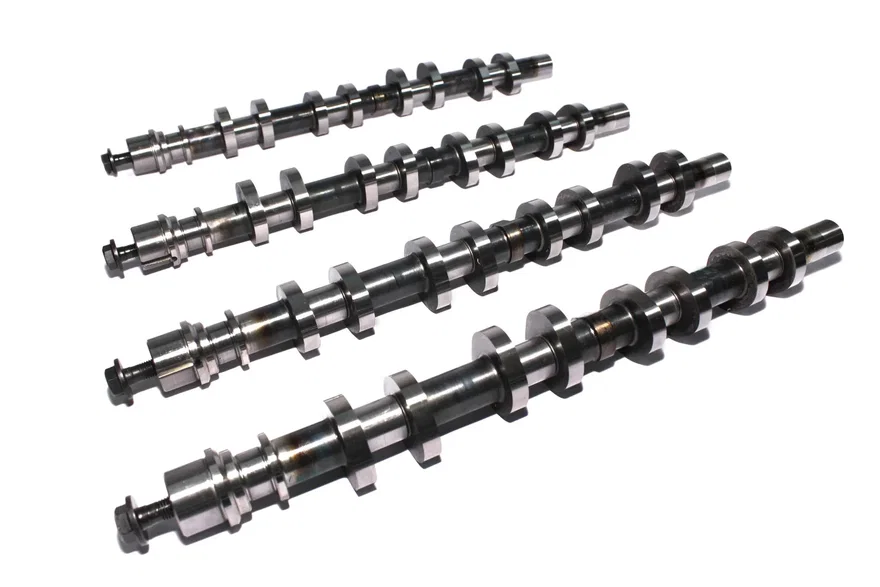

COMP Cams XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V
Part # 106460SKU COM106460
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 275 deg |
| Advertised Intake Duration | 273 deg |
| Amazon ASIN | B000P5G4NM |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-6,400 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XE-R Supercharged and Nitrous |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 240 deg |
| Exhaust Valve Lift | 0.45 in |
| Grind Number | XE274BH-116 |
| Intake Duration at .050 Inch Lift | 238 deg |
| Intake Valve Lift | 0.475 in |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 116 deg |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584096993 |
Description
Xtreme XE-R S-Charged/N2O 238/240 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8 Modular. Max strip/street cams for centrifugal supercharged or nitrous engines. Large gains in power with larger throttle body, mass air, injectors and exhaust upgrades. 2500+ stall. Requires lower Gears and custom tuning. Rough idle.
