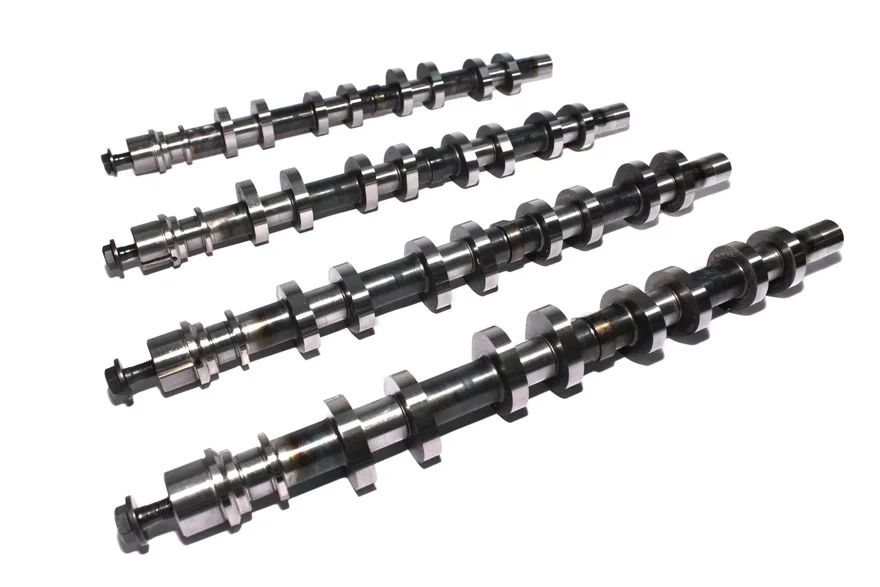

COMP Cams XE-R S-Charged/N2O 222/224 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V
Part # 106260SKU COM106260
Set your vehicle above for a fit verdict. 33 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 259 deg |
| Advertised Intake Duration | 257 deg |
| Amazon ASIN | B000P5G4L4 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,200-5,800 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | XE-R Supercharged and Nitrous |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| Exhaust Duration at .050 inch Lift | 224 deg |
| Exhaust Valve Lift | 0.45 in |
| Grind Number | XE258BH-116 |
| Intake Duration at .050 Inch Lift | 222 deg |
| Intake Valve Lift | 0.475 in |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Lifters Included | No |
| Lobe Separation | 116 deg |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584096740 |
- Street performance with excellent torque.
Description
Xtreme Energy-R S-Charged/N2O 222/224 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8 Modular 4-V Xtreme XE-R Supercharged and Nitrous 222/224 Hydraulic Roller Finger Follower Finger Follower. Street performance with excellent torque. Works well in supercharged or nitrous engines. Requires custom tuning.
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 - 2006 | Ford | GT | Base | 5.4L 330 V8 |
| 1996 | Ford | Mustang | SVT Cobra | 4.6L 281 V8 |
| 1997 | Ford | Mustang | High, SVT Cobra | 4.6L 281 V8 |
| 1998 - 1999 | Ford | Mustang | SVT Cobra | 4.6L 281 V8 |
| 2000 | Ford | Mustang | SVT Cobra R | 5.4L 330 V8 |
| 2001 | Ford | Mustang | SVT Cobra | 4.6L 281 V8 |
| 2003 | Ford | Mustang | Mach 1, SVT Cobra, SVT Cobra 10th Anniversary | 4.6L 281 V8 |
| 2004 | Ford | Mustang | Mach 1, SVT Cobra | 4.6L 281 V8 |
| 2007 | Ford | Mustang | Shelby GT500 | 5.4L 330 V8 |
| 2008 | Ford | Mustang | Shelby GT500, Shelby GT500KR | 5.4L 330 V8 |
| 2009 | Ford | Mustang | Shelby, Shelby GT500, Shelby GT500KR | 5.4L 330 V8 |
| 2010 - 2012 | Ford | Mustang | Shelby, Shelby GT500 | 5.4L 330 V8 |
| 2013 - 2014 | Ford | Mustang | Shelby GT500 | 5.8L 355 V8 |
| 2003 | Lincoln | Aviator | Base | 4.6L 281 V8 |
| 2004 | Lincoln | Aviator | Base, Luxury, Ultimate | 4.6L 281 V8 |
| 2005 | Lincoln | Aviator | Base, Luxury, Premier | 4.6L 281 V8 |
| 2002 - 2003 | Lincoln | Blackwood | Base | 5.4L 330 V8 |
| 1995 | Lincoln | Continental | Diamond Anniversary, Signature, Spinnaker Edition | 4.6L 281 V8 |
| 1996 | Lincoln | Continental | Anniversary, Spinnaker Edition | 4.6L 281 V8 |
| 1997 | Lincoln | Continental | Base, Spinnaker Edition | 4.6L 281 V8 |
| 1998 - 2002 | Lincoln | Continental | Base | 4.6L 281 V8 |
| 1993 - 1994 | Lincoln | Mark VIII | Base | 4.6L 281 V8 |
| 1995 | Lincoln | Mark VIII | Base, LSC | 4.6L 281 V8 |
| 1996 | Lincoln | Mark VIII | Anniversary, Base, LSC | 4.6L 281 V8 |
| 1997 - 1998 | Lincoln | Mark VIII | Base, LSC | 4.6L 281 V8 |
| 1999 - 2003 | Lincoln | Navigator | Base | 5.4L 330 V8 |
| 2004 - 2005 | Lincoln | Navigator | Base, Ultimate | 5.4L 330 V8 |
| 2003 - 2004 | Mercury | Marauder | Base | 4.6L 281 V8 |
| 1999 - 2000 | Panoz | AIV Roadster | Base | 4.6L 281 V8 |
| 2001 - 2004 | Panoz | Esperante | Base | 4.6L 281 V8 |
| 2005 | Panoz | Esperante | Base, GT, GTLM | 4.6L 281 V8 |
| 2006 - 2007 | Panoz | Esperante | Base | 4.6L 281 V8 |
| 2001 - 2002 | Qvale | Mangusta | Base | 4.6L 281 V8 |
