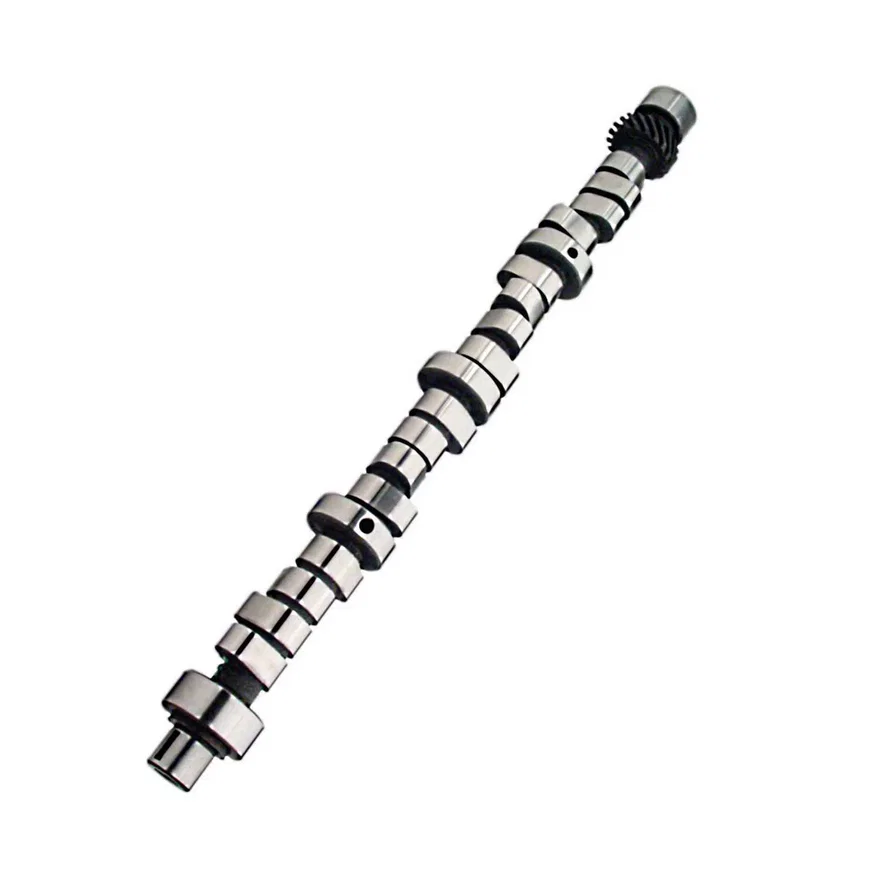

COMP Cams XE Computer Controlled 206/212 Hydraulic Roller Cam for Chrysler Magnum
Part # 20-744-9SKU COM20-744-9
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 264 deg |
| Advertised Intake Duration | 258 deg |
| Amazon ASIN | B001O0FMX0 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 700-4,800 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Xtreme Energy Computer Controlled |
| Engine Family | Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift | 212 deg |
| Exhaust Valve Lift | 0.48 in |
| Grind Number | XR258HR-12 |
| Intake Duration at .050 Inch Lift | 206 deg |
| Intake Valve Lift | 0.48 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 112 deg |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584082057 |
Description
Xtreme Energy Computer Controlled 206/212 Hydraulic Roller Cam
