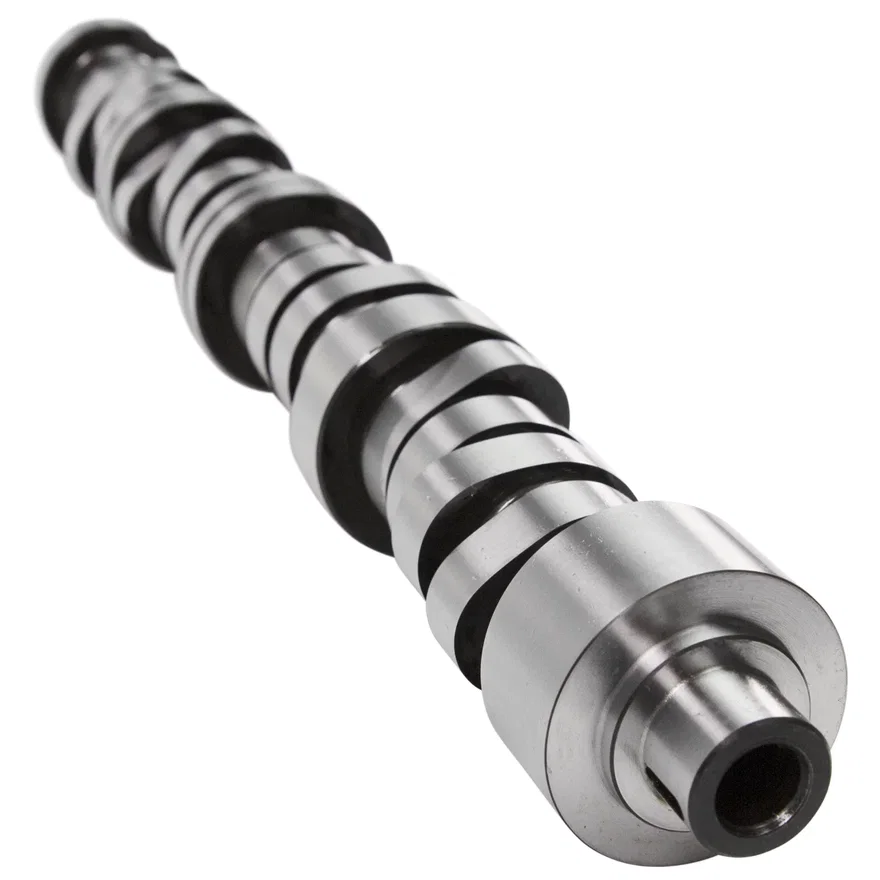

Part # 132-302-13SKU COM132-302-13
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 276 deg |
| Advertised Intake Duration | 252 deg |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,200-4,000 RPM |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | LST |
| Computer Tune Required? | Yes |
| Engine Family | 2001-2016 GM 6600/6.6L Duramax Diesel |
| Exhaust Duration at .050 inch Lift | 208 deg |
| Exhaust Valve Lash | 0.014 in |
| Exhaust Valve Lift | 0.475 in |
| Grind Number | 252LST-R107 |
| Intake Duration at .050 Inch Lift | 194 deg |
| Intake Valve Lash | 0.012 in |
| Intake Valve Lift | 0.475 in |
| Lifter Style | Solid Roller |
| Lifters Included | No |
| Lobe Separation | 107 deg |
| Recommended Valve Spring Kit | 26125ACS-KIT/26125BCS-KIT |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584408611 |
The LST Camshaft Series uses the newest and most advanced lobe designs from COMP Cams. These new lobes provide the potential for major increases in power and torque in Duramax engines when combined with the appropriate tuning. The “Low Shock Technology” features lobe profiles designed to maximize additional engine airflow, which reduces harmful EGTs, while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. Organized into stages that allow yo u to choose your level of performance, Stage 1 Camshafts are No Springs Required and run well with the factory or a performance tune. Stage 2 and 3 camshafts require a COMP Cams #26125 Beehive Valve Spring Kit upgrade but do produce the greatest potential for additional power and RPM when matched wi th maximum effort tuning.
