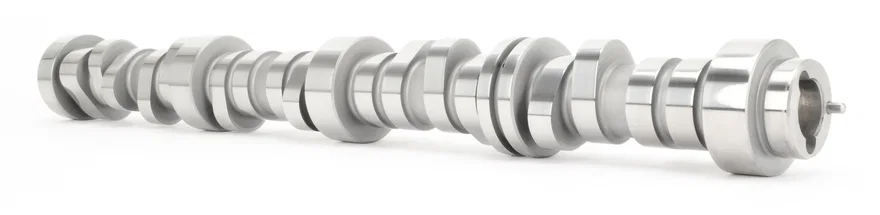

COMP Cams Stage 1 LST Cam for LT1 Camaro and Corvette w/ AFM Delete for Chevrolet
Part # 224-300-13SKU COM224-300-13
Set your vehicle above for a fit verdict. 3 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 287 deg |
| Advertised Intake Duration | 282 deg |
| Amazon ASIN | B07MDDJ5RC |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 2,000-7,200 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Low Shock Technology |
| CK-Kit Upgrade | CK224-300-13 |
| Direct Injection Fuel Pump Lobe Output | 38% More than Stock |
| Engine Family | GM GEN V LT w/ VVT w/o AFM 2014-Present |
| Exhaust Duration at .050 inch Lift | 238 deg |
| Exhaust Valve Lift | 0.639 in |
| Grind Number | 282LMH16 |
| Intake Duration at .050 Inch Lift | 227 deg |
| Intake Valve Lift | 0.65 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 116.5 deg |
| MK-Kit Upgrade | MK224-300-13 |
| Recommended Cam Install Kit for Camaro | 5624 |
| Recommended Cam Install Kit for Corvette | 5626 |
| Stage | 1 |
| Usage | Street / Performance |
| UPC / GTIN | 00036584386469 |
Description
Stage 1 LST 227/238 Hydraulic Roller Cam
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 112-700-11 | $973.99 |
| 435-300-13 | $1,476.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2016 - 2019 | Chevrolet | Camaro | SS | 6.2L 376 V8 |
| 2014 - 2016 | Chevrolet | Corvette | Stingray, Z51 | 6.2L 376 V8 |
| 2017 - 2019 | Chevrolet | Corvette | Grand Sport, Stingray | 6.2L 376 V8 |
