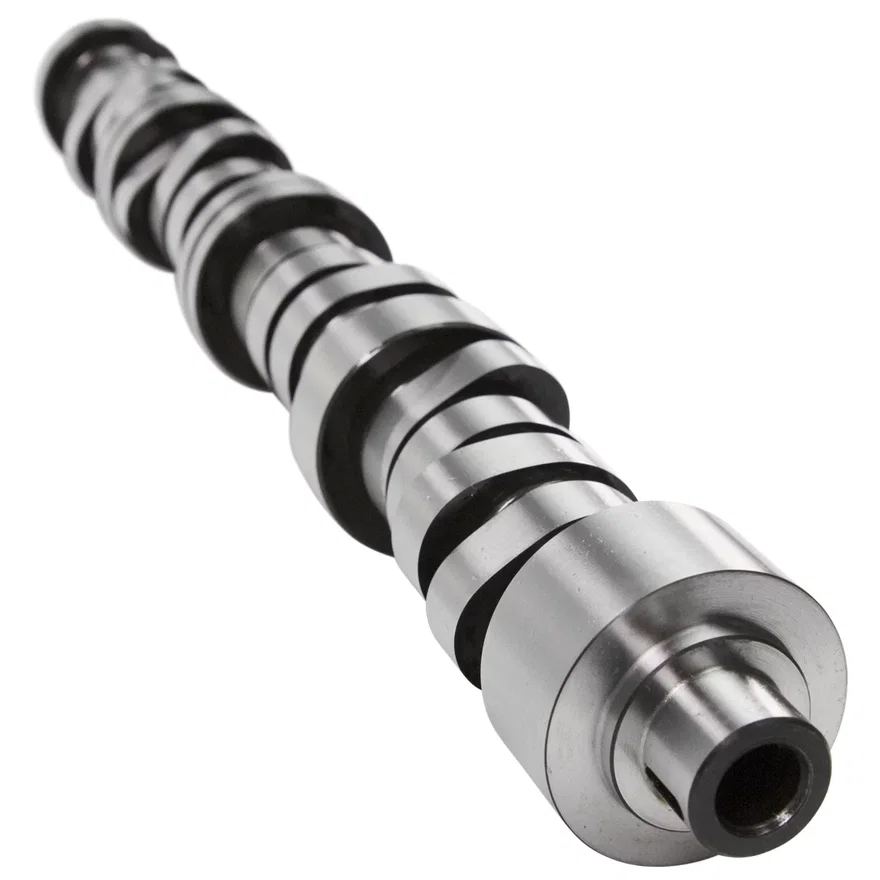

COMP Cams Stage 1 LST 186/200 Solid Roller Cam for GM 6.6L Duramax Diesel

Part # 132-300-13SKU COM132-300-13

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Camshaft
Advertised Exhaust Duration268 deg
Advertised Intake Duration244 deg
Assembly Lubricant IncludedNo
Basic Operating RPM Range1,000-3,600 RPM
Cam TypeSolid Roller
Camshaft Gear Attachment1-Bolt
Camshaft MaterialBillet Steel
Camshaft SeriesLST/No Springs Required/No Tune Required
Computer Tune Required?No
Engine Family2001-2016 GM 6600/6.6L Duramax Diesel
Exhaust Duration at .050 inch Lift200 deg
Exhaust Valve Lash0.014 in
Exhaust Valve Lift0.4 in
Grind Number244LST-R108
Intake Duration at .050 Inch Lift186 deg
Intake Valve Lash0.012 in
Intake Valve Lift0.4 in
Lifter StyleSolid Roller
Lifters IncludedNo
Lobe Separation108 deg
Recommended Valve Spring Kit26125ACS-KIT/26125BCS-KIT
UsageStreet
Valve Springs RequiredNo
UPC / GTIN00036584408604

Description

The LST Camshaft Series uses the newest and most advanced lobe designs from COMP Cams. These new lobes provide the potential for major increases in power and torque in Duramax engines when combined with the appropriate tuning. The “Low Shock Technology” features lobe profiles designed to maximize additional engine airflow, which reduces harmful EGTs, while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. Organized into stages that allow yo u to choose your level of performance, Stage 1 Camshafts are No Springs Required and run well with the factory or a performance tune. Stage 2 and 3 camshafts require a COMP Cams #26125 Beehive Valve Spring Kit upgrade but do produce the greatest potential for additional power and RPM when matched wi th maximum effort tuning.
