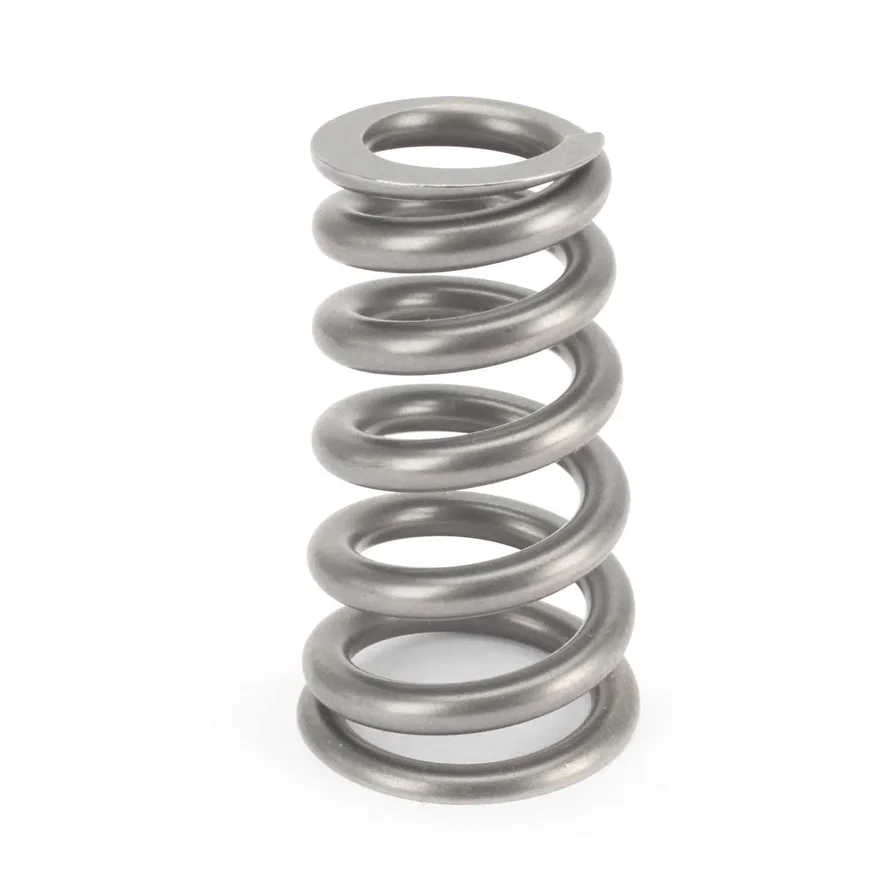

COMP Cams Race Sportsman 1.332" OD Conical Spring; 1.900" Installed Height; 1 Spring
Part # 7230-1SKU COM7230-1
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Valve Spring |
| Amazon ASIN | B00N6LQRUM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| Coil Bind Height | 1.175 in |
| Compatible .570" Guide Diameter Spring Seat | 4677-1 |
| Compatible Retainer | 788-1 |
| Compatible Shims | 4754 |
| Damper | No |
| Number of Springs | 1 |
| Outer Bottom Spring Inside Diameter | 0.932 in |
| Outer Bottom Spring Outside Diameter | 1.332 in |
| Outer Top Spring Inside Diameter | 0.66 in |
| Outer Top Spring Outside Diameter | 1.06 in |
| Seat Height | 1.9 in |
| Seat Pressure | 145 PSI |
| Spring Rate | 519 |
| Valve Spring Series | Race Sportsman |
| UPC / GTIN | 00036584283171 |
