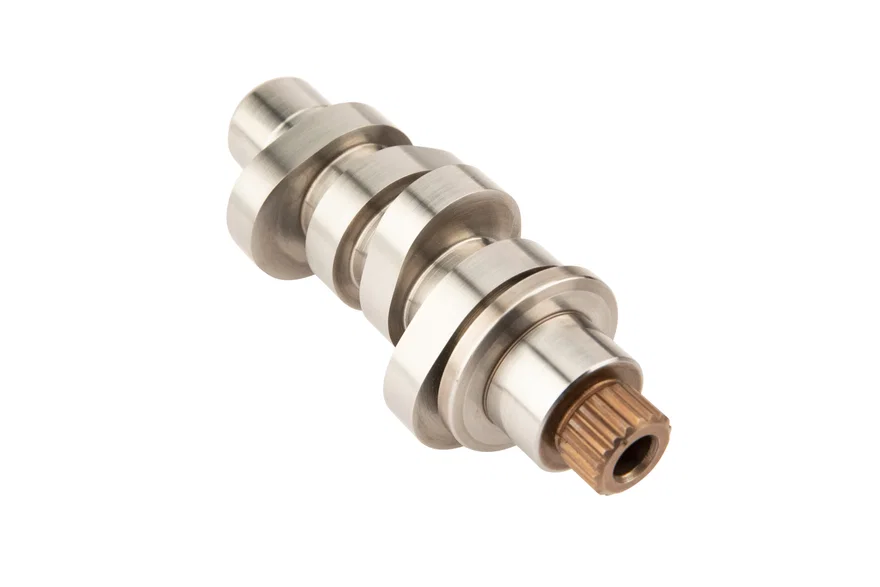

COMP Cams Mega 8 Hi-Lift 240/250 Hydraulic Roller Camshaft for Harley Davidson Milwaukee 8
Part # 307-500-9SKU COM307-500-9
Set your vehicle above for a fit verdict. 27 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Assembly Lubricant Included | Yes |
| Basic Operating RPM Range | 1800-6000 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | 8620 Steel |
| Camshaft Series | Mega 8 Hi-Lift |
| Engine Family | Milwaukee 8 |
| Exhaust Duration at .053 Inch Lift | 250 deg |
| Exhaust Valve Lift | 0.485 in |
| Grind Number | M8 240C |
| Intake Duration at .053 Inch Lift | 240 deg |
| Intake Valve Lift | 0.522 in |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 106.5 deg |
| Usage | Street/Performance |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584382751 |
Description
Mega 8 "Best Cam High Performance" 114 c.i.d. kits. Big torque and top gains with over 132+ HP using ported heads, performance exhaust, intake system.
< ul>< li> Gross Valve Lift: .522 In/.522 Ex</li>< li> Valve Lift @ TDC: .172 In/.145 Ex</li>< li> Tappet Lift @ TDC: .108 In/.091 Ex</li>< li> Lobe Lift: .326 In/.326 Ex</li>< li> Duration @ .053: 240 In/250 Ex</li>< li> Valve Timing Open/Close: 18 In/42 Ex Open and 56 In/14 Ex Close</li>< li> Int. Centerline: 102 In/111 Ex</li>< li> Lobe Sep.: 106.5</li></ul>
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018 | Harley-Davidson | FLDE Deluxe 107 | Base |
| 2018 | Harley-Davidson | FLFB Fat Boy 107 | Base |
| 2018 | Harley-Davidson | FLFBS Fat Boy 114 | Base |
| 2018 | Harley-Davidson | FLHC Heritage Classic 107 | Base |
| 2018 | Harley-Davidson | FLHCS Heritage Classic 114 | Base |
| 2017 - 2018 | Harley-Davidson | FLHR Road King | Base |
| 2017 - 2018 | Harley-Davidson | FLHRXS Road King Special | Base |
| 2017 - 2018 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic | Base |
| 2017 - 2018 | Harley-Davidson | FLHTCUTG Tri Glide Ultra | Base |
| 2017 - 2018 | Harley-Davidson | FLHTKL Ultra Limited Low | Base |
| 2017 | Harley-Davidson | FLHTKSE CVO Limited | Base |
| 2017 - 2018 | Harley-Davidson | FLHTK Ultra Limited | Base |
| 2017 | Harley-Davidson | FLHXSE CVO Street Glide | Base |
| 2017 - 2018 | Harley-Davidson | FLHXS Street Glide Special | Base |
| 2017 - 2018 | Harley-Davidson | FLHX Street Glide | Base |
| 2017 - 2018 | Harley-Davidson | FLRT Freewheeler | Base |
| 2018 | Harley-Davidson | FLSB Sport Glide 107 | Base |
| 2018 | Harley-Davidson | FLSL Softail Slim 107 | Base |
| 2017 - 2018 | Harley-Davidson | FLTRU Road Glide Ultra | Base |
| 2017 - 2018 | Harley-Davidson | FLTRX Road Glide | Base |
| 2017 - 2018 | Harley-Davidson | FLTRXS Road Glide Special | Base |
| 2018 | Harley-Davidson | FXBB Street Bob 107 | Base |
| 2018 | Harley-Davidson | FXBR Breakout 107 | Base |
| 2018 | Harley-Davidson | FXBRS Breakout 114 | Base |
| 2018 | Harley-Davidson | FXFB Fat Bob 107 | Base |
| 2018 | Harley-Davidson | FXFBS Fat Bob 114 | Base |
| 2018 | Harley-Davidson | FXLR Low Rider 107 | Base |
