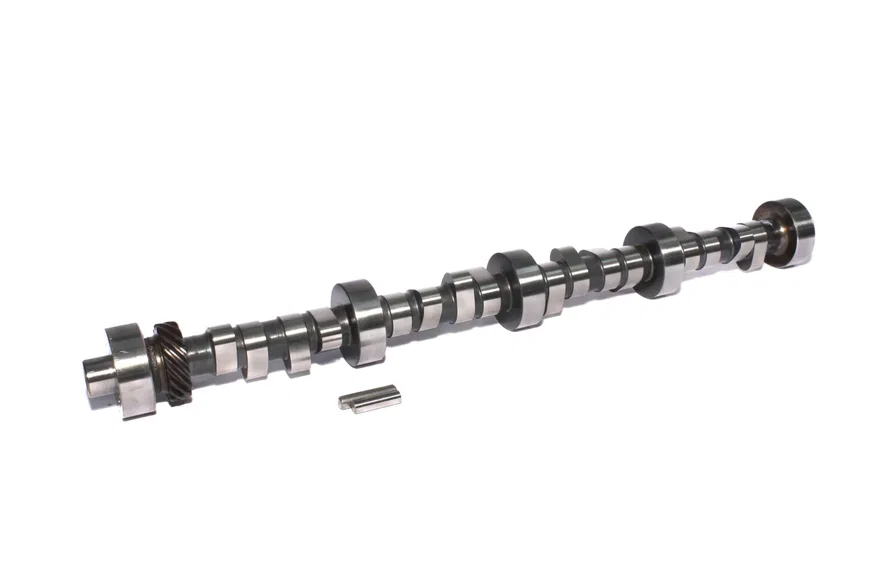

COMP Cams Magnum 215/215 Hydraulic Roller Cam for Ford 221-302
Part # 31-422-8SKU COM31-422-8
Set your vehicle above for a fit verdict. 186 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 270 deg |
| Advertised Intake Duration | 270 deg |
| Amazon ASIN | B000P5GA86 |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,800-5,000 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam and Lifter Kit Upgrade | CL31-422-8 |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum |
| Engine Family | Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995) |
| Exhaust Duration at .050 inch Lift | 215 deg |
| Exhaust Valve Lift | 0.533 in |
| Grind Number | 270HR |
| Intake Duration at .050 Inch Lift | 215 deg |
| Intake Valve Lift | 0.533 in |
| K-Kit Upgrade | K31-422-8 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 deg |
| SK-Kit Upgrade | SK31-422-8 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584780359 |
Description
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1962 - 1963 | AC | Shelby Cobra | 4.3L 260 V8, 4.7L 289 V8 |
| 1964 - 1968 | AC | Shelby Cobra | 4.7L 289 V8 |
| 1967 - 1972 | DeTomaso | Mangusta | 5.0L 302 V8 |
| 1963 | Ford | 300 | 4.3L 260 V8, 4.7L 289 V8 |
| 1973 - 1980 | Ford | B-100 | 5.0L 302 V8 |
| 1981 - 1985 | Ford | B-150 | 5.0L 302 V8 |
| 1985 - 1991 | Ford | B-200 | 5.0L 302 V8 |
| 1986 | Ford | B-200 Panel | 5.0L 302 V8 |
| 1966 - 1967 | Ford | Bronco | 4.7L 289 V8 |
| 1968 | Ford | Bronco | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1977 | Ford | Bronco | 5.0L 302 V8 |
| 1980 - 1996 | Ford | Bronco | 5.0L 302 V8 |
| 1990 - 1993 | Ford | Cougar | 5.0L 302 V8 |
| 1962 | Ford | Country Sedan | 3.6L 221 V8, 4.3L 260 V8 |
| 1963 | Ford | Country Sedan | 3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8 |
| 1964 - 1965 | Ford | Country Sedan | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Ford | Country Sedan | 4.7L 289 V8 |
| 1968 - 1974 | Ford | Country Sedan | 5.0L 302 V8 |
| 1962 | Ford | Country Squire | 3.6L 221 V8, 4.3L 260 V8 |
| 1963 | Ford | Country Squire | 3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8 |
| 1964 - 1965 | Ford | Country Squire | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Ford | Country Squire | 4.7L 289 V8 |
| 1968 - 1974 | Ford | Country Squire | 5.0L 302 V8 |
| 1987 - 1991 | Ford | Country Squire | 5.0L 302 V8 |
| 1964 - 1965 | Ford | Custom | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Ford | Custom | 4.7L 289 V8 |
| 1968 - 1972 | Ford | Custom | 5.0L 302 V8 |
| 1968 - 1974 | Ford | Custom 500 | 5.0L 302 V8 |
| 1969 - 1975 | Ford | E-100 Econoline | 5.0L 302 V8 |
| 1979 - 1983 | Ford | E-100 Econoline | 5.0L 302 V8 |
| 1979 - 1983 | Ford | E-100 Econoline Club Wagon | 5.0L 302 V8 |
| 1975 | Ford | E-150 Econoline | 5.0L 302 V8 |
| 1979 - 1996 | Ford | E-150 Econoline | 5.0L 302 V8 |
| 1979 - 1996 | Ford | E-150 Econoline Club Wagon | 5.0L 302 V8 |
| 1969 - 1974 | Ford | E-200 Econoline | 5.0L 302 V8 |
| 1975 | Ford | E-250 Econoline | 5.0L 302 V8 |
| 1979 - 1991 | Ford | E-250 Econoline | 5.0L 302 V8 |
| 1979 - 1980 | Ford | E-250 Econoline Club Wagon | 5.0L 302 V8 |
| 1969 - 1974 | Ford | E-300 Econoline | 5.0L 302 V8 |
| 1975 | Ford | E-350 Econoline | 5.0L 302 V8 |
| 1979 - 1982 | Ford | E-350 Econoline | 5.0L 302 V8 |
| 1979 - 1980 | Ford | E-350 Econoline Club Wagon | 5.0L 302 V8 |
| 1996 - 2001 | Ford | Explorer | 5.0L 302 V8 |
| 1965 - 1968 | Ford | F-100 | 4.7L 289 V8 |
| 1969 - 1972 | Ford | F-100 | 4.7L 289 V8, 5.0L 302 V8 |
| 1973 - 1980 | Ford | F-100 | 5.0L 302 V8 |
| 1981 - 1982 | Ford | F-100 | 4.2L 255 V8, 5.0L 302 V8 |
| 1983 | Ford | F-100 | 5.0L 302 V8 |
| 1975 - 1996 | Ford | F-150 | 5.0L 302 V8 |
| 1986 - 1991 | Ford | F-200 | 5.0L 302 V8 |
| 1969 - 1974 | Ford | F-250 | 5.0L 302 V8 |
| 1977 - 1978 | Ford | F-250 | 5.0L 302 V8 |
| 1980 - 1997 | Ford | F-250 | 5.0L 302 V8 |
| 1965 - 1998 | Ford | F-350 | 5.0L 302 V8 |
| 1962 | Ford | Fairlane | 3.6L 221 V8, 4.3L 260 V8 |
| 1963 | Ford | Fairlane | 3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8 |
| 1964 | Ford | Fairlane | 4.3L 260 V8, 4.7L 289 V8 |
| 1965 - 1967 | Ford | Fairlane | 4.7L 289 V8 |
| 1968 - 1970 | Ford | Fairlane | 5.0L 302 V8 |
| 1978 - 1979 | Ford | Fairmont | 5.0L 302 V8 |
| 1980 - 1982 | Ford | Fairmont | 4.2L 255 V8, 5.0L 302 V8 |
| 1983 | Ford | Fairmont | 5.0L 302 V8 |
| 1962 - 1963 | Ford | Falcon | 3.6L 221 V8, 4.3L 260 V8 |
| 1964 | Ford | Falcon | 4.3L 260 V8, 4.7L 289 V8 |
| 1965 - 1967 | Ford | Falcon | 4.7L 289 V8 |
| 1968 | Ford | Falcon | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1970 | Ford | Falcon | 5.0L 302 V8 |
| 1962 - 1963 | Ford | Falcon Sedan Delivery | 4.3L 260 V8 |
| 1964 | Ford | Falcon Sedan Delivery | 4.3L 260 V8, 4.7L 289 V8 |
| 1965 | Ford | Falcon Sedan Delivery | 4.7L 289 V8 |
| 1963 - 1964 | Ford | Galaxie | 4.3L 260 V8, 4.7L 289 V8 |
| 1965 - 1967 | Ford | Galaxie | 4.7L 289 V8 |
| 1962 | Ford | Galaxie 500 | 4.3L 260 V8 |
| 1963 - 1964 | Ford | Galaxie 500 | 4.3L 260 V8, 4.7L 289 V8 |
| 1968 - 1974 | Ford | Galaxie 500 | 5.0L 302 V8 |
| 1975 - 1979 | Ford | Granada | 5.0L 302 V8 |
| 1980 | Ford | Granada | 4.2L 255 V8, 5.0L 302 V8 |
| 1981 | Ford | Granada | 4.2L 255 V8 |
| 1972 - 1974 | Ford | Gran Torino | 5.0L 302 V8 |
| 1964 - 1969 | Ford | GT40 | 4.7L 289 V8 |
| 1965 - 1967 | Ford | LTD | 4.7L 289 V8 |
| 1968 - 1974 | Ford | LTD | 5.0L 302 V8 |
| 1977 - 1980 | Ford | LTD | 5.0L 302 V8 |
| 1981 - 1982 | Ford | LTD | 4.2L 255 V8, 5.0L 302 V8 |
| 1983 - 1986 | Ford | LTD | 5.0L 302 V8 |
| 1987 - 1991 | Ford | LTD Crown Victoria | 5.0L 302 V8 |
| 1977 - 1979 | Ford | LTD II | 5.0L 302 V8 |
| 1970 | Ford | Maverick | 5.0L 302 V8 |
| 1971 - 1977 | Ford | Maverick | 4.7L 289 V8, 5.0L 302 V8 |
| 1964 - 1965 | Ford | Mustang | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Ford | Mustang | 4.7L 289 V8 |
| 1968 | Ford | Mustang | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1973 | Ford | Mustang | 5.0L 302 V8 |
| 1979 | Ford | Mustang | 5.0L 302 V8 |
| 1980 - 1982 | Ford | Mustang | 4.2L 255 V8, 5.0L 302 V8 |
| 1983 - 1995 | Ford | Mustang | 5.0L 302 V8 |
| 1974 - 1978 | Ford | Mustang II | 5.0L 302 V8 |
| 1972 | Ford | P-350 | 5.0L 302 V8 |
| 1975 - 1976 | Ford | P-350 | 5.0L 302 V8 |
| 1989 - 1992 | Ford | P-350 | 5.0L 302 V8 |
| 1994 | Ford | P-350 | 5.0L 302 V8 |
| 1975 - 1976 | Ford | P-400 | 5.0L 302 V8 |
| 1976 - 1977 | Ford | P-500 | 5.0L 302 V8 |
| 1962 - 1964 | Ford | Ranchero | 4.3L 260 V8 |
| 1965 - 1967 | Ford | Ranchero | 4.7L 289 V8 |
| 1968 - 1974 | Ford | Ranchero | 5.0L 302 V8 |
| 1977 - 1979 | Ford | Ranchero | 5.0L 302 V8 |
| 1962 | Ford | Ranch Wagon | 3.6L 221 V8, 4.3L 260 V8 |
| 1963 | Ford | Ranch Wagon | 3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8 |
| 1964 - 1965 | Ford | Ranch Wagon | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Ford | Ranch Wagon | 4.7L 289 V8 |
| 1968 - 1974 | Ford | Ranch Wagon | 5.0L 302 V8 |
| 1963 | Ford | Sprint | 3.6L 221 V8, 4.3L 260 V8 |
| 1964 | Ford | Sprint | 4.3L 260 V8, 4.7L 289 V8 |
| 1977 - 1979 | Ford | Thunderbird | 5.0L 302 V8 |
| 1980 - 1981 | Ford | Thunderbird | 4.2L 255 V8, 5.0L 302 V8 |
| 1982 | Ford | Thunderbird | 4.2L 255 V8 |
| 1983 - 1988 | Ford | Thunderbird | 5.0L 302 V8 |
| 1991 - 1993 | Ford | Thunderbird | 5.0L 302 V8 |
| 1968 - 1974 | Ford | Torino | 5.0L 302 V8 |
| 1964 - 1965 | Griffith | 200 | 4.7L 289 V8 |
| 1989 - 2001 | Laforza | Laforza | 5.0L 302 V8 |
| 1980 | Lincoln | Continental | 5.0L 302 V8 |
| 1982 - 1987 | Lincoln | Continental | 5.0L 302 V8 |
| 1980 - 1983 | Lincoln | Mark VI | 5.0L 302 V8 |
| 1984 - 1992 | Lincoln | Mark VII | 5.0L 302 V8 |
| 1981 - 1990 | Lincoln | Town Car | 5.0L 302 V8 |
| 1977 - 1980 | Lincoln | Versailles | 5.0L 302 V8 |
| 1964 - 1965 | Mercury | Caliente | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Mercury | Caliente | 4.7L 289 V8 |
| 1966 - 1967 | Mercury | Capri | 4.7L 289 V8 |
| 1979 | Mercury | Capri | 5.0L 302 V8 |
| 1980 - 1981 | Mercury | Capri | 4.2L 255 V8 |
| 1982 | Mercury | Capri | 4.2L 255 V8, 5.0L 302 V8 |
| 1983 - 1986 | Mercury | Capri | 5.0L 302 V8 |
| 1987 - 1991 | Mercury | Colony Park | 5.0L 302 V8 |
| 1962 - 1963 | Mercury | Comet | 3.6L 221 V8, 4.3L 260 V8 |
| 1964 - 1965 | Mercury | Comet | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Mercury | Comet | 4.7L 289 V8 |
| 1968 | Mercury | Comet | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 | Mercury | Comet | 5.0L 302 V8 |
| 1971 - 1977 | Mercury | Comet | 5.0L 302 V8 |
| 1967 | Mercury | Commuter | 4.7L 289 V8 |
| 1967 | Mercury | Cougar | 4.7L 289 V8 |
| 1968 | Mercury | Cougar | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1970 | Mercury | Cougar | 5.0L 302 V8 |
| 1977 - 1979 | Mercury | Cougar | 5.0L 302 V8 |
| 1980 - 1981 | Mercury | Cougar | 4.2L 255 V8, 5.0L 302 V8 |
| 1982 | Mercury | Cougar | 4.2L 255 V8 |
| 1983 - 1988 | Mercury | Cougar | 5.0L 302 V8 |
| 1991 - 1993 | Mercury | Cougar | 5.0L 302 V8 |
| 1963 | Mercury | Country Cruiser | 3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8 |
| 1964 - 1965 | Mercury | Cyclone | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Mercury | Cyclone | 4.7L 289 V8 |
| 1968 | Mercury | Cyclone | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1971 | Mercury | Cyclone | 5.0L 302 V8 |
| 1979 - 1980 | Mercury | Grand Marquis | 5.0L 302 V8 |
| 1981 - 1982 | Mercury | Grand Marquis | 4.2L 255 V8, 5.0L 302 V8 |
| 1983 - 1991 | Mercury | Grand Marquis | 5.0L 302 V8 |
| 1979 - 1980 | Mercury | Marquis | 5.0L 302 V8 |
| 1981 - 1982 | Mercury | Marquis | 4.2L 255 V8, 5.0L 302 V8 |
| 1962 | Mercury | Meteor | 3.6L 221 V8, 4.3L 260 V8 |
| 1963 | Mercury | Meteor | 3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8 |
| 1975 - 1979 | Mercury | Monarch | 5.0L 302 V8 |
| 1980 | Mercury | Monarch | 4.2L 255 V8, 5.0L 302 V8 |
| 1968 | Mercury | Montego | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1974 | Mercury | Montego | 5.0L 302 V8 |
| 1997 - 2001 | Mercury | Mountaineer | 5.0L 302 V8 |
| 1962 - 1963 | Mercury | Villager | 3.6L 221 V8, 4.3L 260 V8 |
| 1964 - 1965 | Mercury | Villager | 4.3L 260 V8, 4.7L 289 V8 |
| 1966 - 1967 | Mercury | Villager | 4.7L 289 V8 |
| 1966 - 1967 | Mercury | Voyager | 4.7L 289 V8 |
| 1978 - 1979 | Mercury | Zephyr | 5.0L 302 V8 |
| 1980 - 1982 | Mercury | Zephyr | 4.2L 255 V8 |
| 1967 | Omega | Omega | 4.7L 289 V8 |
| 1968 | Omega | Omega | 4.7L 289 V8, 5.0L 302 V8 |
| 1962 | Shelby | Cobra | 4.3L 260 V8 |
| 1963 - 1964 | Shelby | Cobra | 4.3L 260 V8, 4.7L 289 V8 |
| 1965 - 1968 | Shelby | Cobra | 4.7L 289 V8 |
| 1964 - 1966 | Sunbeam | Tiger | 4.3L 260 V8 |
| 1967 | Sunbeam | Tiger | 4.3L 260 V8, 4.7L 289 V8 |
| 1972 - 1974 | TVR | 3000M | 5.0L 302 V8 |
| 1964 - 1966 | TVR | Griffith | 4.7L 289 V8 |
| 1967 | TVR | Tuscan | 4.7L 289 V8 |
| 1968 | TVR | Tuscan | 4.7L 289 V8, 5.0L 302 V8 |
| 1969 - 1971 | TVR | Tuscan | 5.0L 302 V8 |
