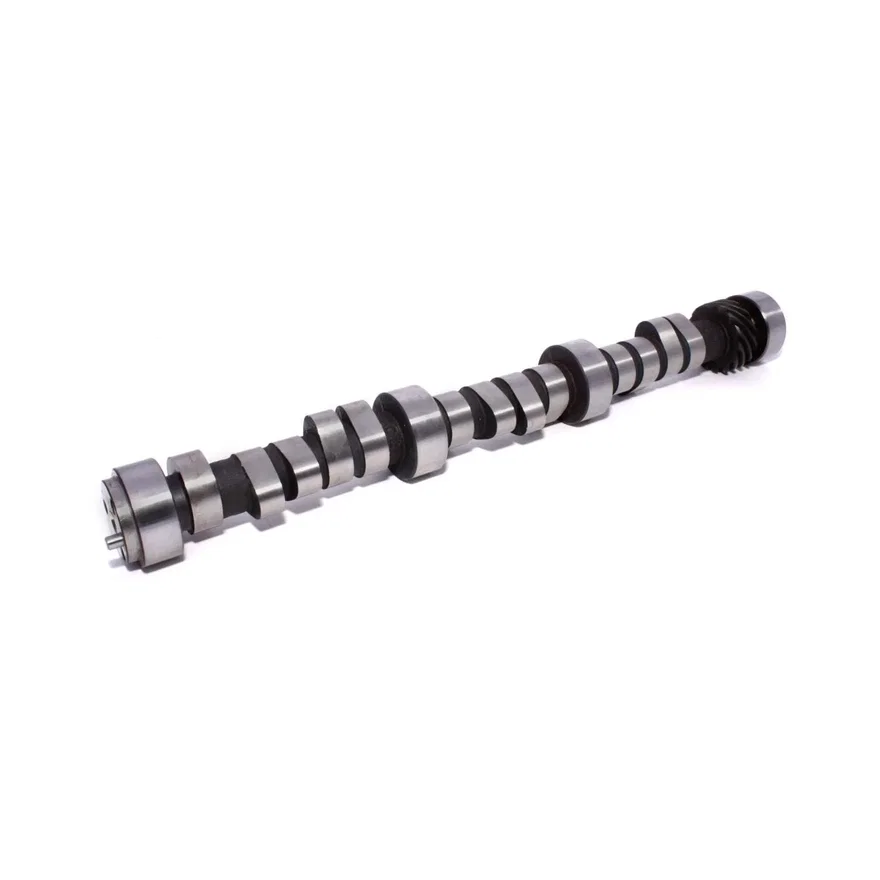

COMP Cams Magnum 206/206 Hydraulic Roller Cam for Chevrolet 262/4.3L
Part # 09-410-8SKU COM09-410-8
Set your vehicle above for a fit verdict. 57 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 260 deg |
| Advertised Intake Duration | 260 deg |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,200-4,500 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam and Lifter Kit Upgrade | CL09-410-8 |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Magnum |
| Engine Family | Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft |
| Exhaust Duration at .050 inch Lift | 206 deg |
| Exhaust Valve Lift | 0.5 in |
| Grind Number | 260HR |
| Intake Duration at .050 Inch Lift | 206 deg |
| Intake Valve Lift | 0.5 in |
| K-Kit Upgrade | K09-410-8 |
| Lifter Type | Hydraulic Roller |
| Lifters Included | No |
| Lobe Separation | 110 deg |
| SK-Kit Upgrade | SK09-410-8 |
| Usage | Street/Strip |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584780700 |
Description
Hydraulic Roller Cam
More from COMP Cams
| 405-205-17 | $1,062.99 |
| 405-201-17 | $1,062.99 |
| 201-330-17 | $1,017.99 |
| 435-300-13 | $1,476.99 |
| 112-700-11 | $973.99 |
| 435-301-13 | $1,476.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1987 - 2005 | Chevrolet | Astro | 4.3L 262 V6 |
| 1995 - 2000 | Chevrolet | Blazer | 4.3L 262 V6 |
| 2002 - 2005 | Chevrolet | Blazer | 4.3L 262 V6 |
| 1988 - 1998 | Chevrolet | C1500 | 4.3L 262 V6 |
| 1988 - 1995 | Chevrolet | C2500 | 4.3L 262 V6 |
| 1987 - 1990 | Chevrolet | Caprice | 4.3L 262 V6 |
| 1992 - 1993 | Chevrolet | Caprice | 4.3L 262 V6 |
| 1992 | Chevrolet | Commercial Chassis | 4.3L 262 V6 |
| 1987 | Chevrolet | El Camino | 4.3L 262 V6 |
| 1996 - 1997 | Chevrolet | Express 1500 | 4.3L 262 V6 |
| 2009 - 2012 | Chevrolet | Express 1500 | 4.3L 262 V6 |
| 1996 - 2006 | Chevrolet | Express 2500 | 4.3L 262 V6 |
| 1987 - 1995 | Chevrolet | G10 | 4.3L 262 V6 |
| 1987 - 1994 | Chevrolet | G20 | 4.3L 262 V6 |
| 1987 - 1996 | Chevrolet | G30 | 4.3L 262 V6 |
| 1988 - 1998 | Chevrolet | K1500 | 4.3L 262 V6 |
| 1988 - 1995 | Chevrolet | K2500 | 4.3L 262 V6 |
| 1987 - 1988 | Chevrolet | Monte Carlo | 4.3L 262 V6 |
| 1990 - 1999 | Chevrolet | P30 | 4.3L 262 V6 |
| 2001 | Chevrolet | P30 | 4.3L 262 V6 |
| 1987 | Chevrolet | R10 | 4.3L 262 V6 |
| 1987 - 1988 | Chevrolet | R20 | 4.3L 262 V6 |
| 1988 - 2004 | Chevrolet | S10 | 4.3L 262 V6 |
| 1988 - 1994 | Chevrolet | S10 Blazer | 4.3L 262 V6 |
| 1999 - 2001 | Chevrolet | Silverado 1500 | 4.3L 262 V6 |
| 2007 - 2008 | Chevrolet | Silverado 1500 | 4.3L 262 V6 |
| 2010 - 2012 | Chevrolet | Silverado 1500 | 4.3L 262 V6 |
| 2007 | Chevrolet | Silverado 1500 Classic | 4.3L 262 V6 |
| 1987 | Chevrolet | V10 | 4.3L 262 V6 |
| 1988 - 1998 | GMC | C1500 | 4.3L 262 V6 |
| 1988 - 1995 | GMC | C2500 | 4.3L 262 V6 |
| 1987 | GMC | Caballero | 4.3L 262 V6 |
| 1987 - 1995 | GMC | G1500 | 4.3L 262 V6 |
| 1987 - 1995 | GMC | G2500 | 4.3L 262 V6 |
| 1987 - 1995 | GMC | G3500 | 4.3L 262 V6 |
| 1992 - 2003 | GMC | Jimmy | 4.3L 262 V6 |
| 1988 - 1998 | GMC | K1500 | 4.3L 262 V6 |
| 1988 - 1995 | GMC | K2500 | 4.3L 262 V6 |
| 1990 - 1999 | GMC | P3500 | 4.3L 262 V6 |
| 1987 | GMC | R1500 | 4.3L 262 V6 |
| 1987 | GMC | R2500 | 4.3L 262 V6 |
| 1988 - 1990 | GMC | S15 | 4.3L 262 V6 |
| 1988 - 1991 | GMC | S15 Jimmy | 4.3L 262 V6 |
| 1987 - 2005 | GMC | Safari | 4.3L 262 V6 |
| 1996 - 2012 | GMC | Savana 1500 | 4.3L 262 V6 |
| 1996 - 2006 | GMC | Savana 2500 | 4.3L 262 V6 |
| 1999 - 2013 | GMC | Sierra 1500 | 4.3L 262 V6 |
| 2007 | GMC | Sierra 1500 Classic | 4.3L 262 V6 |
| 1991 - 2004 | GMC | Sonoma | 4.3L 262 V6 |
| 1991 | GMC | Syclone | 4.3L 262 V6 |
| 1992 - 1993 | GMC | Typhoon | 4.3L 262 V6 |
| 1987 | GMC | V1500 | 4.3L 262 V6 |
| 2000 | Isuzu | Hombre | 4.3L 262 V6 |
| 1991 - 1994 | Oldsmobile | Bravada | 4.3L 262 V6 |
| 1996 - 2001 | Oldsmobile | Bravada | 4.3L 262 V6 |
| 1987 | Pontiac | Grand Prix | 4.3L 262 V6 |
| 2002 - 2003 | Workhorse | FasTrack FT931 | 4.3L 262 V6 |
