COMP CamsMore from COMP Cams

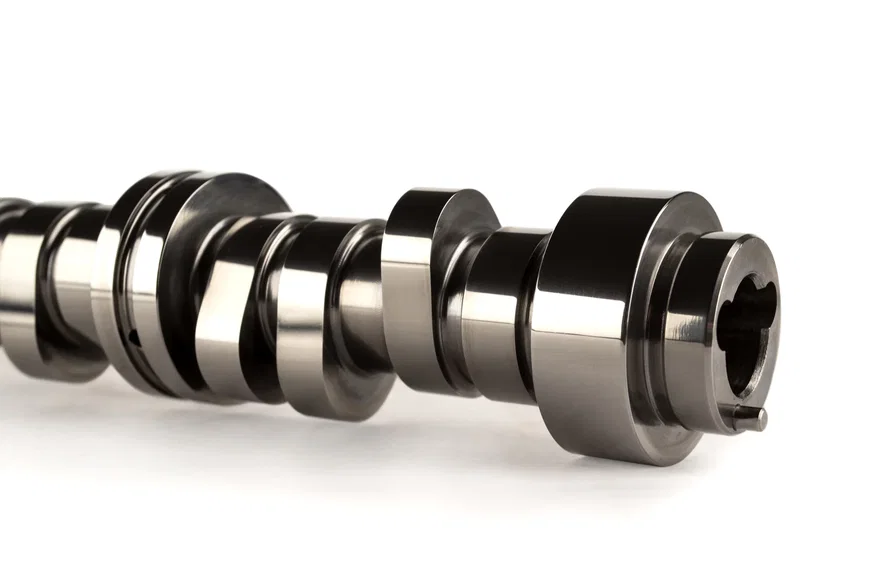

COMP Cams FSL AFM 208/220 D, 206/218 N Hydraulic Roller Cam for GM LS GEN IV

Part # 689-200-13SKU COM689-200-13

Universal fit

Specifications
BrandCOMP Cams
Part typeEngine Camshaft
Advertised Exhaust Duration Deactivation Cylinders269 deg
Advertised Exhaust Duration Non-Deactivation Cylinders260 deg
Advertised Intake Duration Deactivation Cylinders282 deg
Advertised Intake Duration Non-Deactivation Cylinders270 deg
Assembly Lubricant IncludedNo
Basic Operating RPM Range1600-6800 RPM
C.A.R.B. E.O. NumberD-279-12
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption ReasonC.A.R.B. EO Issued
Cam TypeHydraulic Roller
Camshaft Gear AttachmentSingle-Bolt
Camshaft MaterialBillet Steel
Camshaft SeriesFSL
Engine FamilyGM GEN IV LS Single-Bolt w/ VVT and AFM 8 Cylinder (2007-2015)
Exhaust Duration at .050 inch Lift Deactivation Cylinders220 deg
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders218 deg
Exhaust Valve Lift Deactivation Cylinders0.541
Exhaust Valve Lift Non-Deactivation Cylinders0.541 in
Grind NumberL99E260
Intake Duration at .050 Inch Lift Deactivation Cylinders208 deg
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders206 deg
Intake Valve Lift Deactivation Cylinders0.541 in
Intake Valve Lift Non-Deactivation Cylinders0.541
Lifter TypeHydraulic Roller
Lifters IncludedNo
Lobe Separation117 deg
UPC / GTIN00036584388937

Description

50 State legal grind for GM L99/LS3 Gen IV single bolt with VVT and AFM. Bolt in with stock components and tune, can produce 32+ HP increase in peak power.
