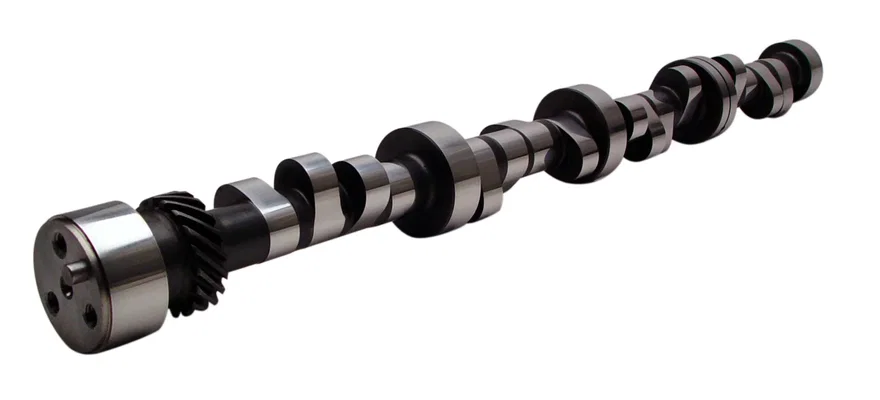

COMP Cams Drag Race 285/294 Solid Roller Cam for Chrysler 426 HEMI
Part # 24-725-11SKU COM24-725-11
Universal fit
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 337 deg |
| Advertised Intake Duration | 317 deg |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 5500-8,500 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Solid Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Camshaft Series | Drag Race |
| Engine Family | Chrysler 426 HEMI 8 Cylinder (1966-1971) |
| Exhaust Duration at .050 inch Lift | 294 deg |
| Exhaust Valve Lift | 0.793 in |
| Grind Number | 317SSR-8 |
| Intake Duration at .050 Inch Lift | 285 deg |
| Intake Valve Lift | 0.822 in |
| Lifter Type | Solid Roller |
| Lifters Included | No |
| Lobe Separation | 108 deg |
| Usage | Strip |
| Valve Springs Required | Yes |
| UPC / GTIN | 00036584312703 |
Description
Drag Race 285/294 Solid Roller Cam for Chrysler 426 HEMI
