Part # 2268SKU EDE2268
Set your vehicle above for a fit verdict. 19 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Engine Camshaft |
| Advertised Exhaust Duration | 329 deg |
| Advertised Intake Duration | 335 deg |
| Cam Type | Roller |
| Computer Controlled Compatible | No |
| Exhaust Duration at .050 inch Lift | 245 deg |
| Exhaust Valve Lift | 0.376 in |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.639 in |
| Intake Duration at .050 Inch Lift | 236 deg |
| Intake Valve Lift | 0.368 in |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.625 in |
| Lifter Type | Roller |
| Lobe Separation | 112 deg |
| UPC / GTIN | 00085347022687 |

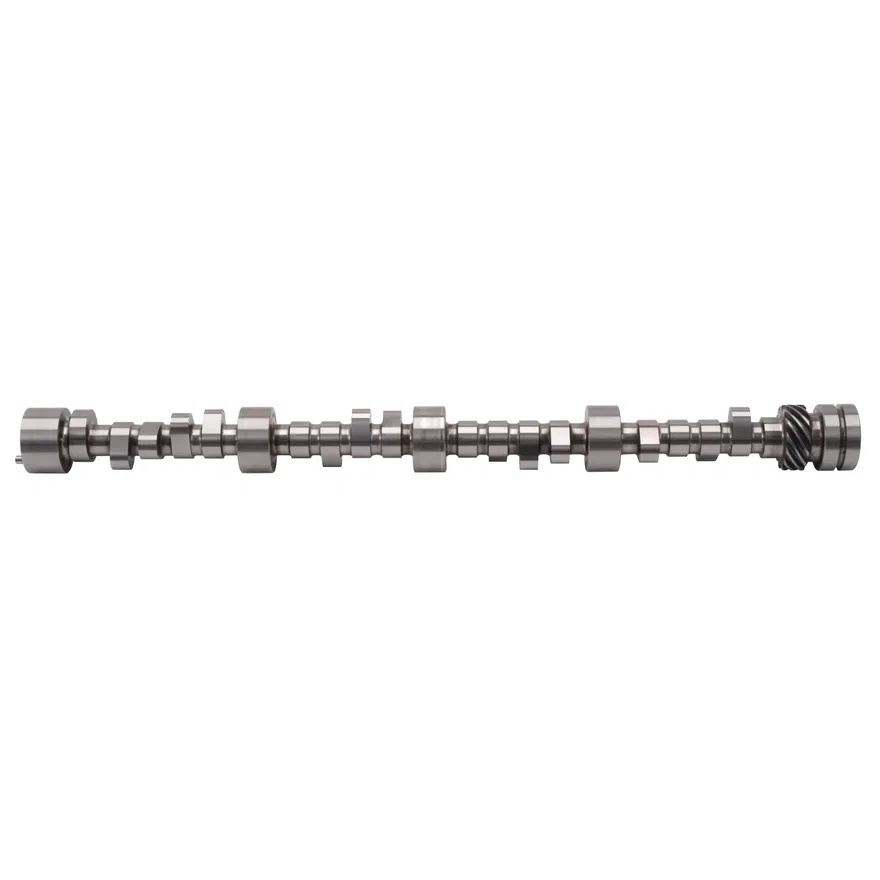

Edelbrock Rollin' Thunder Camshaft #2268 is designed for 348/409 (W Series) engines from 1958-65 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 451HP and 470 Ft Lbs of Torque when paired with Performer RPM intake manifold #7159, Performer Series Carbs #1412, Performer RPM cylinder heads #60815 and Edelbrock roller tappet lifter set #97423. Must use a high stall torque converter. Camshaft specifications: - Intake duration: 230 Degrees - Exhaust duration: 234 Degrees - Intake lift: .616" - Exhaust lift: .628" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 10"
| 2108 | $863.99 |
| 2231 | $907.99 |
| 2215 | $821.99 |
| 2216 | $986.99 |
| 2218 | $872.99 |
| 2219 | $927.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1961 | Chevrolet | Bel Air | 5.7L 348 V8, 6.7L 409 V8 |
| 1962 - 1965 | Chevrolet | Bel Air | 6.7L 409 V8 |
| 1961 | Chevrolet | Biscayne | 5.7L 348 V8, 6.7L 409 V8 |
| 1962 - 1965 | Chevrolet | Biscayne | 6.7L 409 V8 |
| 1961 | Chevrolet | Brookwood | 5.7L 348 V8, 6.7L 409 V8 |
| 1961 | Chevrolet | C10 Pickup | 5.7L 348 V8 |
| 1961 | Chevrolet | C20 Pickup | 5.7L 348 V8 |
| 1961 | Chevrolet | C30 Pickup | 5.7L 348 V8 |
| 1961 | Chevrolet | Impala | 5.7L 348 V8, 6.7L 409 V8 |
| 1962 - 1965 | Chevrolet | Impala | 6.7L 409 V8 |
| 1961 | Chevrolet | K10 Pickup | 5.7L 348 V8 |
| 1961 | Chevrolet | K20 Pickup | 5.7L 348 V8 |
| 1961 | Chevrolet | Kingswood | 5.7L 348 V8, 6.7L 409 V8 |
| 1961 | Chevrolet | Nomad | 5.7L 348 V8, 6.7L 409 V8 |
| 1961 | Chevrolet | Parkwood | 5.7L 348 V8, 6.7L 409 V8 |
| 1961 | Chevrolet | Suburban | 5.7L 348 V8 |
| 1961 - 1965 | Pontiac | Laurentian | 6.7L 409 V8 |
| 1961 - 1965 | Pontiac | Parisienne | 6.7L 409 V8 |
| 1961 - 1965 | Pontiac | Strato-Chief | 6.7L 409 V8 |
