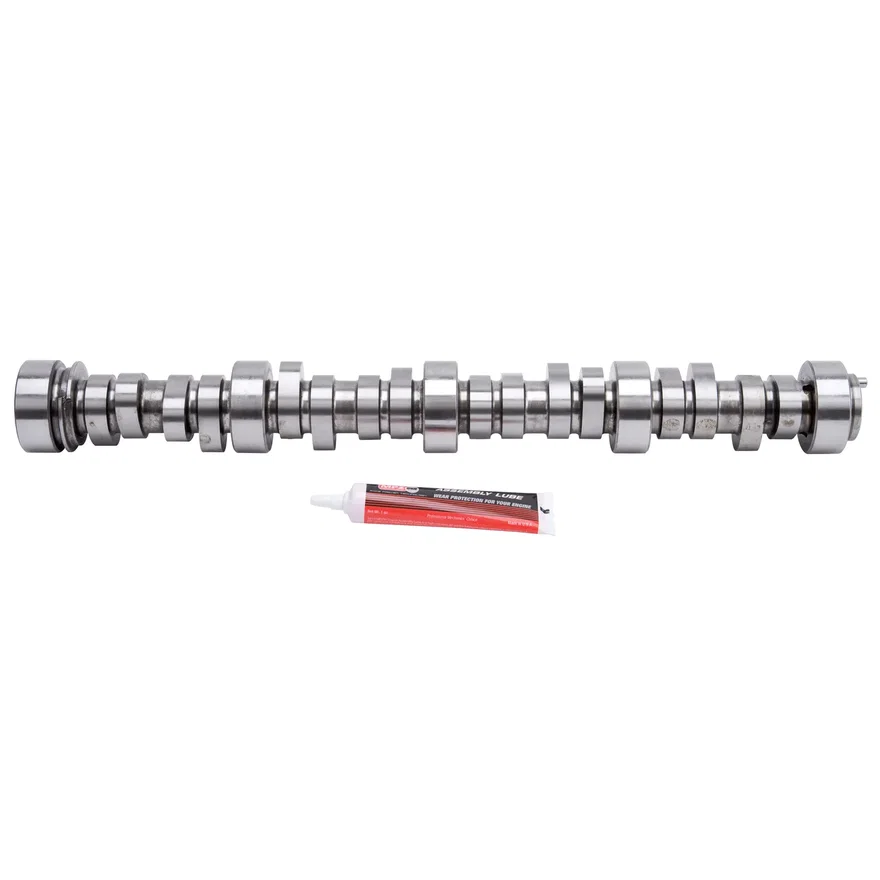

Edelbrock Rollin’ Thunder Camshaft for 1997-04 LS1/LS6 (Gen III)

Part # 2216SKU EDE2216

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Camshaft
Advertised Exhaust Duration322 deg
Advertised Intake Duration314 deg
Cam TypeRoller
Computer Controlled CompatibleYes
Exhaust Duration at .050 inch Lift237 deg
Exhaust Valve Lift0.318 in
Exhaust Valve Lift with Factory Rocker Arm Ratio0.540 in
Intake Duration at .050 Inch Lift314 deg
Intake Valve Lift0.318 in
Intake Valve Lift with Factory Rocker Arm Ratio0.540 in
Lifter TypeRoller
Lobe Separation110 deg
UPC / GTIN00085347022168

Description

Edelbrock Rollin' Thunder Camshaft #2216 is designed for LS1/LS6 Gen III Chevy's from 1997-04 and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 460HP and 424 Ft Lbs of Torque when paired with Performer RPM Intake manifold #71187, Thunder Series AVS Carb #1813 and E-CNC 215 cylinder heads #79949. Use with high stall torque converter only. Camshaft specifications: - Intake duration: 230 Degrees - Exhaust duration: 237 Degrees - Intake lift: .540" - Exhaust lift: .540" - Lobe separation: 110 Degree - Intake Center Line: 106 Degree - Vacuum: 10"
