COMP Cams XE Computer Controlled 224/232 Hydraulic Roller K-Kit Chevrolet Big Block GEN VI
Part # K01-775-8SKU COMK01-775-8
Set your vehicle above for a fit verdict. 28 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Camshaft Kit |
| Advertised Exhaust Duration | 279 deg |
| Advertised Intake Duration | 271 deg |
| Amazon ASIN | B0046ZL5BI |
| Assembly Lubricant Included | No |
| Basic Operating RPM Range | 1,800-6,000 RPM |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Cam Type | Hydraulic Roller |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Series | Xtreme Energy Computer Controlled |
| Engine Family | Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999) |
| Exhaust Duration at .050 inch Lift | 232 deg |
| Exhaust Valve Lift | 0.601 in |
| Gaskets Included | No |
| Intake Duration at .050 Inch Lift | 224 deg |
| Intake Valve Lift | 0.591 in |
| Kit Type | K-Kit - Complete Kit |
| Lifter Type | Hydraulic Roller |
| Lifters Included | Yes |
| Lobe Separation | 112 deg |
| Timing Chain and Gears Included | Yes |
| Usage | Street/Performance |
| Valve Springs Included | Yes |
| Valve Stem Seals Included | Yes |
| UPC / GTIN | 00036584000020 |
Description

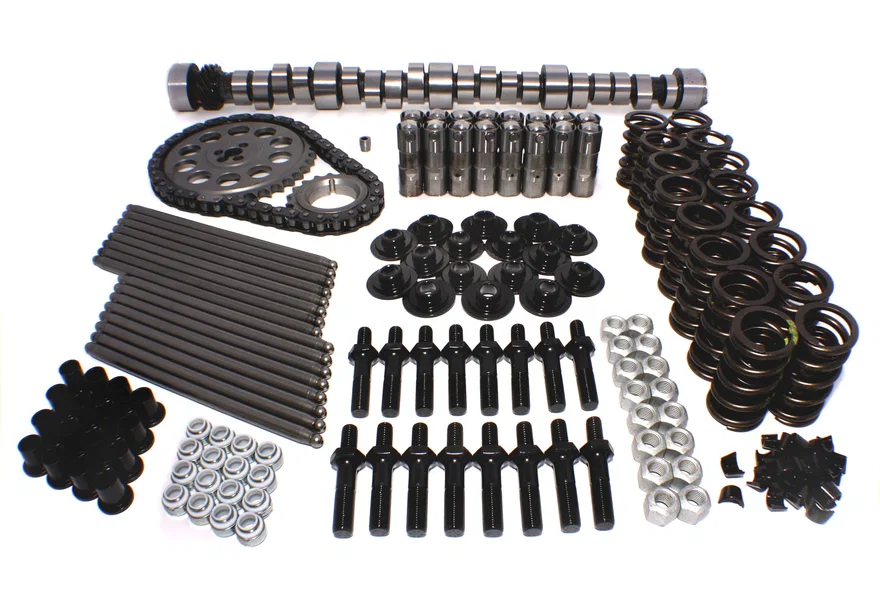

K-KIT - Complete Kit Includes: Camshaft, Lifters, Valve Springs, Retainers, Valve Locks, Valve Stem Seals, Timing Chain Set, Assembly Lube (in flat tappet applications), Decals and Instructions.
More from COMP Cams
| K12-600-4 | $949.99 |
| MK201-300-17 | $2,995.99 |
| MK201-302-17 | $2,995.99 |
| MK112-300-11 | $2,769.99 |
| MK54-700-11 | $2,171.99 |
| GK35-602-4 | $1,087.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1996 - 1997 | Chevrolet | C2500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | C2500 | Cheyenne, Silverado, WT | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | C2500 | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | C2500 Suburban | Base, LS, LT | 7.4L 454 V8 |
| 1998 - 1999 | Chevrolet | C2500 Suburban | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | C3500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | C3500 | Cheyenne, Silverado | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | C3500 | Base, LS | 7.4L 454 V8 |
| 1996 - 2000 | Chevrolet | Express 3500 | Base, LS | 7.4L 454 V8 |
| 1996 | Chevrolet | G30 | Chevy Van | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | K2500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | K2500 | Cheyenne, Silverado, WT | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | K2500 | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | K2500 Suburban | Base, LS, LT | 7.4L 454 V8 |
| 1998 - 1999 | Chevrolet | K2500 Suburban | Base, LS | 7.4L 454 V8 |
| 1996 - 1997 | Chevrolet | K3500 | Base, Cheyenne, Silverado | 7.4L 454 V8 |
| 1998 | Chevrolet | K3500 | Cheyenne, Silverado | 7.4L 454 V8 |
| 1999 - 2000 | Chevrolet | K3500 | Base, LS | 7.4L 454 V8 |
| 1996 - 1999 | Chevrolet | P30 | Base | 7.4L 454 V8 |
| 1996 - 2000 | GMC | C2500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 - 1999 | GMC | C2500 Suburban | Base, SLE, SLT | 7.4L 454 V8 |
| 1996 - 2000 | GMC | C3500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 | GMC | G3500 | Rally | 7.4L 454 V8 |
| 1996 - 2000 | GMC | K2500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 - 1999 | GMC | K2500 Suburban | Base, SLE, SLT | 7.4L 454 V8 |
| 1996 - 2000 | GMC | K3500 | Sierra SL, Sierra SLE, Sierra SLT | 7.4L 454 V8 |
| 1996 - 1999 | GMC | P3500 | Base | 7.4L 454 V8 |
| 1996 - 2000 | GMC | Savana 3500 | Base, SLE | 7.4L 454 V8 |
