Part # 77929SKU EDE77929
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | No |
| CNC Ported | No |
| Combustion Chamber Volume | 72 cc |
| Construction Type | Bare With Valves |
| Cylinder Head Gasket Included | No |
| Deck Height | 10.725 in |
| Deck Thickness | 0.625 in |
| EGR Port | No |
| Exhaust Port Location | +.250 |
| Exhaust Runner Volume | 100 |
| Exhaust Valve Diameter | 1.81 in |
| Family | Victor |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | No |
| Head Casting Number | 31-7791 |
| Intake Runner Volume | 280 cc |
| Intake Valve Diameter | 2.20 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Quantity | Sold Individually |
| Retainer Included | No |
| Rocker Arm Studs/Bolts Included | No |
| Rocker Arms Included | No |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| Seat Material | Ductile Iron |
| Series | Victor |
| Valve Angle | 15 deg |
| Valve Cover Gasket Included | No |
| UPC / GTIN | 00085347779291 |

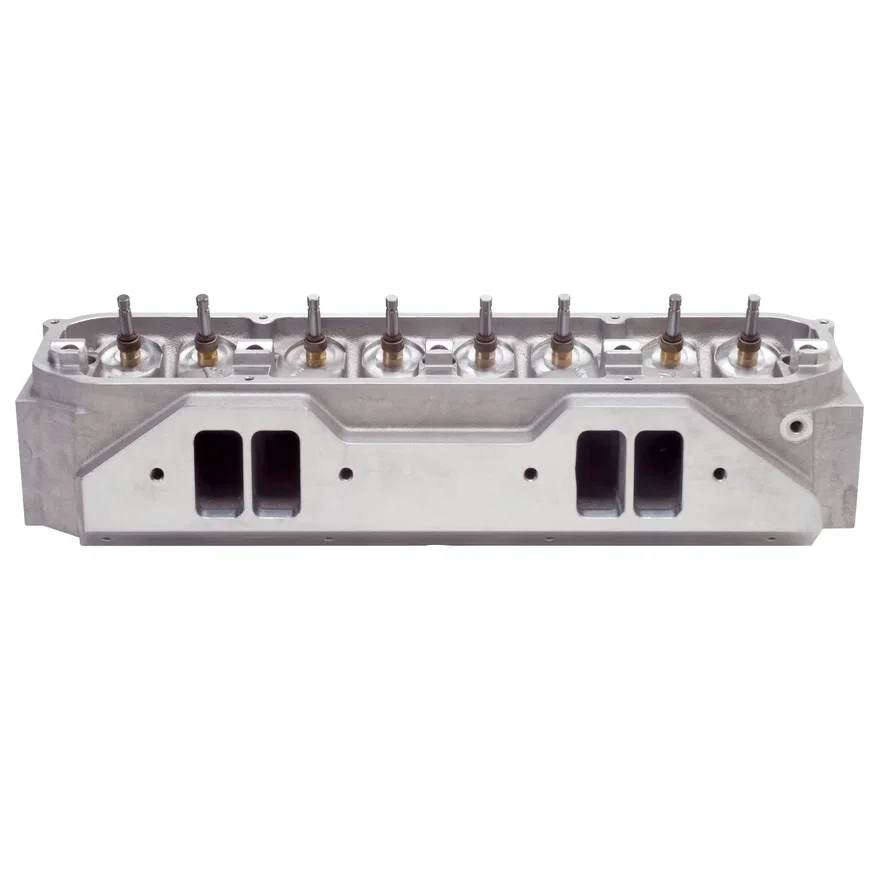

The Edelbrock part #77929 Big Block Chrysler Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition. VICTOR B/B CHRYSLER FEATURES: The best standard port location cylinder head available for competition big-block Chryslers. Intake ports are raised .650", exhaust ports are raised .250" for improved flow. The intake flange is extended .950" to eliminate the need for intake spacer plates. Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines. Sold without springs or retainers
