Part # 61419SKU EDE61419
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | No |
| CNC Ported | Yes |
| Combustion Chamber Volume | 119 cc |
| Construction Type | Bare |
| Cylinder Head Gasket Included | No |
| Deck Height | 9.8 in |
| Deck Thickness | 0.5625 in |
| EGR Port | Yes |
| Exhaust Port Location | +0.500 |
| Exhaust Runner Volume | 128 |
| Family | Edelbrock/Musi |
| Flange Type | Rectangle Intake |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | Yes |
| Head Casting Number | 31-6140 |
| Horsepower | 600-900 |
| Intake Runner Volume | 377 cc |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Quantity | Sold Individually |
| Retainer Included | No |
| Rocker Arm Studs/Bolts Included | No |
| Rocker Arms Included | No |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| Seat Material | Ductile Iron |
| Series | Edelbrock/Musi |
| Valve Angle | Exhaust 14 x 4 deg/Intake 24 x 5.5 deg |
| Valve Cover Gasket Included | No |
| Valve Locks Included | No |
| UPC / GTIN | 00085347614196 |

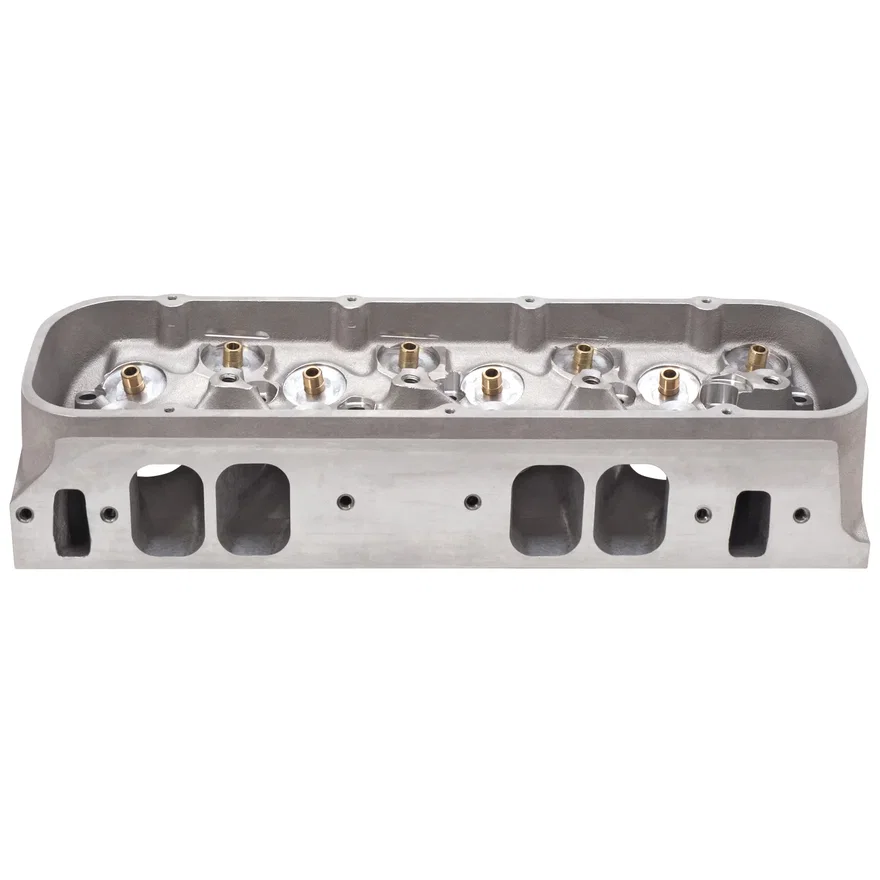

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61419 Victor 24deg CNC Bare cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.
