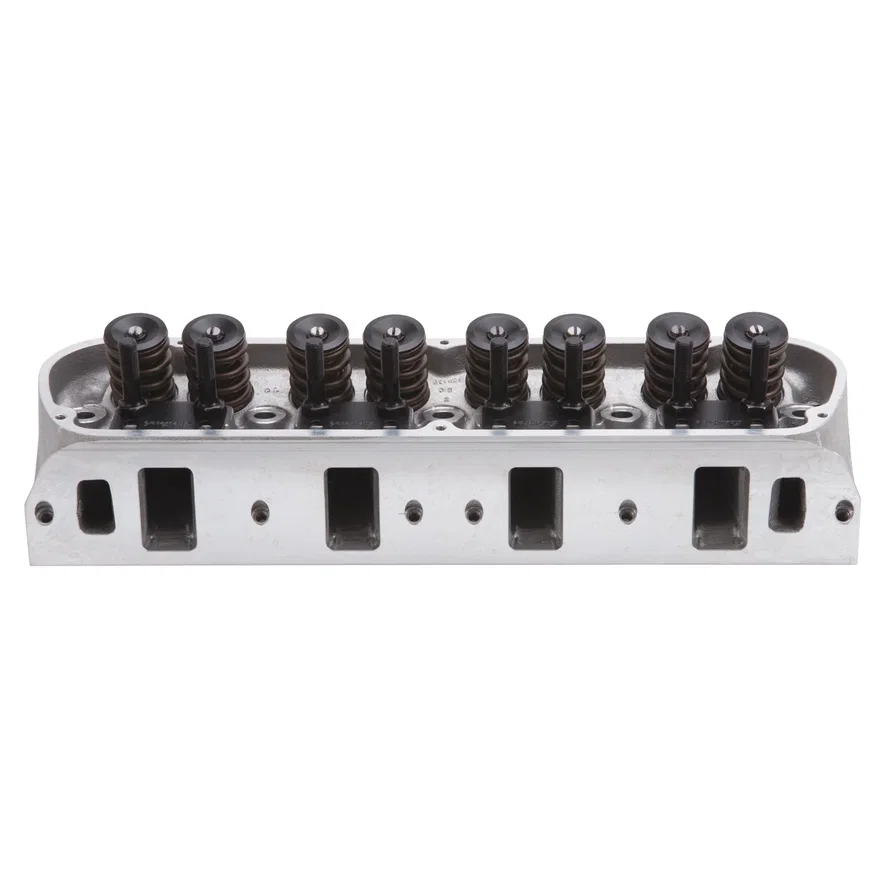

Edelbrock Victor Jr Small-Block Ford Cylinder Head Mechanical Roller Camshaft
Part # 77199SKU EDE77199
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | Yes |
| Camshaft Type | Mechanical Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 60 cc |
| Construction Type | Complete |
| Cylinder Head Gasket Included | No |
| Deck Height | 9.5 in |
| Deck Thickness | 0.625 in |
| EGR Port | No |
| Exhaust Port Location | +.125 |
| Exhaust Runner Volume | 75 |
| Exhaust Valve Diameter | 1.60 in |
| Family | Victor Jr. |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Chromoly Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 31-7716 |
| Horsepower | 400-600 |
| Intake Runner Volume | 210 cc |
| Intake Valve Diameter | 2.05 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Push Rod Diameter | (Suggested) 0.3125 in |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Rocker Arm Stud Diameter | 0.4375 in |
| Rocker Arm Studs/Bolts Included | Yes |
| Rocker Arms Included | No |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| UPC / GTIN | 00085347771998 |
Description
The Edelbrock 77199 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head
