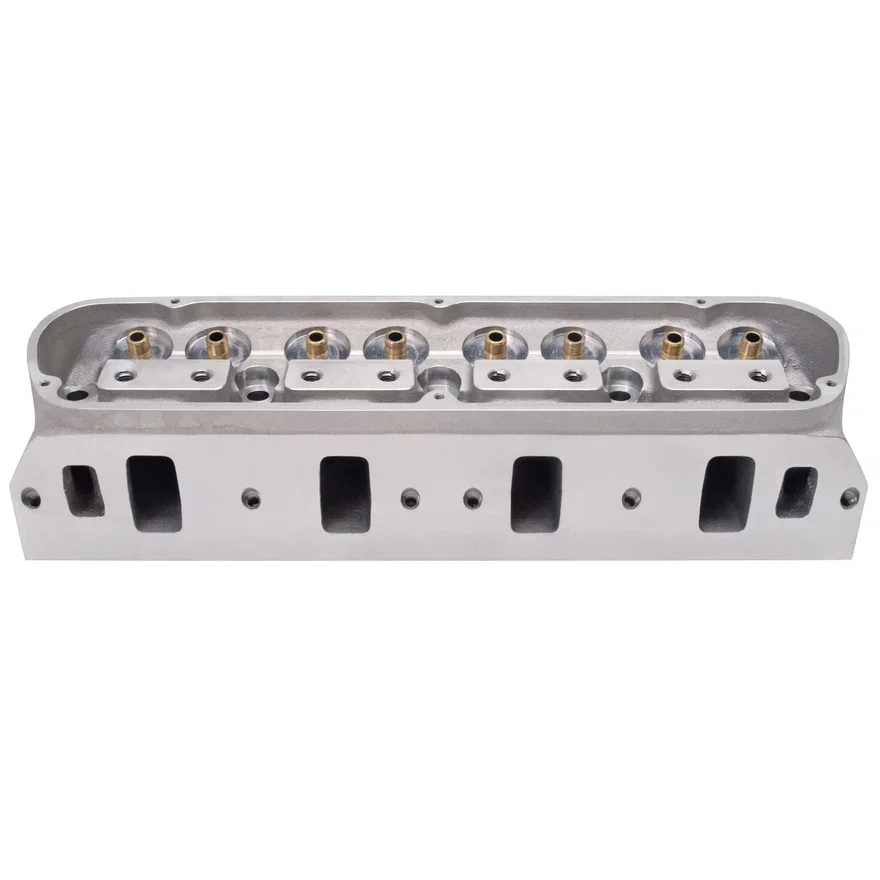

Edelbrock Victor Jr Small-Block Ford Cylinder Head Bare
Part # 77219SKU EDE77219
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | No |
| CNC Ported | No |
| Combustion Chamber Volume | 47 cc |
| Construction Type | Bare |
| Cylinder Head Gasket Included | No |
| Deck Height | 8.2 in |
| Deck Thickness | 0.625 in |
| Exhaust Port Location | +.550 |
| Exhaust Runner Volume | 80 |
| Family | Victor |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | 31-7721 |
| Horsepower | 400-1000 |
| Intake Runner Volume | 240 cc |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Quantity | Sold Individually |
| Retainer Included | No |
| Rocker Arm Studs/Bolts Included | No |
| Rocker Arms Included | No |
| Seat Material | Ductile Iron |
| Series | Victor |
| Valve Cover Gasket Included | No |
| Valve Locks Included | No |
| Valve Seals Included | No |
| Valve Spring Retainers Included | No |
| Valve Springs Included | No |
| Valves Included | No |
| UPC / GTIN | 00085347772193 |
Description
The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"
