Part # 77599SKU EDE77599
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Camshaft Type | Mechanical Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 64 |
| Construction Type | Complete |
| Deck Thickness | 0.5625 in |
| EGR Port | No |
| Exhaust Port Location | +.125 |
| Exhaust Runner Volume | 85 |
| Exhaust Valve Diameter | 1.60 in |
| Family | Victor Jr. |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Horsepower | 450-550 |
| Intake Runner Volume | 215 |
| Intake Valve Diameter | 2.08 in |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.3125 in |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Rocker Arm Stud Diameter | 0.4375 in |
| Rotor Center Bore Inside Diameter | angled |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| Seat Material | Ductile Iron |
| Series | Victor Jr. |
| Valve Angle | 23 deg |
| Valve Included | Yes |
| Valve Spring Diameter | 1.55 in |
| Valve Spring Maximum Lift | 0.670 in |
| UPC / GTIN | 00085347775996 |

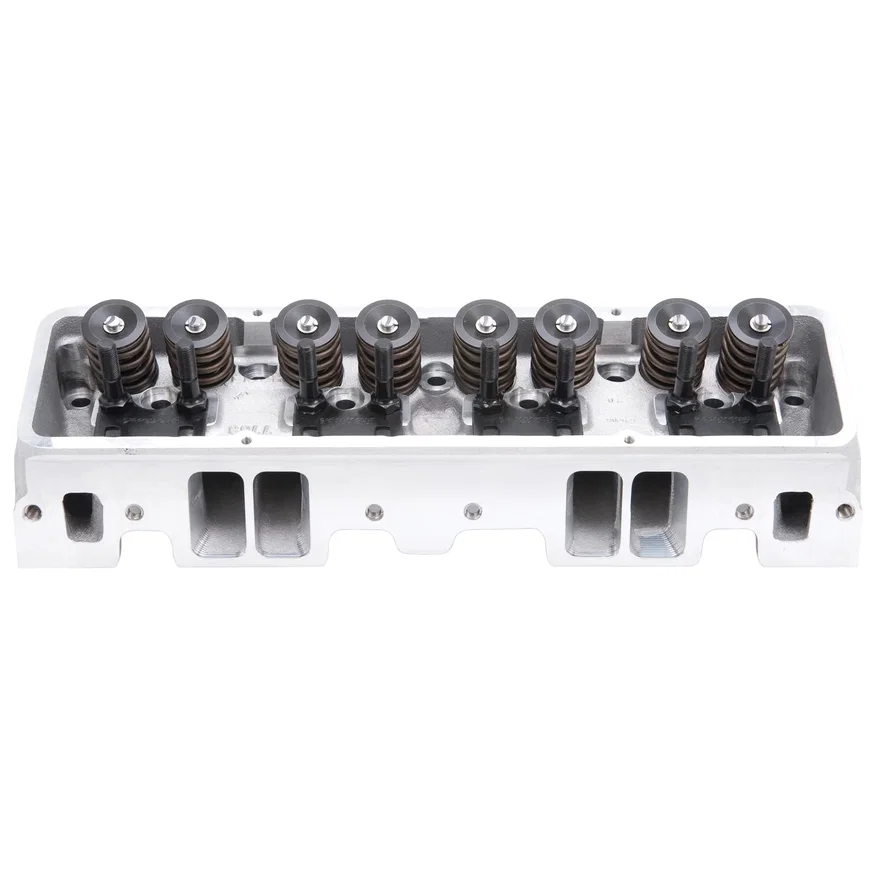

The Edelbrock part #77599 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77599 cylinder head has a 64cc combustion chamber and come with springs for mechanical roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
