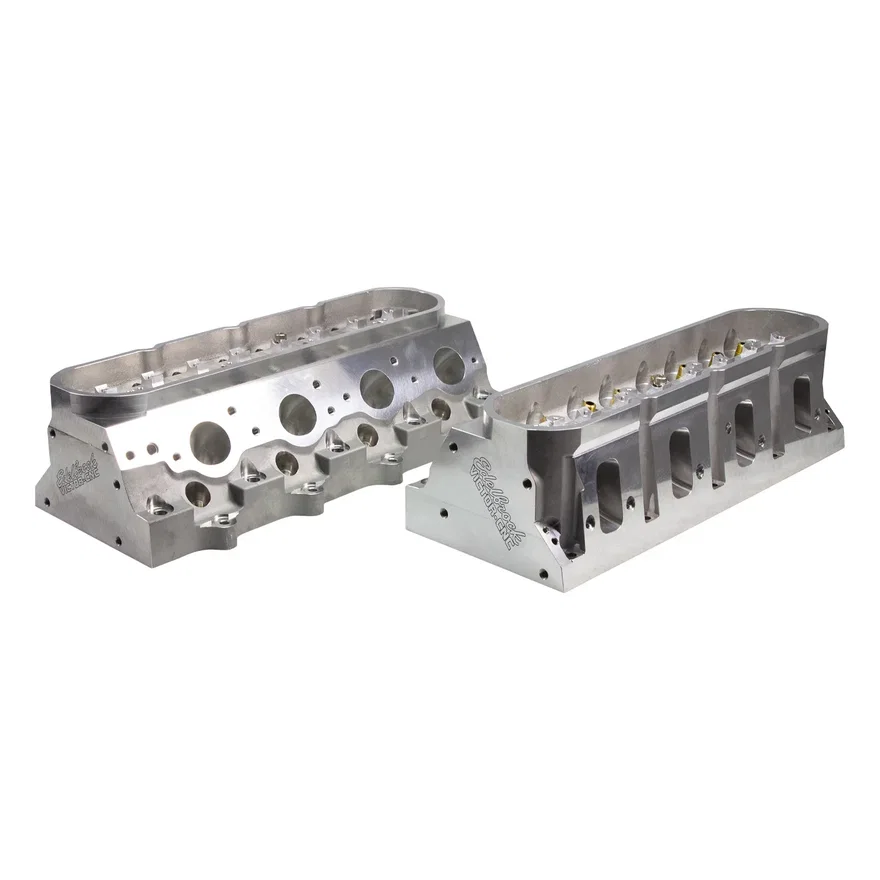

Edelbrock Victor CNC GM LS7 12­­-degree 6-Bolt Cylinder Head, 307cc, .220" Int Port, CI PM Seat

Edelbrock Victor CNC® LS7 Cylinder Heads are one of the first aftermarket high-performance LS-style heads to feature a raised intake runner design that fits both stock and aftermarket LS7 intake manifolds and valvetrain setups. The raised runner and rolled valve angle increase overall flow capability, while an improve d water jacket design improves thermal conductivity. These premium 110 BHN 355-T6 aluminum alloy cylinder heads (#77699) are designed with a 12-degree valve angle and unique 307 cc .220" raised intake runners to provide a better line of sight into the 69 cc chambers and allow for an improved short t urn. The exhaust ports are also raised .100" to allow the use of stock and aftermarket manifolds, while the .400" raised rail works with aftermarket rockers. The 100-percent CNC-ported runners and combustion chambers optimize volume, atomization, and velocity. The 6-bolt design increases clamping ca pacity and greatly improves head gasket retention in high-horsepower and boosted applications in small and large cubic inch, hardcore street applications. It also makes it compatible with the advanced Edelbrock LS Race, GM LSX 6-bolt, and OEM 4-bolt blocks. Built to withstand race conditions, the .750"-thick deck surface and a reinforced solid rocker rail increase integrity, rigidity, and stability. The copper-infused powder metal seats received a 2.200" intake and 1.615" exhaust valve job. The heads are sold bare, but we recommend COMP shaft mount rocker system (#1523CPG), valves, and springs, or if you want to use single rockers like #1479-16, you will need our LS7 rocker stands (#54520-2).
