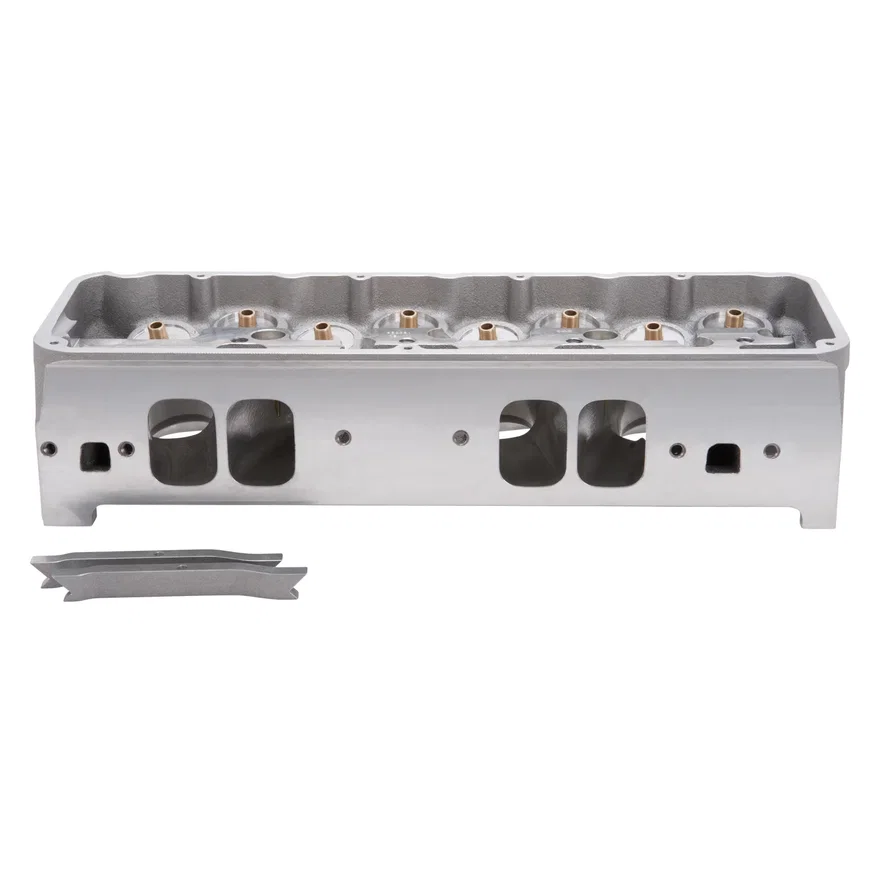

Edelbrock Victor CNC DR-17 Cylinder Heads for Big-Block Chevys, 92CC

Part # 615468SKU EDE615468

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Cylinder Head
CNC PortedYes
Combustion Chamber Volume92.0
Deck Height10.2 in
Grade TypePerformance
Guide Plates IncludedNo
Head Casting Number6143P
Intake Runner Volume425.0
MaterialAluminum
Valve Angle17 deg
UPC / GTIN00085347997947

Description

The Edelbrock 614 Big Block Chevy 24 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.
