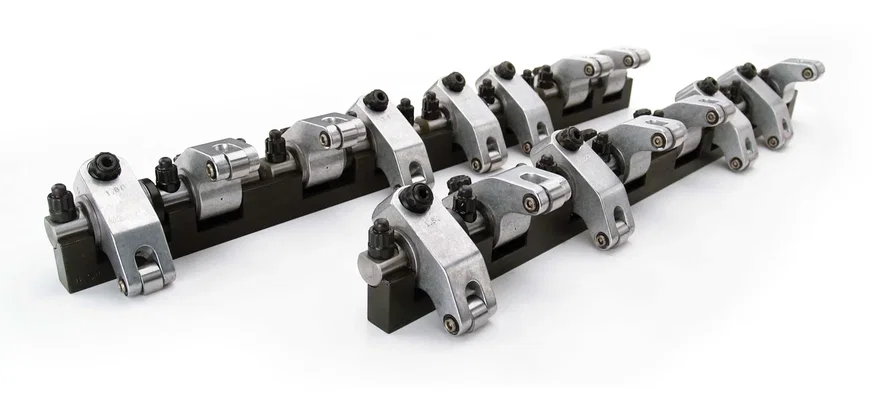

COMP Cams Shaft-Mount Aluminum 1.8 Ratio Rocker Kit for GM LS1, LS2 and LS6
Part # 1501CPGSKU COM1501CPG
Set your vehicle above for a fit verdict. 128 vehicles listed below.
| Brand | COMP Cams |
|---|---|
| Part type | Engine Rocker Arm and Shaft Assembly |
| Amazon ASIN | B001GFW236 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| Engine Family | LS1/LS2/LS6 |
| Exhaust Offset | 0 in |
| Exhaust Rocker Arm Ratio | 1.8 |
| Intake Offset | 0 in |
| Intake Rocker Arm Ratio | 1.8 |
| Rocker Arm Material | 2024 Aluminum |
| Rocker Arm Series | Shaft-Mount Aluminum |
| Rocker Stud Diameter | Shaft |
| UPC / GTIN | 00036584094616 |
Description
Using COMP Shaft Mount Rocker Systems is one of the most effective ways to increase horsepower. These systems transfer power from the Camshaft to the valve by properly positioning the Rocker over the valve. Rather than being mounted on a Stud, a horizontal shaft works as the fulcrum, which significantly increases mounting stiffness and valve train stability. Constructed from high strength 2024 aluminum and using an 8620 hardened Steel shaft, COMP shaft Rockers are designed using the latest in computer Technology and are field tested by experts in every type of racing. Rigidity of the shaft system adds stability to the cylinder head and the valve train. Most efficient way to transfer the power of the Camshaft to the valve. Made from 2024 aluminum and mounted on an 8620 hardened Steel shaft. Designed using the latest in computer Technology. Requires valve cover spacer, baffle removal, or aftermarket valve covers.
More from COMP Cams
| 1981-16 | $1,184.99 |
| 1982-16 | $1,244.99 |
| 1621-16 | $1,496.99 |
| 1513CPG | $4,923.99 |
| 1071-KIT | $2,445.99 |
| 1076-KIT | $2,302.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2008 - 2009 | Buick | Allure | Super | 5.3L 325 V8 |
| 2008 - 2009 | Buick | LaCrosse | Super | 5.3L 325 V8 |
| 2004 - 2005 | Buick | Rainier | CXL, CXL Plus | 5.3L 325 V8 |
| 2006 - 2007 | Buick | Rainier | CXL | 5.3L 325 V8 |
| 2002 - 2005 | Cadillac | Escalade | Base | 5.3L 325 V8 |
| 2009 | Cadillac | Escalade | Hybrid | 6.0L 364 V8 |
| 2010 - 2013 | Cadillac | Escalade | Hybrid, Hybrid Platinum | 6.0L 364 V8 |
| 2007 - 2012 | Chevrolet | Avalanche | LS, LT, LTZ | 5.3L 325 V8 |
| 2013 | Chevrolet | Avalanche | Black Diamond LS, Black Diamond LT, Black Diamond LTZ | 5.3L 325 V8 |
| 2002 | Chevrolet | Avalanche 1500 | Base, North Face, On Road Edition, Z71 | 5.3L 325 V8 |
| 2003 | Chevrolet | Avalanche 1500 | Base, North Face, On Road Edition, WBH, Z71 | 5.3L 325 V8 |
| 2004 | Chevrolet | Avalanche 1500 | Base, Z66, Z71 | 5.3L 325 V8 |
| 2005 | Chevrolet | Avalanche 1500 | Base, LS, LT, Z66, Z71 | 5.3L 325 V8 |
| 2006 | Chevrolet | Avalanche 1500 | LS, LT, Z66, Z71 | 5.3L 325 V8 |
| 2016 | Chevrolet | Cheyenne | Cheyenne | 5.3L 325 V8 |
| 2009 - 2012 | Chevrolet | Colorado | LT | 5.3L 325 V8 |
| 2003 - 2005 | Chevrolet | Express 1500 | Base, LS | 5.3L 325 V8 |
| 2006 - 2007 | Chevrolet | Express 1500 | Base, LS, LT | 5.3L 325 V8 |
| 2003 - 2005 | Chevrolet | Express 2500 | Base, LS | 5.3L 325 V8 |
| 2010 - 2017 | Chevrolet | Express 2500 | Base, LS, LT | 4.8L 294 V8, 6.0L 364 V8 |
| 2018 - 2019 | Chevrolet | Express 2500 | Base, LS, LT | 6.0L 364 V8 |
| 2010 - 2017 | Chevrolet | Express 3500 | Base, LS, LT | 4.8L 294 V8, 6.0L 364 V8 |
| 2018 - 2019 | Chevrolet | Express 3500 | Base, LS, LT | 6.0L 364 V8 |
| 2017 | Chevrolet | Express Cargo | LS | 6.0L 364 V8 |
| 2017 - 2018 | Chevrolet | Express Pasajeros | LS | 6.0L 364 V8 |
| 2006 - 2009 | Chevrolet | Impala | SS | 5.3L 325 V8 |
| 2016 - 2017 | Chevrolet | LCF 3500 | Base | 6.0L 364 V8 |
| 2006 - 2007 | Chevrolet | Monte Carlo | SS | 5.3L 325 V8 |
| 1999 - 2001 | Chevrolet | Silverado 1500 | Base, LS, LT | 5.3L 325 V8 |
| 2002 - 2003 | Chevrolet | Silverado 1500 | Base, LS, LT, WT | 5.3L 325 V8 |
| 2004 | Chevrolet | Silverado 1500 | Base, Hybrid, LS, LT, WT | 5.3L 325 V8 |
| 2005 | Chevrolet | Silverado 1500 | Base, Hybrid, LS, LT | 5.3L 325 V8 |
| 2006 | Chevrolet | Silverado 1500 | Hybrid, LS, LT, WT | 5.3L 325 V8 |
| 2007 - 2008 | Chevrolet | Silverado 1500 | LT, LTZ, WT | 5.3L 325 V8 |
| 2009 | Chevrolet | Silverado 1500 | Hybrid, LT, LTZ, WT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2013 | Chevrolet | Silverado 1500 | Hybrid, LS, LT, LTZ, WT, XFE | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 1500 Classic | Hybrid, LS, LT, WT | 5.3L 325 V8 |
| 1999 - 2000 | Chevrolet | Silverado 2500 | Base, LS, LT | 5.3L 325 V8 |
| 2015 | Chevrolet | Silverado 2500 | LS | 5.3L 325 V8 |
| 2016 | Chevrolet | Silverado 2500 | Base | 5.3L 325 V8 |
| 2010 - 2014 | Chevrolet | Silverado 2500 HD | LT, LTZ, WT | 6.0L 364 V8 |
| 2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country, LT, LTZ, WT | 6.0L 364 V8 |
| 2017 - 2018 | Chevrolet | Silverado 3500 | Base | 6.0L 364 V8 |
| 2010 - 2014 | Chevrolet | Silverado 3500 HD | LT, LTZ, WT | 6.0L 364 V8 |
| 2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country, LT, LTZ, WT | 6.0L 364 V8 |
| 2003 - 2004 | Chevrolet | SSR | Base | 5.3L 325 V8 |
| 2015 | Chevrolet | Suburban | LT, LTZ | 5.3L 325 V8 |
| 2017 - 2018 | Chevrolet | Suburban | HD | 6.0L 364 V8 |
| 2000 - 2001 | Chevrolet | Suburban 1500 | Base, LS, LT | 5.3L 325 V8 |
| 2002 - 2003 | Chevrolet | Suburban 1500 | LS, LT | 5.3L 325 V8 |
| 2004 - 2005 | Chevrolet | Suburban 1500 | LS, LT, Z71 | 5.3L 325 V8 |
| 2006 | Chevrolet | Suburban 1500 | Base, LS, LT, Z71 | 5.3L 325 V8 |
| 2007 - 2014 | Chevrolet | Suburban 1500 | LS, LT, LTZ | 5.3L 325 V8 |
| 2010 - 2013 | Chevrolet | Suburban 2500 | LS, LT | 6.0L 364 V8 |
| 2016 - 2019 | Chevrolet | Suburban 3500 HD | LS, LT | 6.0L 364 V8 |
| 2000 - 2001 | Chevrolet | Tahoe | Base, LS, LT | 5.3L 325 V8 |
| 2002 | Chevrolet | Tahoe | LS, LT | 5.3L 325 V8 |
| 2003 - 2005 | Chevrolet | Tahoe | LS, LT, Z71 | 5.3L 325 V8 |
| 2006 | Chevrolet | Tahoe | Base, LS, LT, Z71 | 5.3L 325 V8 |
| 2007 | Chevrolet | Tahoe | LS, LT, LTZ | 5.3L 325 V8 |
| 2008 - 2010 | Chevrolet | Tahoe | Hybrid, LS, LT, LTZ | 5.3L 325 V8, 6.0L 364 V8 |
| 2011 | Chevrolet | Tahoe | Base, Hybrid, LS, LT, LTZ | 5.3L 325 V8, 6.0L 364 V8 |
| 2012 | Chevrolet | Tahoe | Base, Hybrid, LS, LT, LTZ, PPV, SSV | 5.3L 325 V8, 6.0L 364 V8 |
| 2013 | Chevrolet | Tahoe | Hybrid, LS, LT, LTZ, PPV, SSV | 5.3L 325 V8, 6.0L 364 V8 |
| 2014 | Chevrolet | Tahoe | LS, LT, LTZ, PPV, SSV | 5.3L 325 V8 |
| 2006 - 2007 | Chevrolet | Trailblazer | LS, LT | 5.3L 325 V8 |
| 2008 | Chevrolet | Trailblazer | Base, LT | 5.3L 325 V8 |
| 2003 - 2004 | Chevrolet | Trailblazer EXT | LS, LT, North Face | 5.3L 325 V8 |
| 2005 - 2006 | Chevrolet | Trailblazer EXT | LS, LT | 5.3L 325 V8 |
| 2009 - 2012 | GMC | Canyon | SLE, SLT | 5.3L 325 V8 |
| 2005 - 2009 | GMC | Envoy | Denali | 5.3L 325 V8 |
| 2003 - 2004 | GMC | Envoy XL | SLE, SLT | 5.3L 325 V8 |
| 2005 | GMC | Envoy XL | Denali, SLE, SLT | 5.3L 325 V8 |
| 2006 | GMC | Envoy XL | Denali | 5.3L 325 V8 |
| 2004 - 2005 | GMC | Envoy XUV | SLE, SLT | 5.3L 325 V8 |
| 2003 - 2005 | GMC | Savana 1500 | Base, SLE | 5.3L 325 V8 |
| 2006 - 2007 | GMC | Savana 1500 | Base, LS, LT | 5.3L 325 V8 |
| 2003 - 2005 | GMC | Savana 2500 | Base, SLE | 5.3L 325 V8 |
| 2010 | GMC | Savana 2500 | Base, LS, LT, SL, SLE | 4.8L 294 V8, 6.0L 364 V8 |
| 2011 | GMC | Savana 2500 | Base, LS, LT | 4.8L 294 V8, 6.0L 364 V8 |
| 2012 - 2013 | GMC | Savana 2500 | Base, LS, LT, SL, SLE | 4.8L 294 V8, 6.0L 364 V8 |
| 2014 - 2017 | GMC | Savana 2500 | Base, LS, LT | 4.8L 294 V8, 6.0L 364 V8 |
| 2018 - 2019 | GMC | Savana 2500 | Base, LS, LT | 6.0L 364 V8 |
| 2010 | GMC | Savana 3500 | Base, LS, LT, SL, SLE | 4.8L 294 V8, 6.0L 364 V8 |
| 2011 | GMC | Savana 3500 | Base, LS, LT | 4.8L 294 V8, 6.0L 364 V8 |
| 2012 - 2013 | GMC | Savana 3500 | Base, LS, LT, SL, SLE | 4.8L 294 V8, 6.0L 364 V8 |
| 2014 - 2017 | GMC | Savana 3500 | Base, LS, LT | 4.8L 294 V8, 6.0L 364 V8 |
| 2018 - 2019 | GMC | Savana 3500 | Base, LS, LT | 6.0L 364 V8 |
| 1999 - 2001 | GMC | Sierra 1500 | SL, SLE, SLT | 5.3L 325 V8 |
| 2002 | GMC | Sierra 1500 | Base, HT, SL, SLE, SLT, WT | 5.3L 325 V8 |
| 2003 | GMC | Sierra 1500 | Base, SL, SLE, SLT, WT | 5.3L 325 V8 |
| 2004 | GMC | Sierra 1500 | Base, SLE, SLT, WT | 5.3L 325 V8 |
| 2005 | GMC | Sierra 1500 | Base, Hybrid, SLE, SLT, WT | 5.3L 325 V8 |
| 2006 | GMC | Sierra 1500 | Hybrid, SL, SLE, SLT, WT | 5.3L 325 V8 |
| 2007 - 2008 | GMC | Sierra 1500 | SLE, SLT, WT | 5.3L 325 V8 |
| 2009 | GMC | Sierra 1500 | Hybrid, SLE, SLT, WT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2013 | GMC | Sierra 1500 | Hybrid, SL, SLE, SLT, WT, XFE | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 | GMC | Sierra 1500 Classic | Hybrid, SL, SLE, SLT, WT | 5.3L 325 V8 |
| 1999 - 2000 | GMC | Sierra 2500 | SL, SLE, SLT | 5.3L 325 V8 |
| 2010 | GMC | Sierra 2500 HD | SLE, SLT, WT | 6.0L 364 V8 |
| 2011 - 2014 | GMC | Sierra 2500 HD | Denali, SLE, SLT, WT | 6.0L 364 V8 |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base, Denali, SLE, SLT | 6.0L 364 V8 |
| 2010 | GMC | Sierra 3500 HD | SLE, SLT, WT | 6.0L 364 V8 |
| 2011 - 2014 | GMC | Sierra 3500 HD | Denali, SLE, SLT, WT | 6.0L 364 V8 |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base, Denali, SLE, SLT | 6.0L 364 V8 |
| 2000 - 2005 | GMC | Yukon | SLE, SLT | 5.3L 325 V8 |
| 2006 | GMC | Yukon | SL, SLE, SLT | 5.3L 325 V8 |
| 2007 | GMC | Yukon | SLE, SLT | 5.3L 325 V8 |
| 2008 - 2009 | GMC | Yukon | Hybrid, SLE, SLT | 5.3L 325 V8, 6.0L 364 V8 |
| 2010 - 2013 | GMC | Yukon | Denali Hybrid, Hybrid, SLE, SLT | 5.3L 325 V8, 6.0L 364 V8 |
| 2014 | GMC | Yukon | SLE, SLT | 5.3L 325 V8 |
| 2000 - 2005 | GMC | Yukon XL 1500 | SLE, SLT | 5.3L 325 V8 |
| 2006 | GMC | Yukon XL 1500 | SL, SLE, SLT | 5.3L 325 V8 |
| 2007 - 2014 | GMC | Yukon XL 1500 | SLE, SLT | 5.3L 325 V8 |
| 2010 - 2013 | GMC | Yukon XL 2500 | SLE, SLT | 6.0L 364 V8 |
| 2004 | Hummer | H2 | Base | 6.0L 364 V8 |
| 2007 | Hummer | H2 | Base | 6.0L 364 V8 |
| 2008 | Hummer | H3 | Alpha | 5.3L 325 V8 |
| 2009 | Hummer | H3 | Alpha, Championship Series | 5.3L 325 V8 |
| 2010 | Hummer | H3 | Alpha | 5.3L 325 V8 |
| 2009 - 2010 | Hummer | H3T | Alpha | 5.3L 325 V8 |
| 2003 | Isuzu | Ascender | Base, LS, Limited | 5.3L 325 V8 |
| 2004 | Isuzu | Ascender | LS, Limited | 5.3L 325 V8 |
| 2005 | Isuzu | Ascender | LS, Limited, S | 5.3L 325 V8 |
| 2006 | Isuzu | Ascender | LS | 5.3L 325 V8 |
| 2005 - 2008 | Pontiac | Grand Prix | GXP | 5.3L 325 V8 |
| 2005 | Saab | 9-7x | Arc | 5.3L 325 V8 |
| 2006 - 2009 | Saab | 9-7x | 5.3i | 5.3L 325 V8 |
