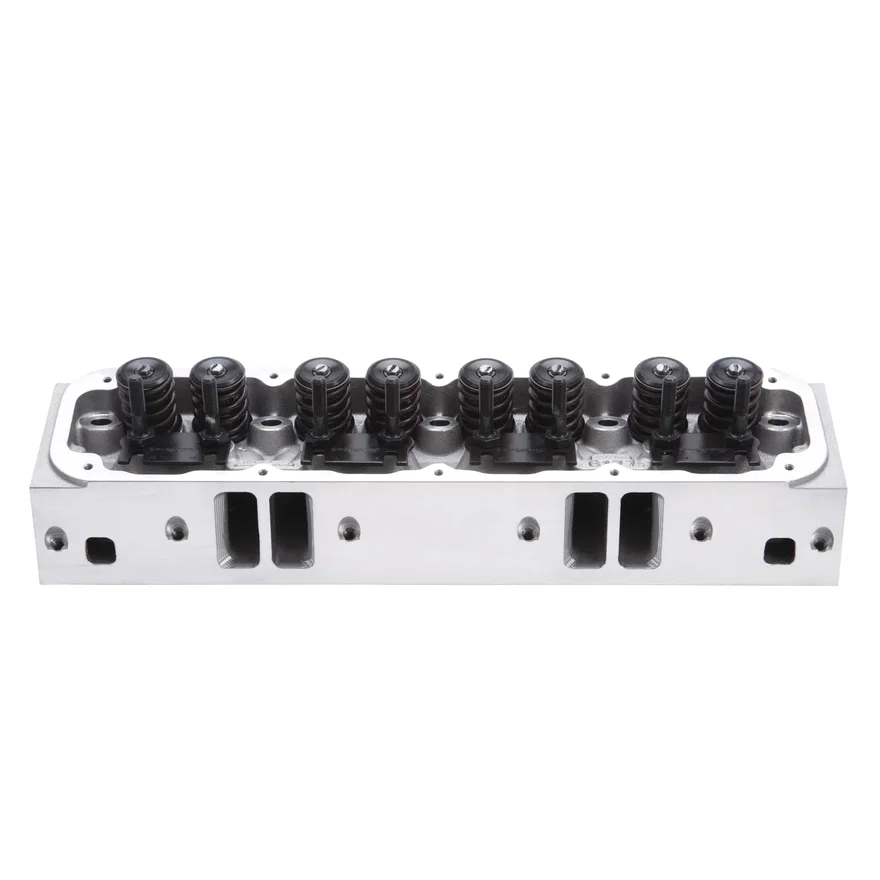

Edelbrock RPM Small-Block Chrysler Magnum Cylinder Head Hydraulic Roller Cam for Dodge
Part # 61775SKU EDE61775
Set your vehicle above for a fit verdict. 29 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | Yes |
| Camshaft Type | Hydraulic Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 58 |
| Construction Type | Complete |
| Cylinder Head Gasket Included | No |
| Deck Height | 9.6 in |
| Deck Thickness | 0.625 in |
| EGR Port | No |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 75 |
| Exhaust Valve Diameter | 1.60 in |
| Family | Performer RPM |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Chromoly Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 31-6177 |
| Horsepower | 350-500 |
| Intake Runner Volume | 176 cc |
| Intake Valve Diameter | 2.02 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Push Rod Diameter | (Suggested) 0.3125 in |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Rocker Arm Stud Diameter | 0.375 in |
| Rocker Arm Studs/Bolts Included | Yes |
| Rocker Arms Included | No |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| UPC / GTIN | 00085347617753 |
Description
The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
More from Edelbrock
| 60455 | $2,206.99 |
| 77621 | $2,581.99 |
| 60069 | $1,777.99 |
| 5089 | $2,579.99 |
| 61555 | $2,926.99 |
| 77620 | $2,366.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1992 - 1994 | Dodge | B150 | 5.2L 318 V8 |
| 1995 - 1997 | Dodge | B1500 | 5.2L 318 V8 |
| 1998 | Dodge | B1500 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1994 | Dodge | B250 | 5.2L 318 V8, 5.9L 360 V8 |
| 1995 - 1998 | Dodge | B2500 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1994 | Dodge | B350 | 5.2L 318 V8, 5.9L 360 V8 |
| 1995 - 1998 | Dodge | B3500 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 | Dodge | D150 | 5.2L 318 V8 |
| 1993 | Dodge | D150 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1993 | Dodge | D250 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1993 | Dodge | D350 | 5.9L 360 V8 |
| 1992 - 1997 | Dodge | Dakota | 5.2L 318 V8 |
| 1998 - 1999 | Dodge | Dakota | 5.2L 318 V8, 5.9L 360 V8 |
| 2000 - 2003 | Dodge | Dakota | 5.9L 360 V8 |
| 1998 - 2000 | Dodge | Durango | 5.2L 318 V8, 5.9L 360 V8 |
| 2001 - 2003 | Dodge | Durango | 5.9L 360 V8 |
| 1994 - 2001 | Dodge | Ram 1500 | 5.2L 318 V8, 5.9L 360 V8 |
| 2002 - 2003 | Dodge | Ram 1500 | 5.9L 360 V8 |
| 1999 - 2003 | Dodge | Ram 1500 Van | 5.2L 318 V8, 5.9L 360 V8 |
| 1994 - 1996 | Dodge | Ram 2500 | 5.2L 318 V8, 5.9L 360 V8 |
| 1997 - 2002 | Dodge | Ram 2500 | 5.9L 360 V8 |
| 1999 - 2003 | Dodge | Ram 2500 Van | 5.2L 318 V8, 5.9L 360 V8 |
| 1994 - 2002 | Dodge | Ram 3500 | 5.9L 360 V8 |
| 1999 - 2003 | Dodge | Ram 3500 Van | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1993 | Dodge | Ramcharger | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 | Dodge | W150 | 5.2L 318 V8 |
| 1993 | Dodge | W150 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1993 | Dodge | W250 | 5.2L 318 V8, 5.9L 360 V8 |
| 1992 - 1993 | Dodge | W350 | 5.9L 360 V8 |
