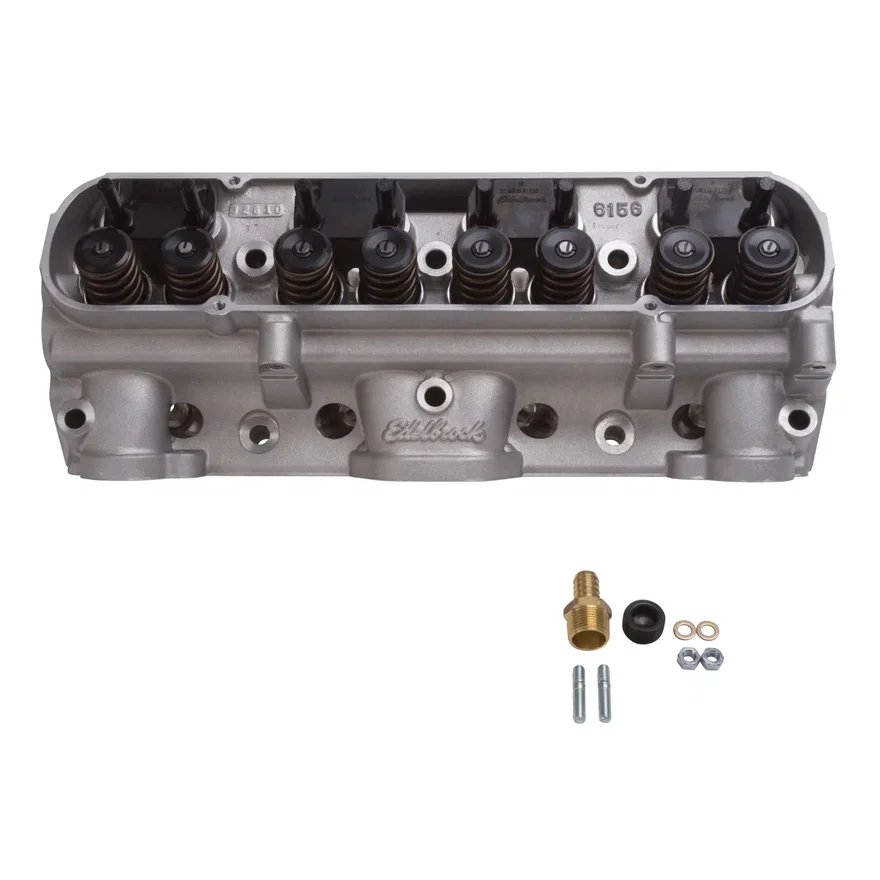

Edelbrock RPM CNC Pontiac D-Port Cylinder Head 72cc Hydraulic Flat Tappet Cam

Part # 61599SKU EDE61599

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Cylinder Head
AssembledYes
Camshaft TypeFlat Tappet
CNC PortedYes
Combustion Chamber Volume72 cc
Construction TypeComplete
Cylinder Head Gasket IncludedNo
Deck Height10.25 in
Deck Thickness0.625 in
EGR PortYes
Exhaust Port LocationStandard
Exhaust Runner Volume145
Exhaust Valve Diameter1.66 in
FamilyPerformer
Grade TypePerformance
Guide MaterialManganese Bronze
Guide Plate MaterialChromoly Steel
Guide Plates IncludedYes
Head Casting Number31-6156
Horsepower400-500
Intake Runner Volume204 cc
Intake Valve Diameter2.11 in
MaterialAluminum
Mounting Hardware IncludedNo
Push Rod Diameter(Suggested) 0.3125 in
QuantitySold Individually
Retainer IncludedYes
Rocker Arm Stud Diameter0.4375 in
Rocker Arm Studs/Bolts IncludedYes
Rocker Arms IncludedNo
Seat AngleExhaust 45 deg/Intake 45 deg
UPC / GTIN00085347615995

Description

The Edelbrock #61599 Performer Pontiac Cylinder Head utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. This head is cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
