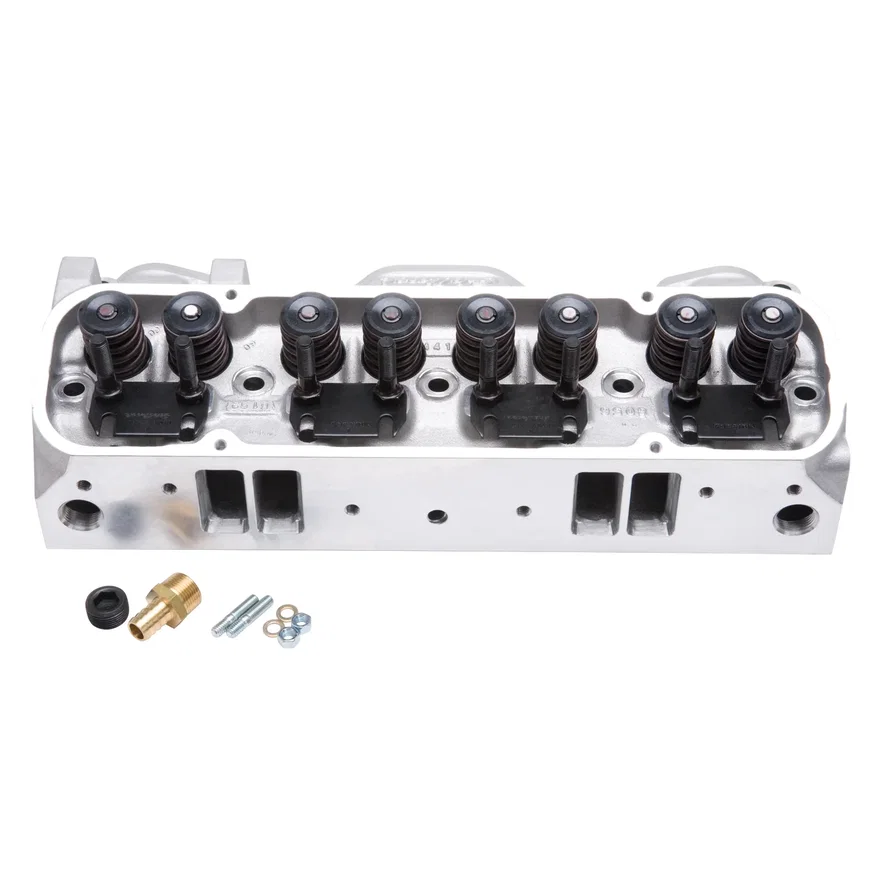

Edelbrock RPM CNC Pontiac Cylinder Head 87cc Hydraulic Flat Tappet Camshaft
Part # 61529SKU EDE61529
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Engine Cylinder Head |
| Assembled | Yes |
| Camshaft Type | Flat Tappet |
| CNC Ported | Yes |
| Combustion Chamber Volume | 87 cc |
| Construction Type | Complete |
| Cylinder Head Gasket Included | No |
| Deck Height | 10.25 in |
| Deck Thickness | 0.625 in |
| EGR Port | Yes |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 175 |
| Exhaust Valve Diameter | 1.66 in |
| Family | Performer RPM |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 31-6152 |
| Horsepower | 450-600 |
| Intake Runner Volume | 215 cc |
| Intake Valve Diameter | 2.11 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Push Rod Diameter | (Suggested) 0.3125 in |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Rocker Arm Stud Diameter | 0.4375 in |
| Rocker Arm Studs/Bolts Included | Yes |
| Rocker Arms Included | No |
| Seat Angle | Exhaust 45 deg/Intake 45 deg |
| UPC / GTIN | 00085347615292 |
Description
The Edelbrock #61529 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #61529 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
