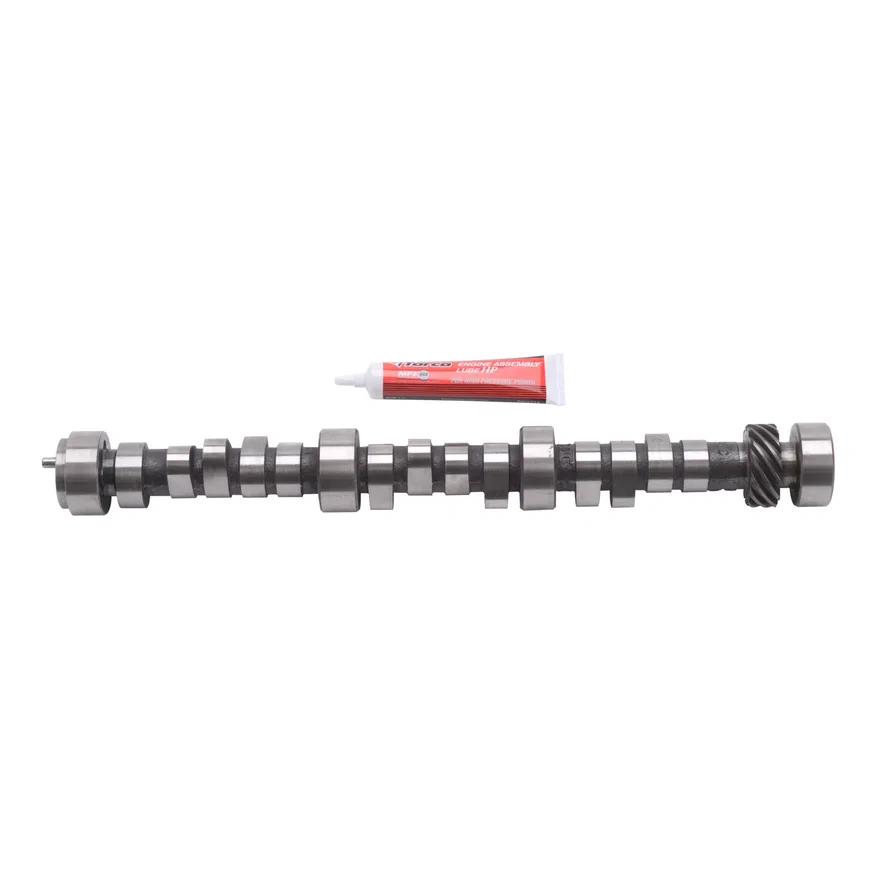

Edelbrock Rollin’ Thunder Camshaft for Chevy 4.3L 90° V6

Part # 3714SKU EDE3714

Universal fit

Specifications
BrandEdelbrock
Part typeEngine Camshaft
Advertised Exhaust Duration276 deg
Advertised Intake Duration272 deg
Cam TypeRoller
Computer Controlled CompatibleNo
Exhaust Duration at .050 inch Lift214 deg
Exhaust Valve Lift0.325 in
Exhaust Valve Lift with Factory Rocker Arm Ratio0.488 in
Intake Duration at .050 Inch Lift210 deg
Intake Valve Lift0.319 in
Intake Valve Lift with Factory Rocker Arm Ratio0.479 in
Lifter TypeRoller
Lobe Separation112 deg
UPC / GTIN00085347037148

Description

Edelbrock Rollin' Thunder Camshaft #3714 is designed for 4.3L 90 Degree V6 Chevy engines and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. For use with OEM hydraulic roller lifters (use original lifters). Not for 1992-Later 4.3L balanced shaft engines. Requires aftermarket computer chip (not available from Edelbrock) for use with intake manifold #3713. Call Edelbrock Tech 800-416-8628 for info. Camshaft specifications: - Intake duration: 210 Degrees - Exhaust duration: 214 Degrees - Intake lift: .479" - Exhaust lift: .488" - Lobe separation: 112 Degree - Intake Center Line: 107 - Vacuum: 17"
